Block & Attribute Builder Pro

Block & Attribute Builder Pro — AutoLISP + DCL

Create reusable AutoCAD blocks with custom attributes through a convenient dialog interface. Turn selected drawing objects into named blocks, define their information fields, and insert them with custom values.

Useful for door tags, equipment labels, drawing symbols, and other blocks that combine geometry with project information.

Features

• Create Custom Blocks: Choose a block name, pick a base point, and select geometry to copy into the definition.
• Define Attributes: Enter unique tags, prompts, default values, text heights, and placement offsets.
• Invisible Attributes: Store information without displaying it under normal attribute visibility settings.
• Constant Attributes: Assign fixed values shared by every insertion.
• Manage Definitions: Add, update, remove, and reorder pending attributes.
• Custom Insertion Values: Enter values for editable attributes before placing a block.
• Scale & Rotation Controls: Set a positive uniform scale and rotation angle.
• Retain Original Geometry: Keep your source objects while creating the new block.

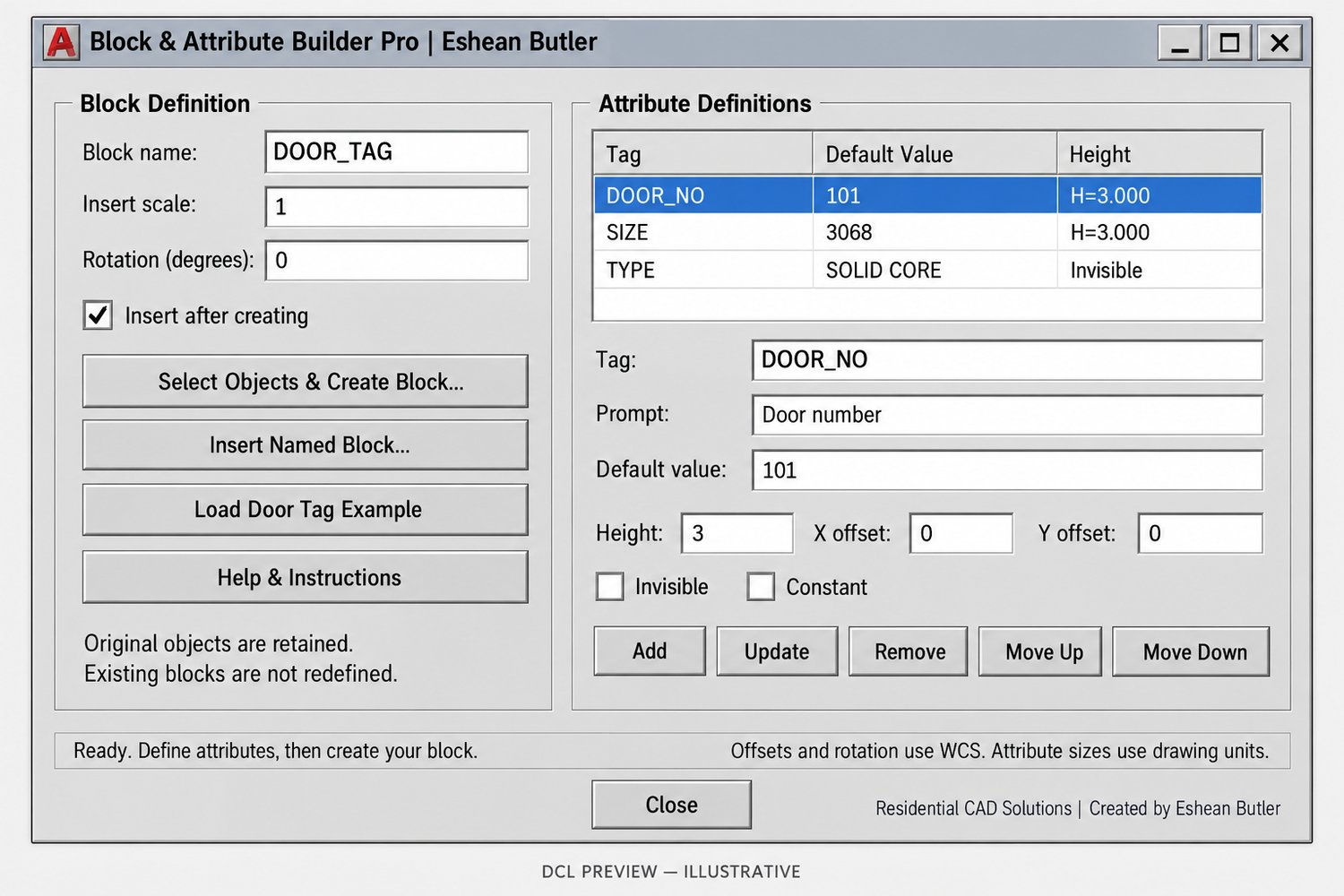

• Door Tag Example: Start with sample door number, size, and type attributes.

Your Download Includes

• AutoLISP program (.LSP)
• Matching DCL interface (.DCL)
• Installation instructions and operating guide
• ZIP package

Getting Started

Load the LISP using APPLOAD, then type BLOCKATTRPRO. Created blocks are saved with your drawing. Use AutoCAD’s WBLOCK command to export a block into a separate DWG file.

Requirements & Important Details

Requires full Windows AutoCAD with Visual LISP, DCL, and ActiveX support. This package does not support AutoCAD LT, Mac, or web versions.

Designed for static blocks and single-line attributes. Attribute dimensions use drawing units; placement offsets and rotation use WCS. Existing blocks are not redefined. Pending attribute definitions remain in memory for the current session.

Source structure and dialog checks have passed. AutoCAD runtime testing is still pending.

Created by Eshean Butler

Residential CAD Solutions
