The Gail Cottage House Plan: 800 Sq Ft, 1 Bed/1 Bath PDF Blueprints (DIY Builders)

The Gail Cottage House Plan – 1 Bed / 1 Bath | 800 Sq Ft

Instant PDF Download – Full Construction Blueprints

Looking for a cozy, functional home design perfect for a guest house, downsizing, or a peaceful retreat?

The Gail Plan is a charming, craftsman-style 1-bedroom, 1-bath cottage with vaulted ceilings, an open living space, and front porch charm – designed by a 40-year residential design veteran.

Perfect for:

--DIY builders

--Vacation homes or Airbnb rentals

--Aging-in-place designs

--In-law cottages or tiny homes with real comfort

✅ What's Included in the Download:

Full construction documents in PDF format—ready to print on 24"x36" paper or scale down to 18"x24" or 11"x17".

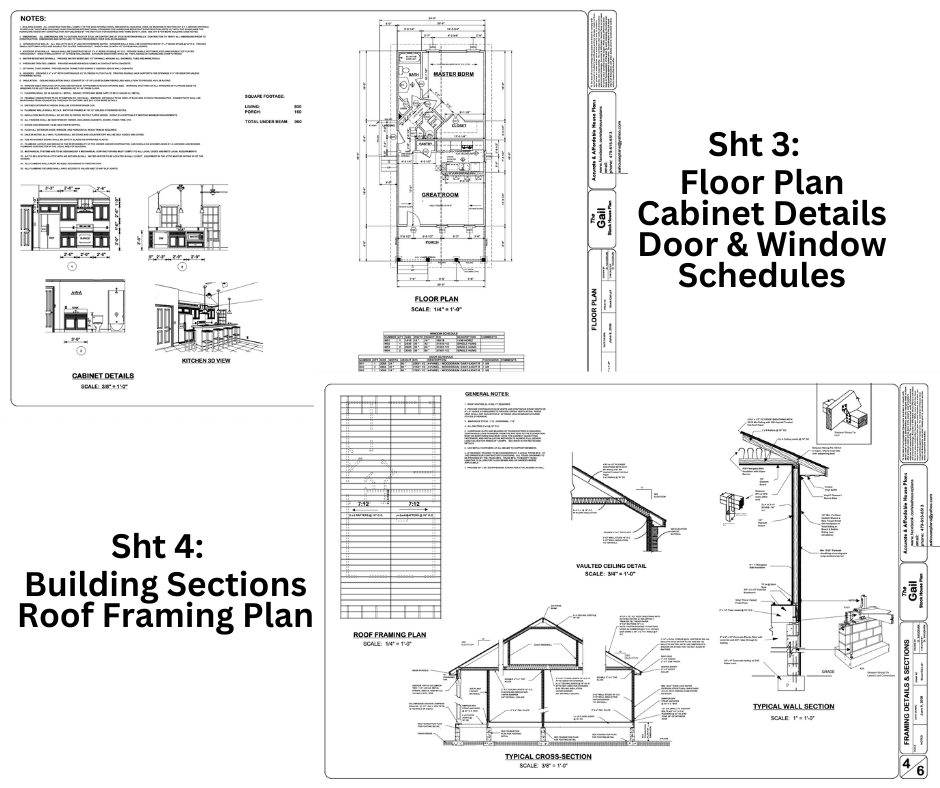

Detailed Sheets Include:

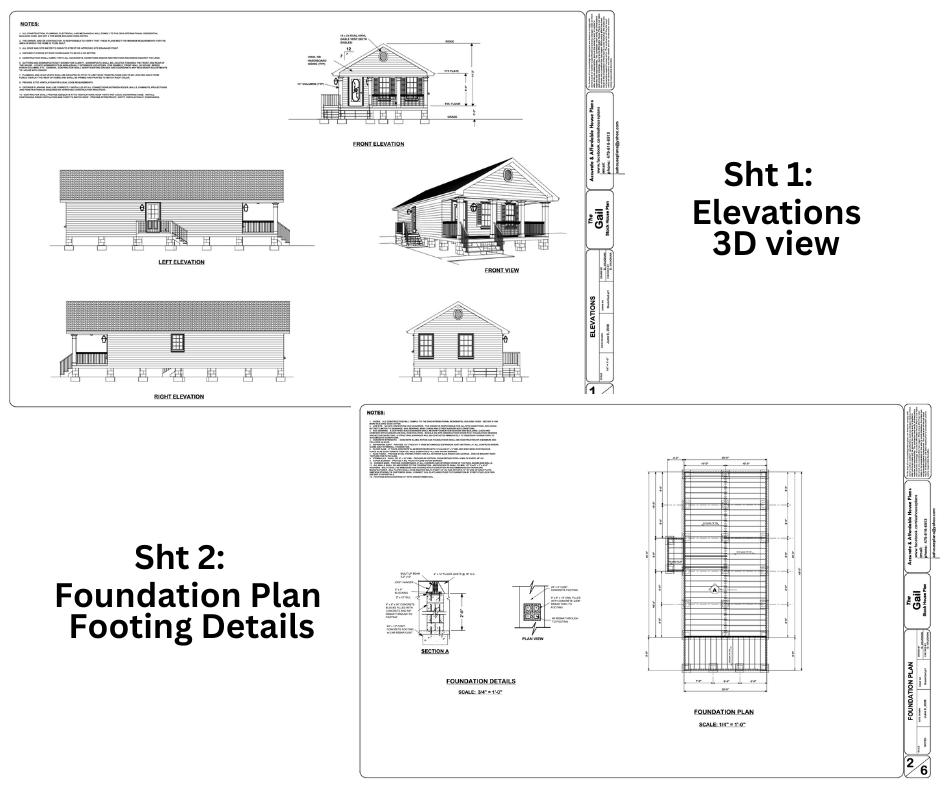

--Front, Rear & Side Elevations

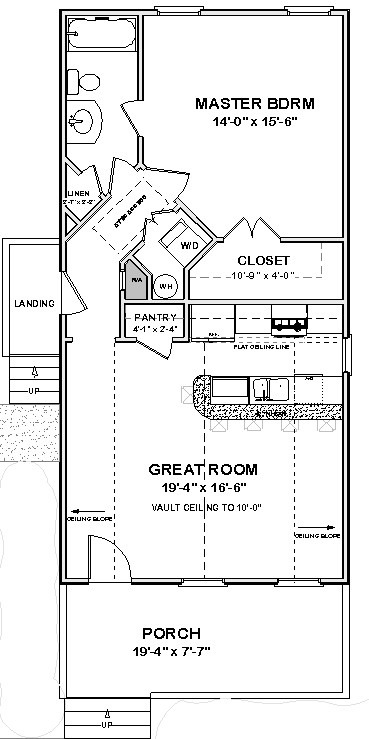

--Floor Plan

--Foundation Plan (Pier & Beam)

--Roof Framing Plan

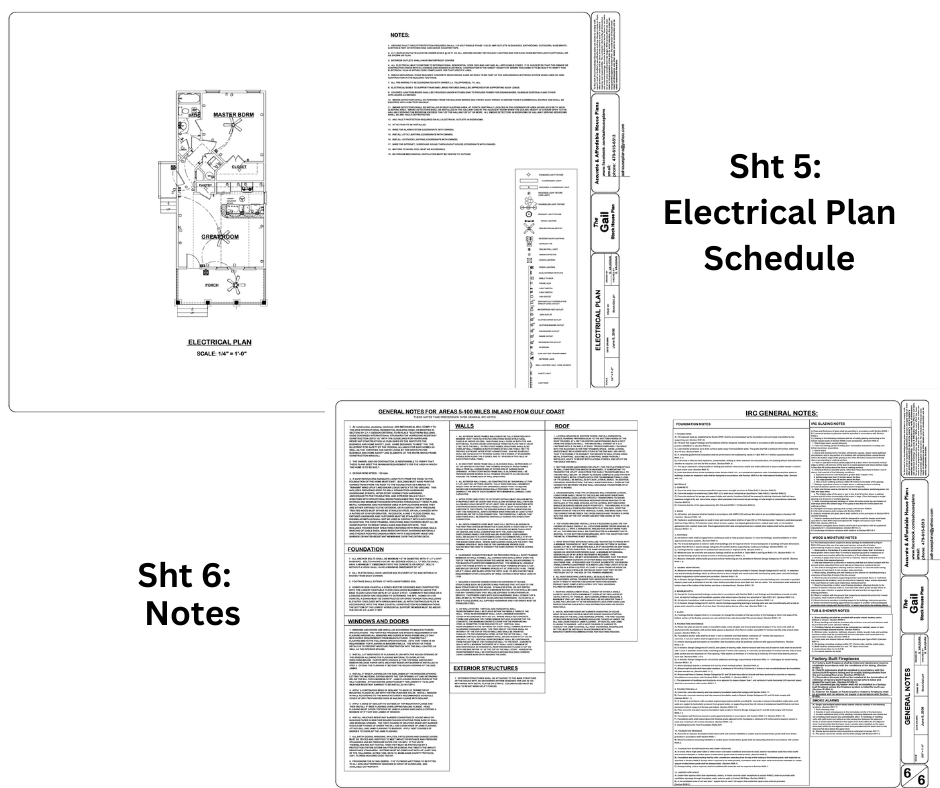

--Electrical Layout

--Door & Window Schedules

--Cabinet Details

--Wall Section, Cross Section

--Footing & Framing Details

--IRC & Wind Load Notes (120mph)

May also include 3D views, ceiling details & more

Dimensions & Specs:

--Heated Living Area: 800 sq ft

--Porch: 160 sq ft

--Total Under Roof: 960 sq ft

--Width: 20’ (plus 4’ side deck)

--Depth: 48’

Ceilings: 8’ in bath, vaulted to 10’ in great room

Roof Pitch: 7:12

Foundation: Pier and Beam

Siding Options: Hardiplank or Vinyl

PDF Format – scalable, printable, sharable

Why Choose a PDF Plan?

--Instant delivery — no waiting or shipping

--Print as many copies as you need, in the size you want

--Share directly with your builder, permit office, or subcontractors

--Save time, money, and shipping costs

Important Notes:

--This is a digital product – no physical blueprints will be shipped

--Copyrighted: Not for resale or redistribution

--No refunds/exchanges on digital downloads

--No architectural/engineering stamp, site plan, plumbing or HVAC drawings included

--No changes included with this plan

--Designed with care and precision by a professional with 40+ years in residential design, The Gail Cottage is a customer-favorite for its simplicity, charm, and flexibility.
