Flame Ionization Detector (FID) Diagram – Chemistry Lab Illustration (PDF)

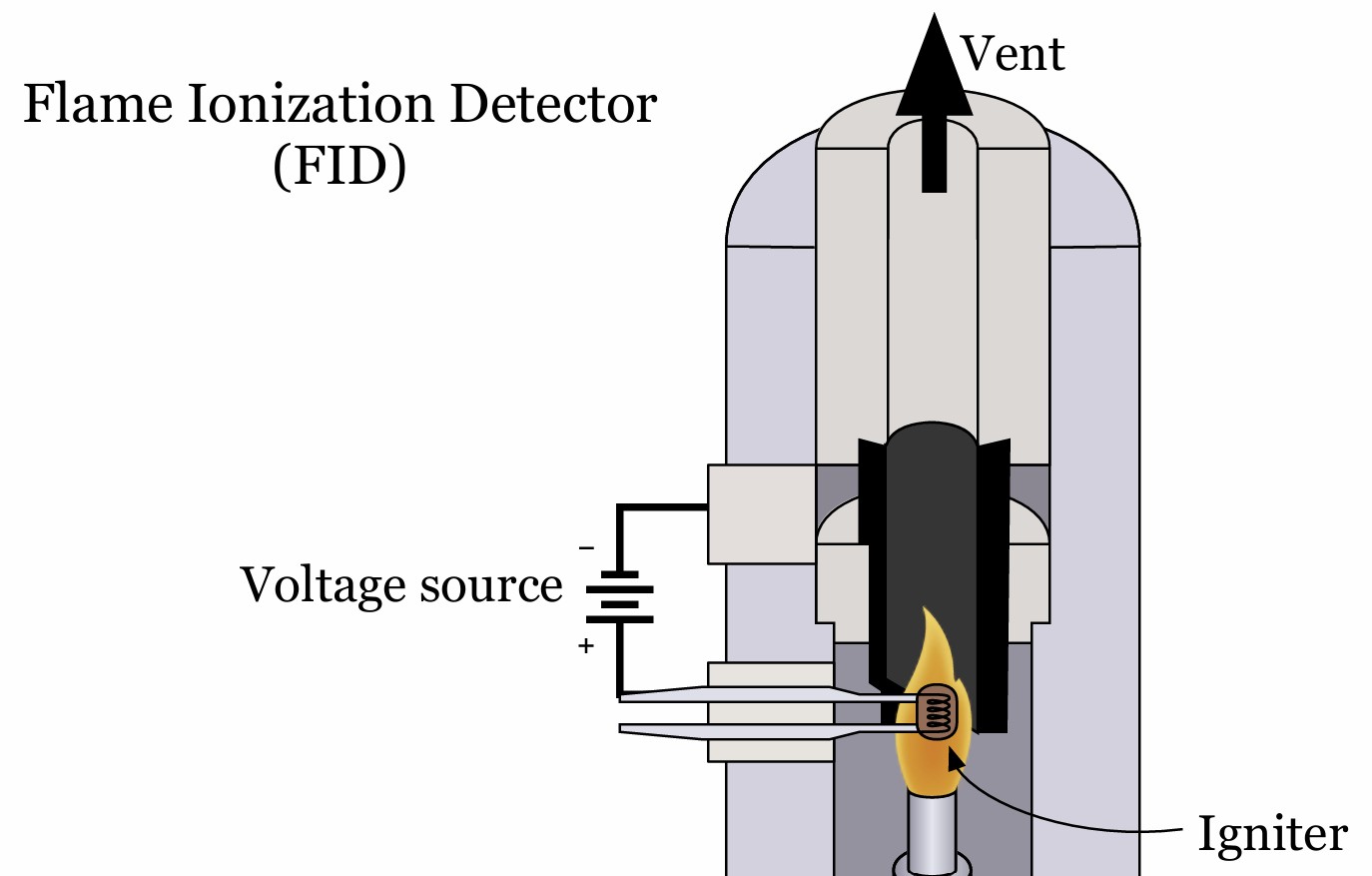

This digital illustration outlines the basic structure of an FID setup, including voltage source, hydrogen column, igniter, sample inlet, and airflow. Designed for educational or reference use in chemistry labs, coursework, or presentations. Provided as a high-resolution PDF ready for print or digital annotation.
