Beam/Post Gusset Detail Manager Pro

Create professional beam-to-post gusset connection details in AutoCAD without redrawing the same geometry for every project.

Beam/Post Gusset Detail Manager Pro combines an AutoLISP drawing engine with a polished DCL interface for fast, consistent connection-detail drafting. Enter your member dimensions, select the gusset configuration and fasteners, then place and rotate the completed detail directly in your drawing.

Features include:

• Adjustable beam length and depth
• Adjustable post width and displayed height
• Left-side, right-side, or both-side gussets
• Adjustable triangular gusset reach and drop
• 2×4 wood, plywood, and custom gusset-material options
• Through-bolt, lag-screw, structural-screw, and custom fastener options
• Adjustable fastener quantity and symbol diameter
• Optional beam and post centerlines
• Optional beam, post, and gusset labels
• Automatic construction and coordination notes
• Dedicated detail and centerline layers
• Two-point insertion and rotation
• Inches or feet drawing-unit support
• AutoCAD setting restoration after cancellation or errors
• Compatible with full AutoCAD 2002 and later

Your download includes:

• AutoLISP program
• DCL dialog interface
• Installation instructions
• Command reference
• Commercial license
• Changelog
• Source-code backups

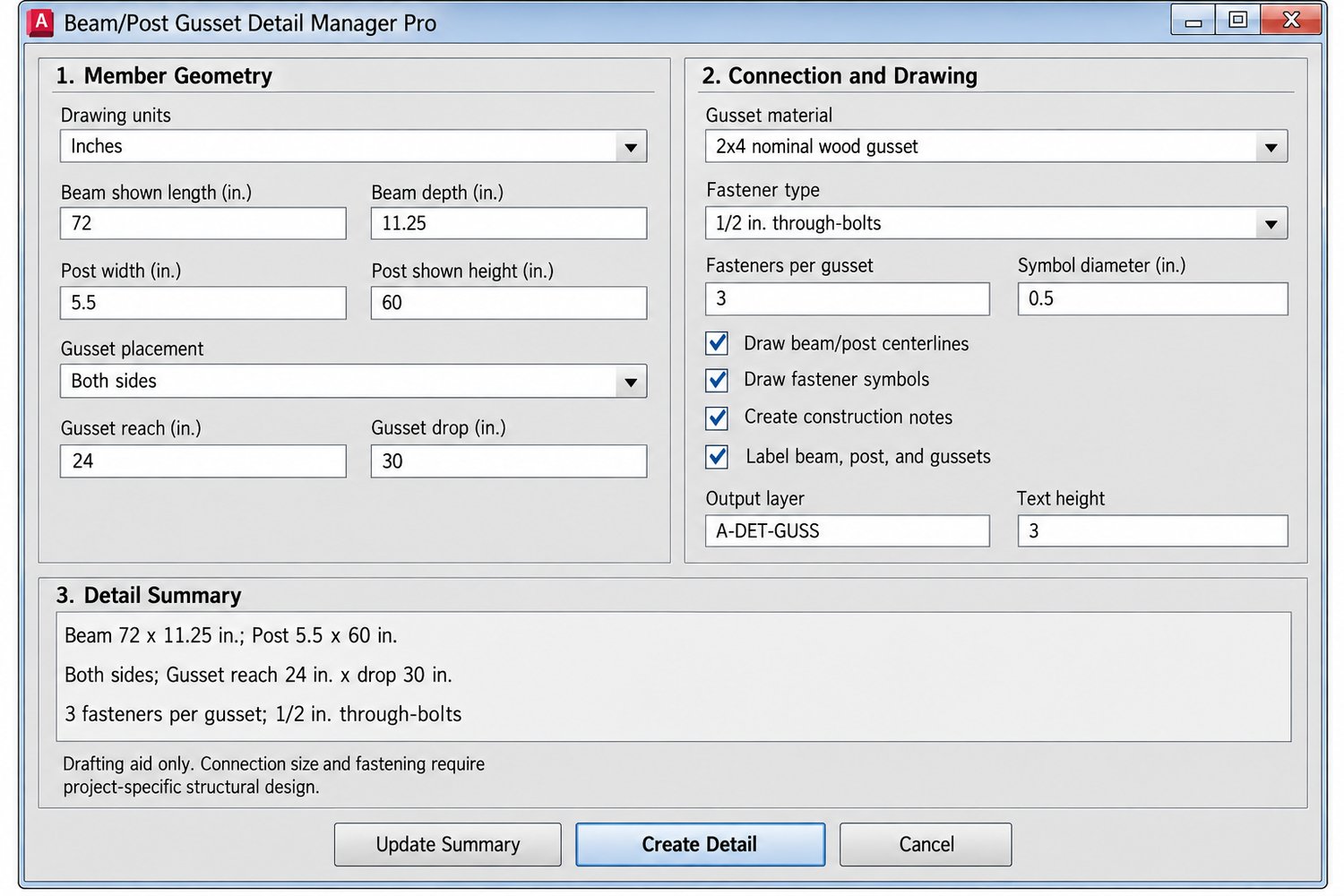

• Product cover and dialog preview

Commands: BEAMPOSTGUSSET or BPG

Important: This software is a drafting aid and does not perform structural engineering. Users must verify member sizes, loads, fastener capacities, spacing, edge distances, materials, project specifications, adopted building codes, and local requirements with a qualified professional.
