On this page, I share the complete documentation of my builds. Since it takes time to create detailed 3D models and quality documentation, the files are available for a small fee — they save you hours of planning and help support my future projects.
DIY gym bench - 3D model, dimensions, technical drawings
On Sale
€999.99
Adjustable Gym Bench Project Files
This is the full design package for my adjustable gym bench project.
Files are offered for a small fee to support future builds and save you hours of design work — a win for both sides.
All the files of the selected variant are availabe for download right after processing the purchase.
The files are available in 3 different varinats depending on what you need:

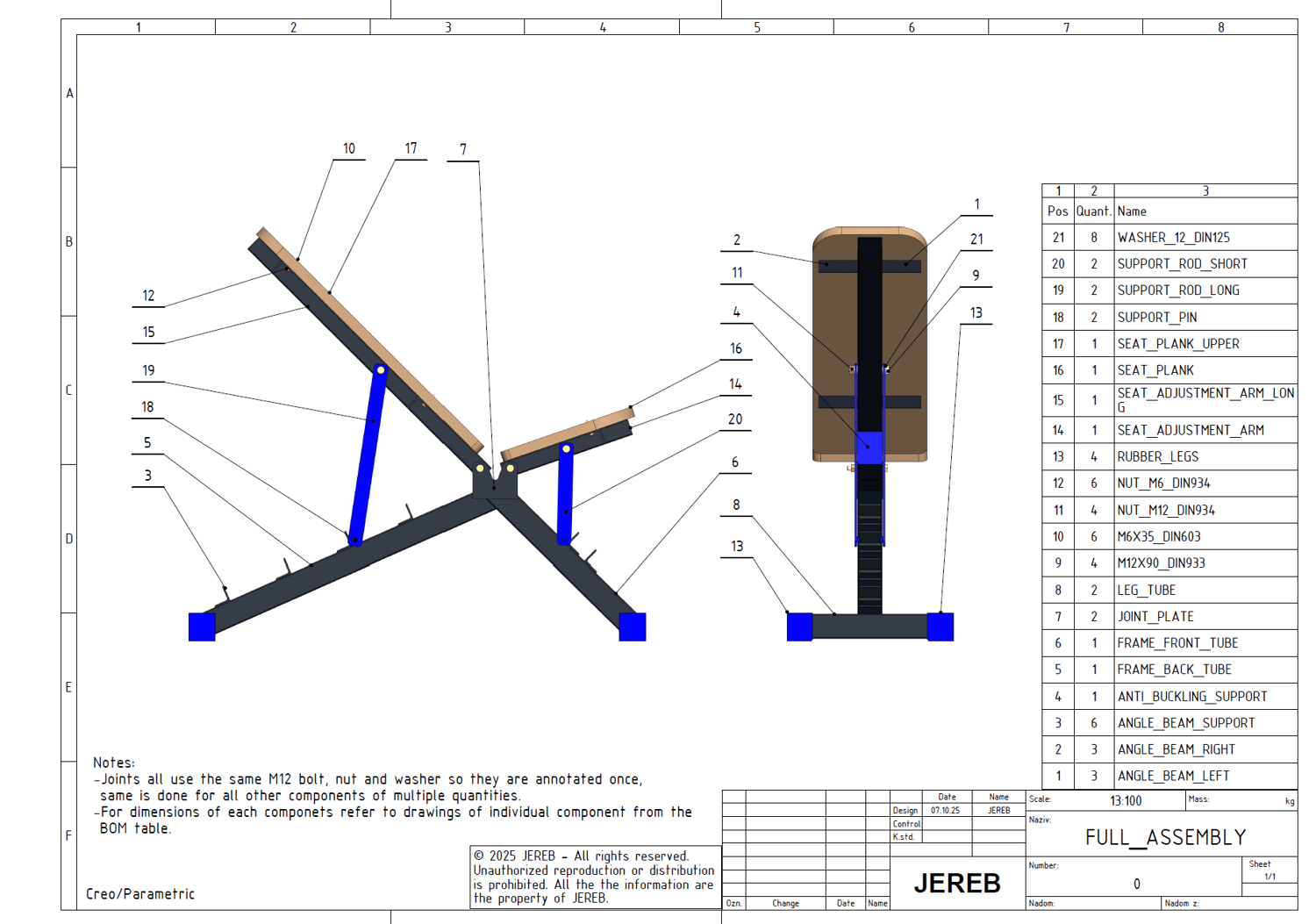

- 2D Drawing Assembly + All Components with Dimensions
Includes all the technical drawings with dimensions for each part and the full assembly drawing.

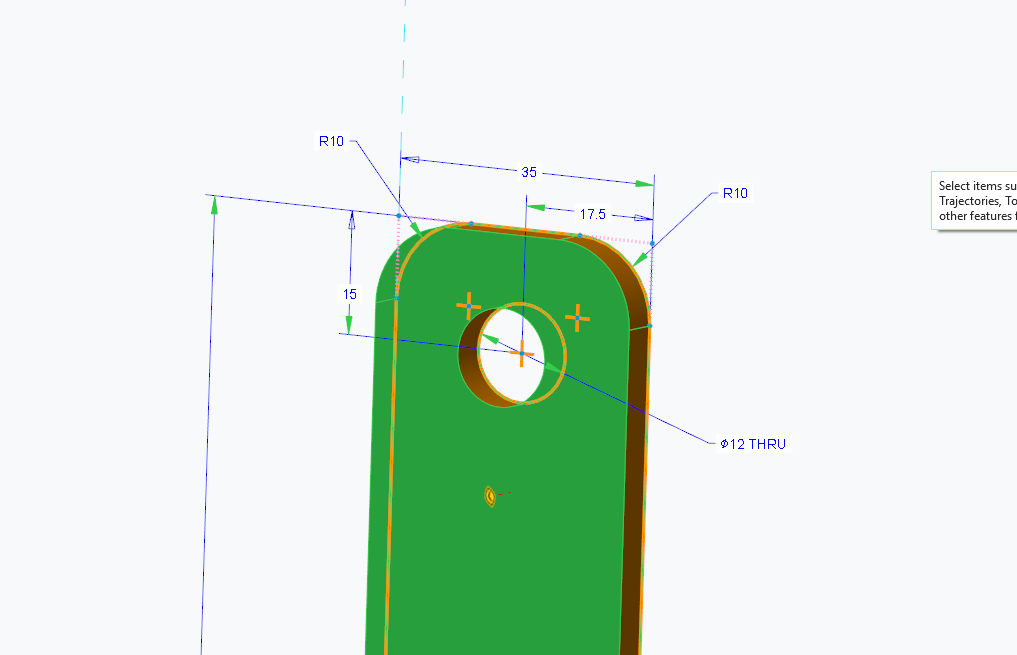

Snippet of one of the component's technical drawings is shown below. The dimensions are only hidden in the sample.
- 3D Model – Complete Assembly + Individual Parts
STEP or CREO file assembly and all parts in scale.
- FULL PACKAGE - All of the above included
