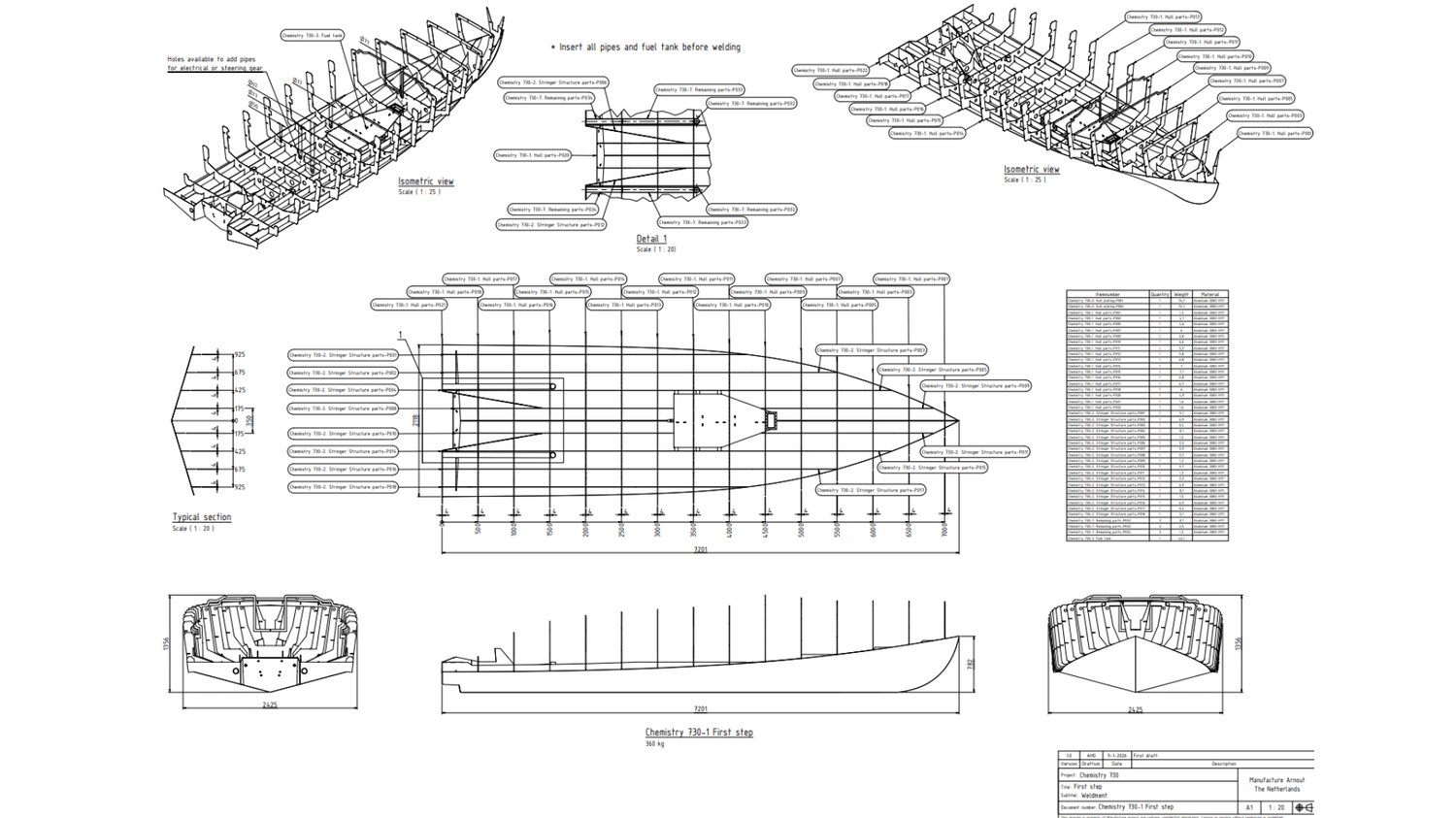

Step 1 — Base Hull Structural Framework
- Frame positioning dimensions
- Stringer placement references
- Hull geometry alignment
- Welding preparation points
- Structural assembly sequence

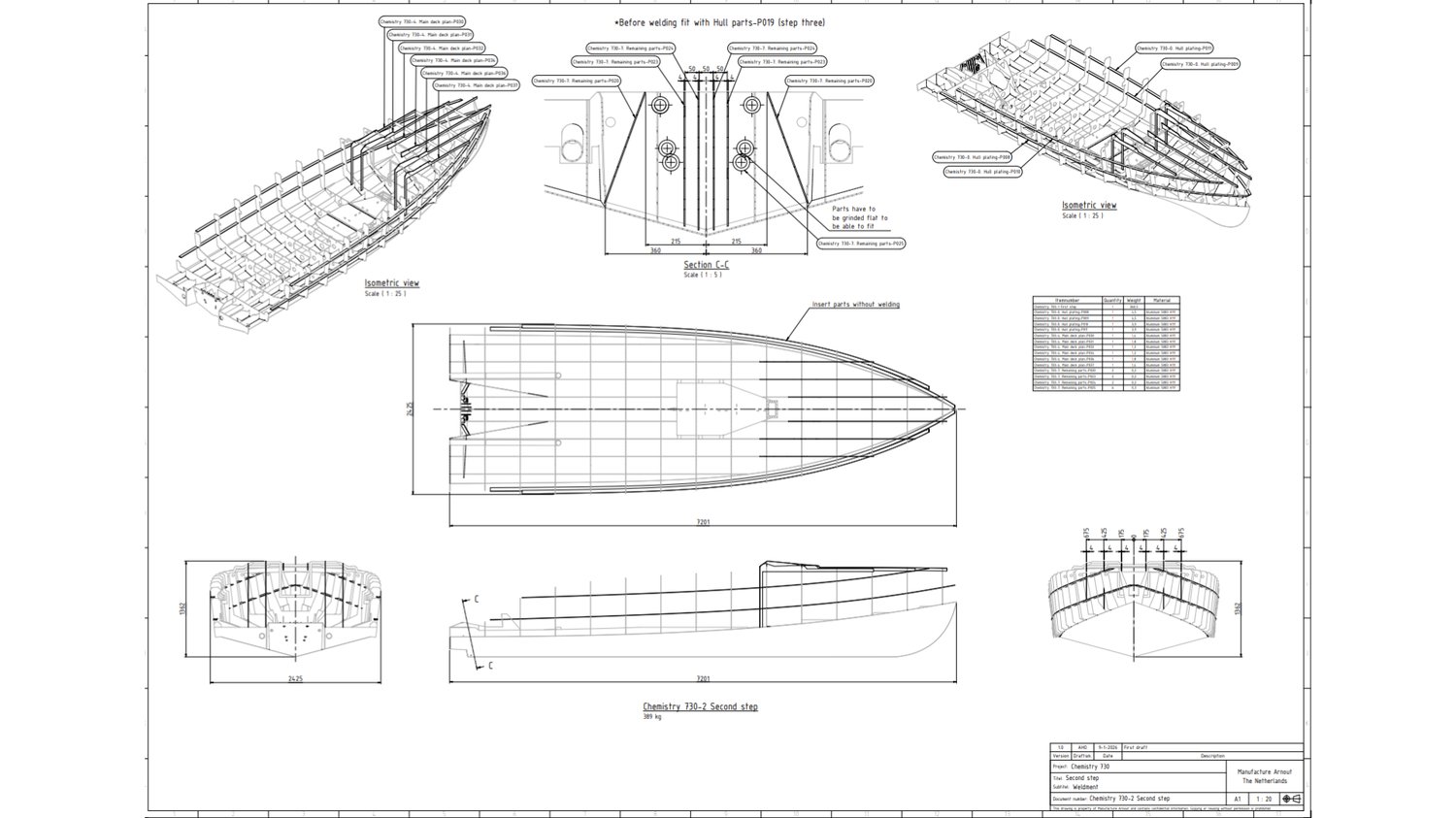

Step 2 — Secondary Hull Assembly
One of multiple sequential construction stages included in the full design package.
- Structural hull reinforcement layout
- Secondary frame alignment dimensions
- Additional assembly positioning references
- Progressive hull shape development
- Weld preparation for structural continuation
Complete Chemistry 730 Construction Files
The exact design shown throughout this website has been fully engineered, physically built, tested on the water for over 2 years, and is now available as a complete fabrication package.
Designed for experienced builders, fabricators, and custom aluminum boat construction.
