Custom 7.3m Aluminum Boat
Designed from scratch. Built entirely in aluminum. Tested on the water for over 2 years.
Built after 20 years of welding and fabrication experience, with efficiency and real-world use as the primary design goal.
Design features & specifications
Hull Dimensions
Length: 7.30 m
Beam: 2.50 m
Deadrise angle: XX°
Construction
Marine-grade aluminum hull
4 mm side plating
5 mm bottom plating
5 mm reinforced transom
Dry hull weight: 1050 kg

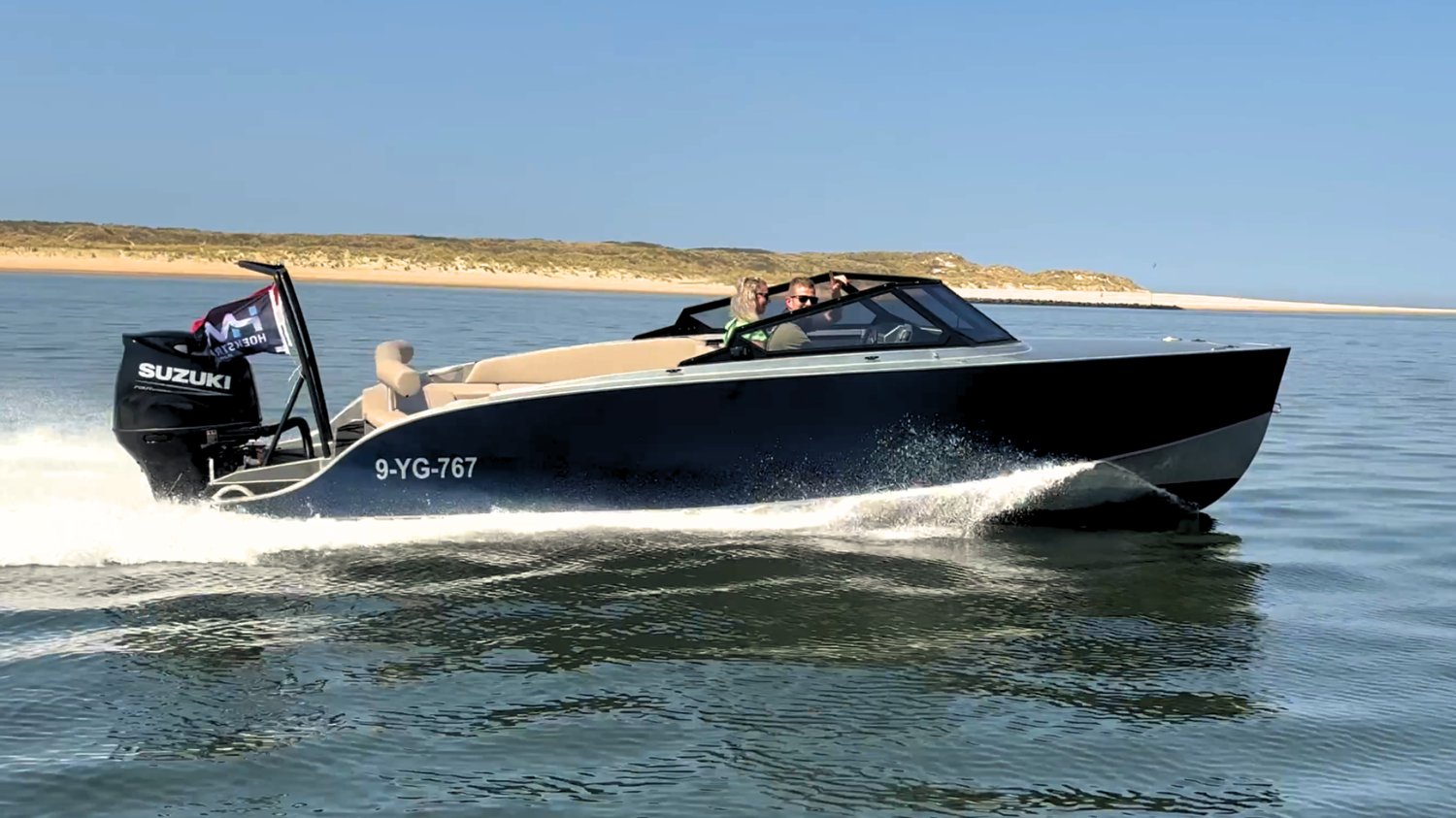

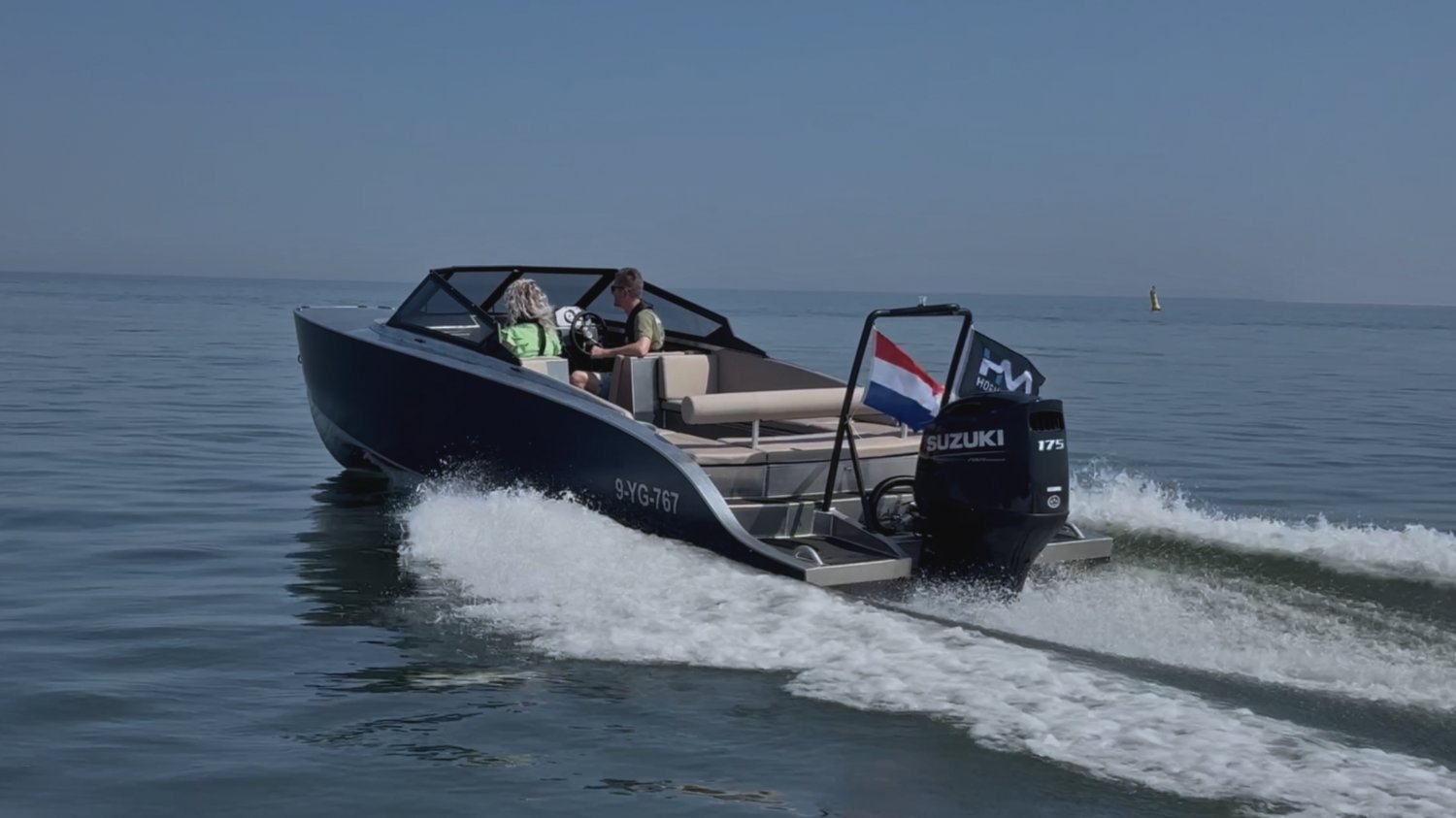

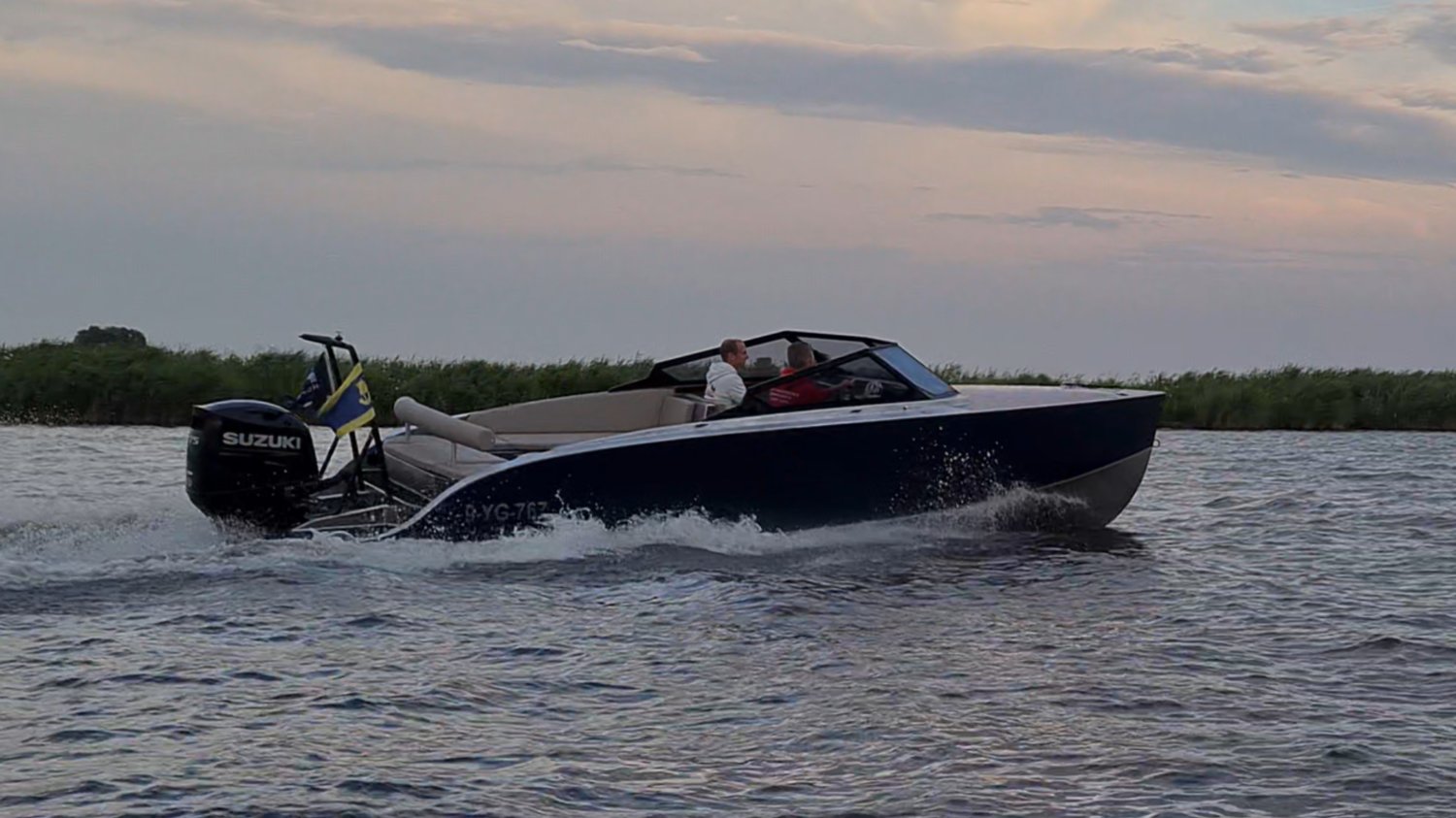

Prototype Performance
- Tested with Suzuki DF175 outboard
- Top speed: 37 knots
- Planes below 16 knots
- Stable low-speed cruising
- Designed for efficient fuel consumption
Full Design Package Includes

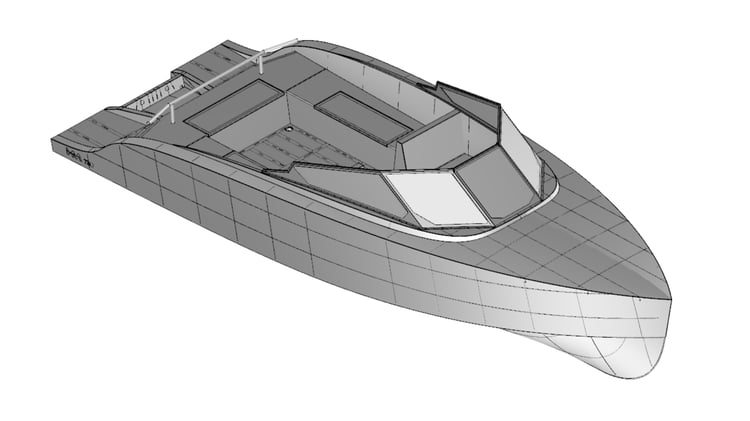

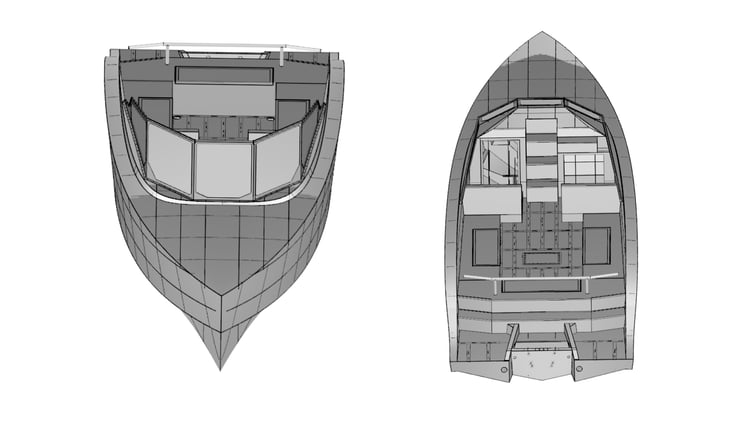

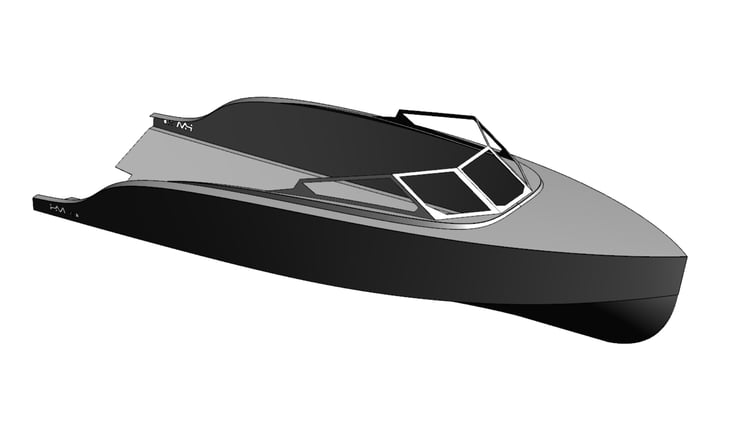

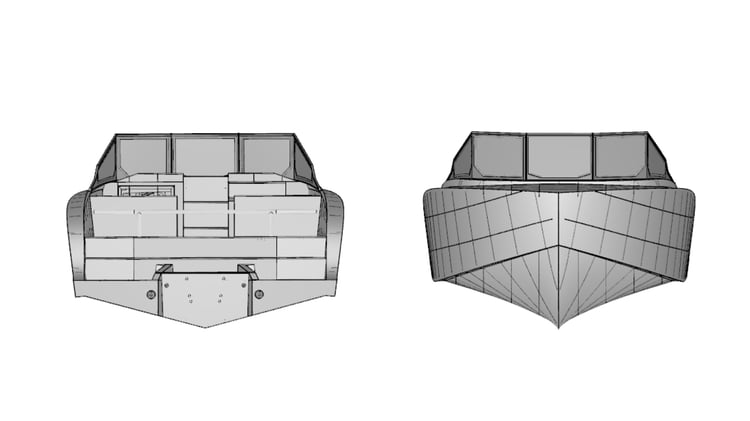

- Full 3D STEP model
- Complete hull construction drawings
- Plate development files
- Structural framework drawings
- CNC-ready manufacturing geometry
- Internal layout design
- Build reference package
