B-312 Horizon| Two story small building plans, 4 apartments, each flat 2 bedroom + 2 bathroom, Blueprints traditional commercial building
B-312 Horizon|
------------------
House Description:
Four Typical apartment, Each Flat:
Bedroom 2 Nos.
Bathroom 2 Nos.
Family Living 1 No.
Dinning 1 No.
Kitchen 1 No.
Porch 1 No.
Balcony 1 No.
Footprint WxL 18.75 x 12.36 Meter (61x 40 Feet)
Total BUA Area 407 M2 = 4380 F2
------------------
Drawings Description:

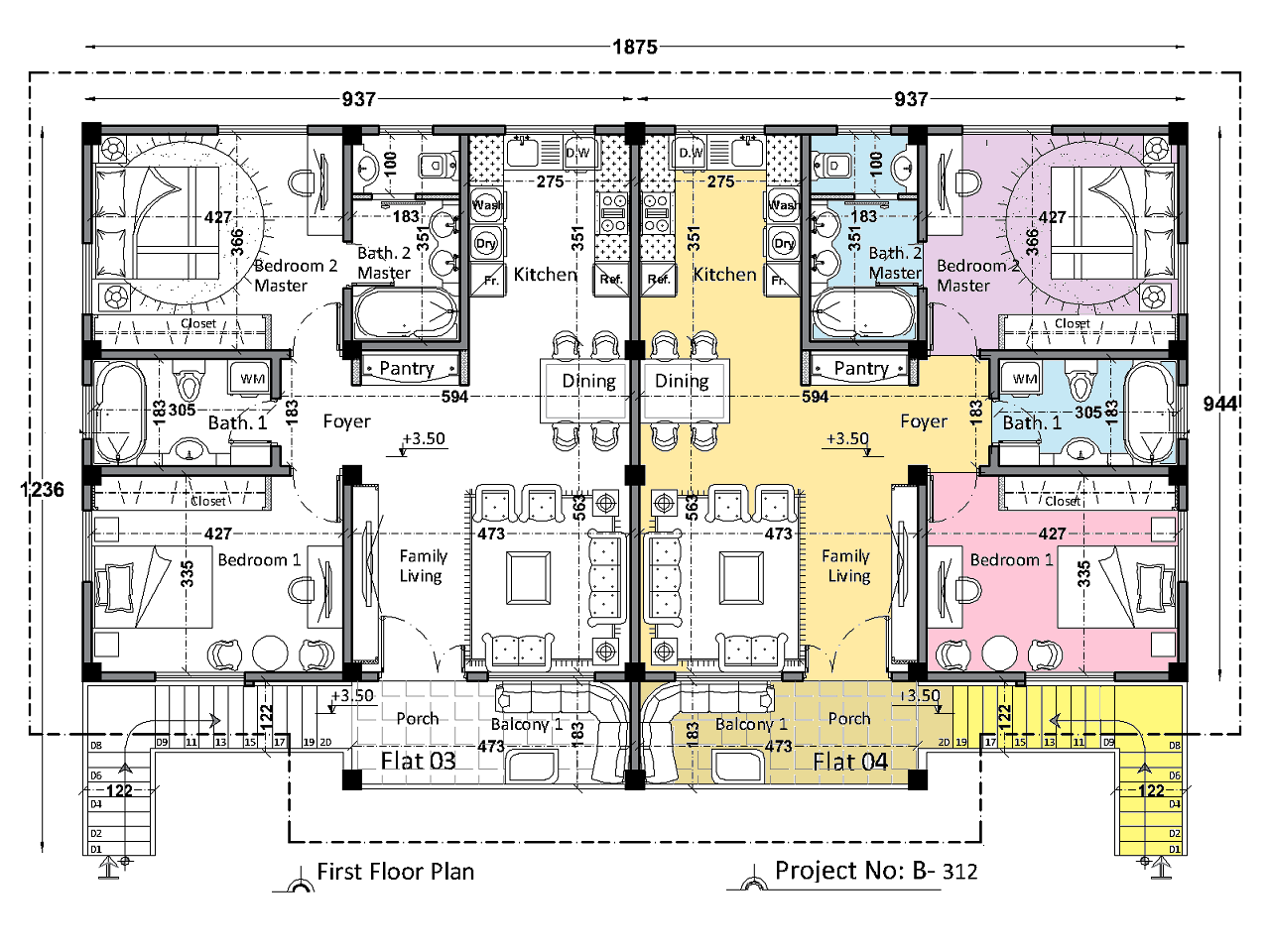

Floor Plan 2 Nos.
Furniture Layout 2 Nos.

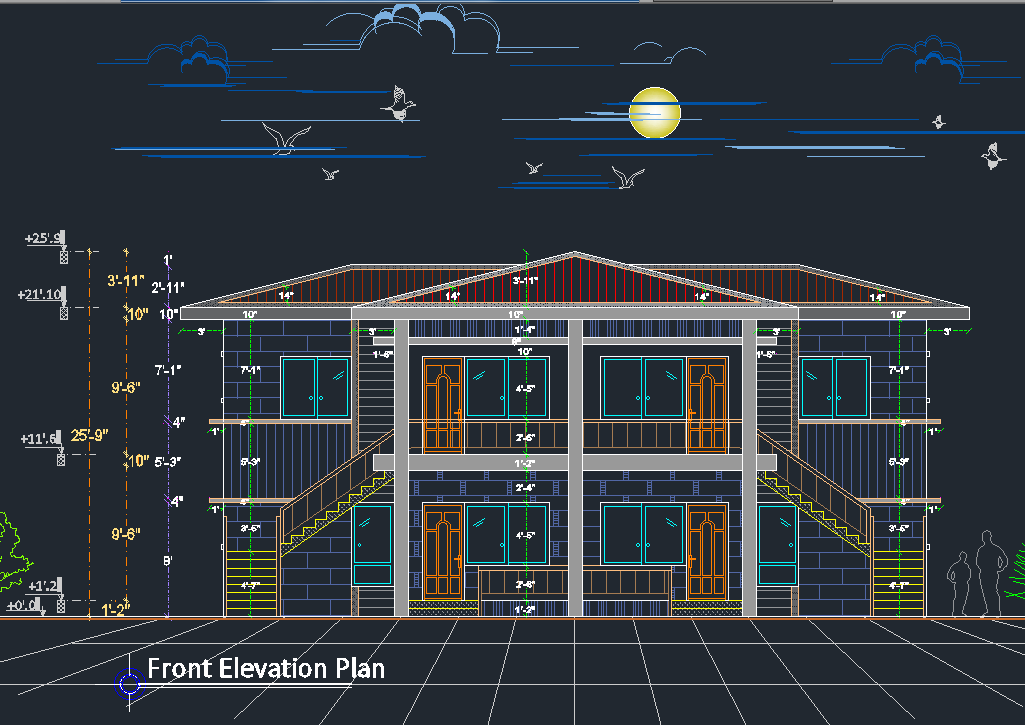

Elevation Plan 4 Nos.
Section Plan 2 Nos.
Roof Location 1 No.
Roof Top Plan 1 No.
Foundation Beams 1 No.
Columns Centre 1 No.
Typical Details 1 No.
D & W Schedule 1 No.

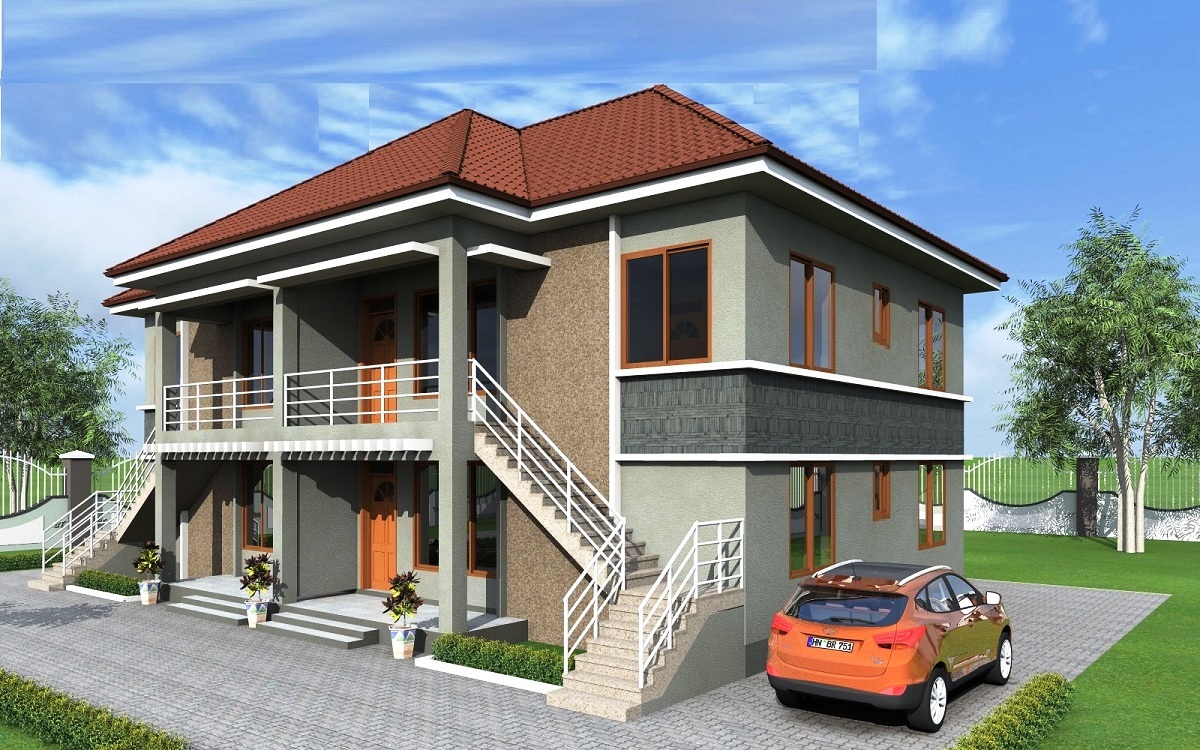

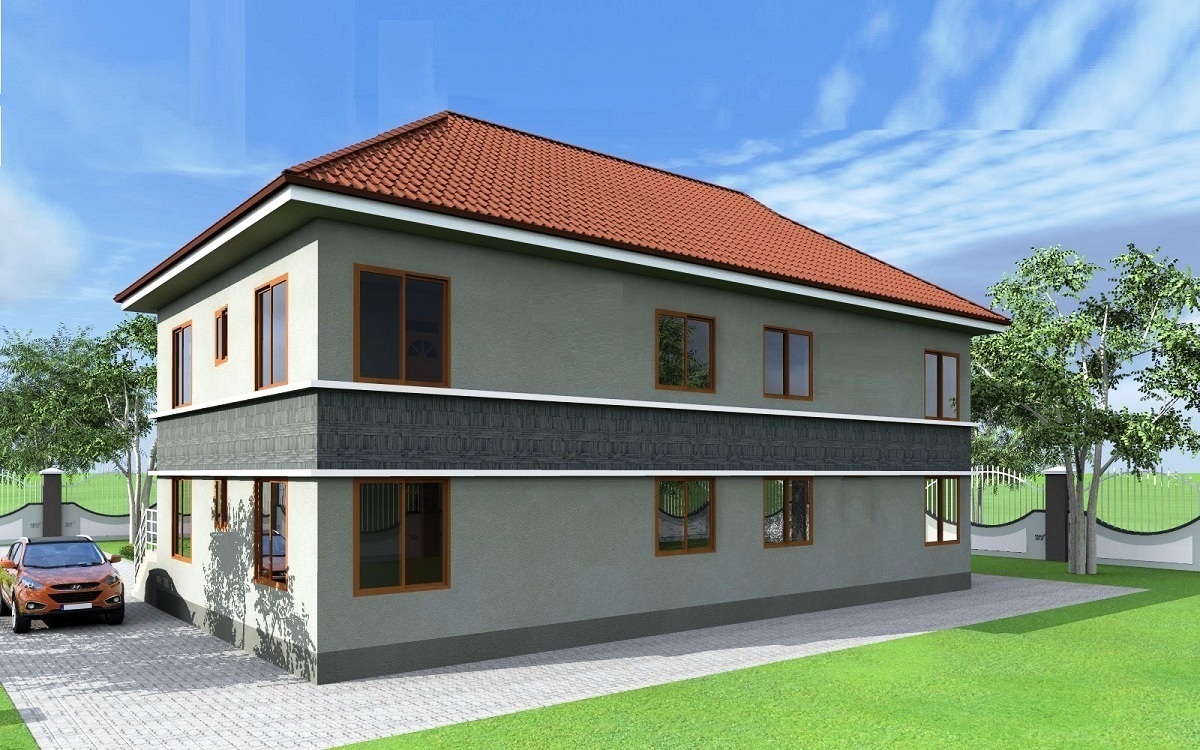

3D Rendering 4 No.
------------------
* General Notes:
1- We are selling all our house plans as PDF digital file only, and Nothing will be sent by post.
2- You will get Two Sets of Detailed Drawings as PDF file, in Both units (Feet - inch and Meter-Cm)
so you can print multi copies any time in any Paper size A4, A3, A2, A1.
3- All the house plan drawings are ready to download them once payment confirmed.
