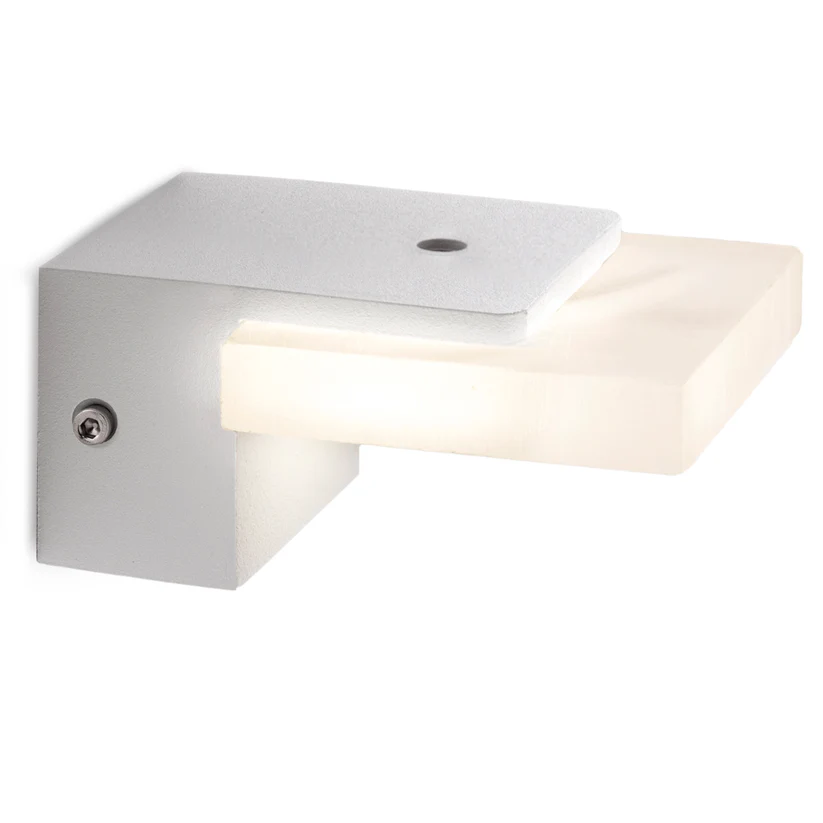

LED Wall Light Charlotte

Description

LED Wall Light 5W 500Lm White Charlotte

Technical File

Product Code: LM-053

Luminous Efficacy (LM/W): 80

Light Temperature: Neutral White

Kelvin: 2700

Power (W): 5.0

Luminous Flux (LM): 402

LED Performance: 88

Dimensions (mm): 103x75x47

Height: 47.0

Length: 103.0

Width: 75.0

Number and Type of LEDs: SMD2835

CRI: 80

Power Factor (PF): 0.85

Construction: Aluminum/PC

Beam Angle (º): 120

Installation: IP20

Voltage Range: 85-265VAC

Estimated Lifetime (h): 40000

Equivalent Wattage (W): 45

Insulation Class: II

Operating Frequency (Hz): 50/60

Start Time (s): 0.1

Energy Class: G

Certificates: CE/ROHS/ISO9001

Terminal: Terminal

Temperature Range (ºC): -20 to +40

Switching Cycles: 100000

Diffuser: Frosted

Energy Consumption (kWh/1000h): 5.0

Weight (g): 230

Flicker: 0.9

Half-Year Lifetime (3 h/day): 36.52

Half-Year Lifetime (5 h/day): 21.91

Half-Year Lifetime (8 h/day): 13.69

Single CCT: 2700

R9 Index: 12

Minimum CRI Range: 97

Maximum CRI Range: 5

Chromaticity x: 0.444

Chromaticity y: 0.415

Style: Modern

Lamp Type: Wall Light

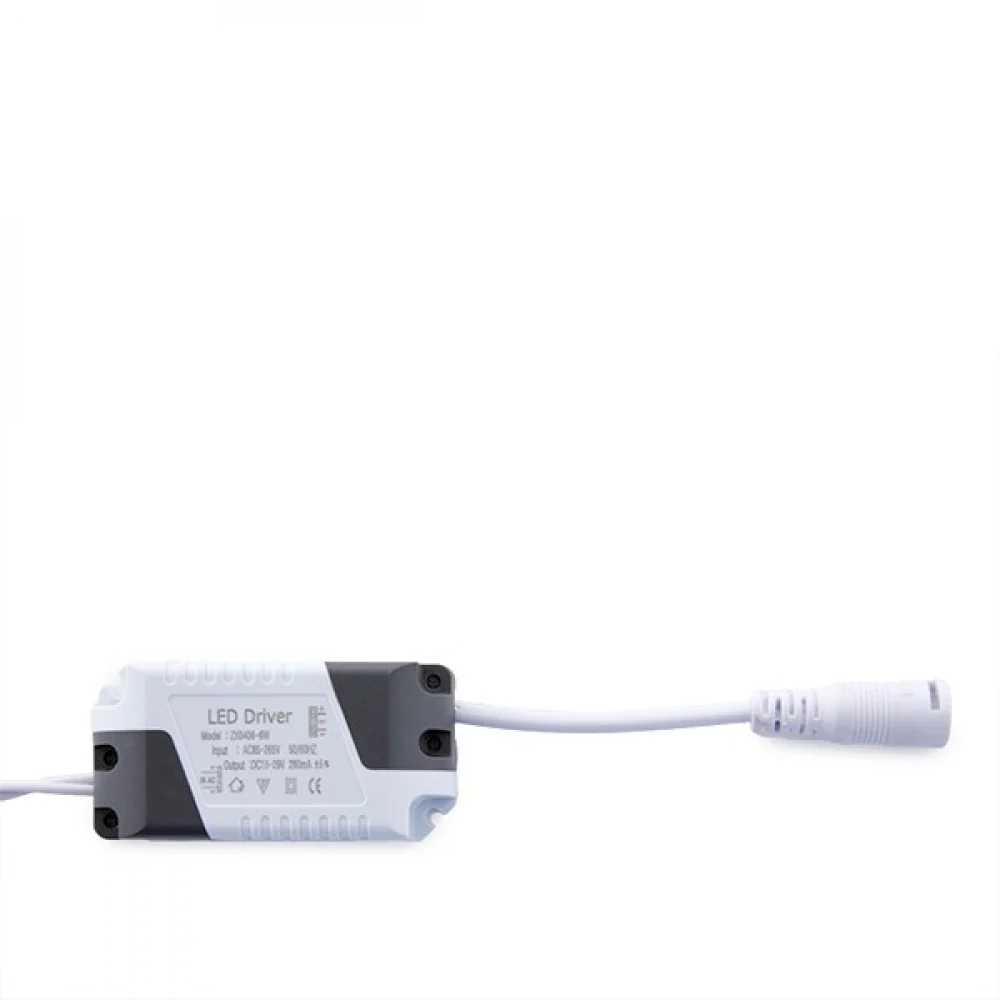

Driver Output: DC12-24V

Applicable Standards: EN 60598-1:2008; EN 60598-2-2:2012; EN 62493:2010
