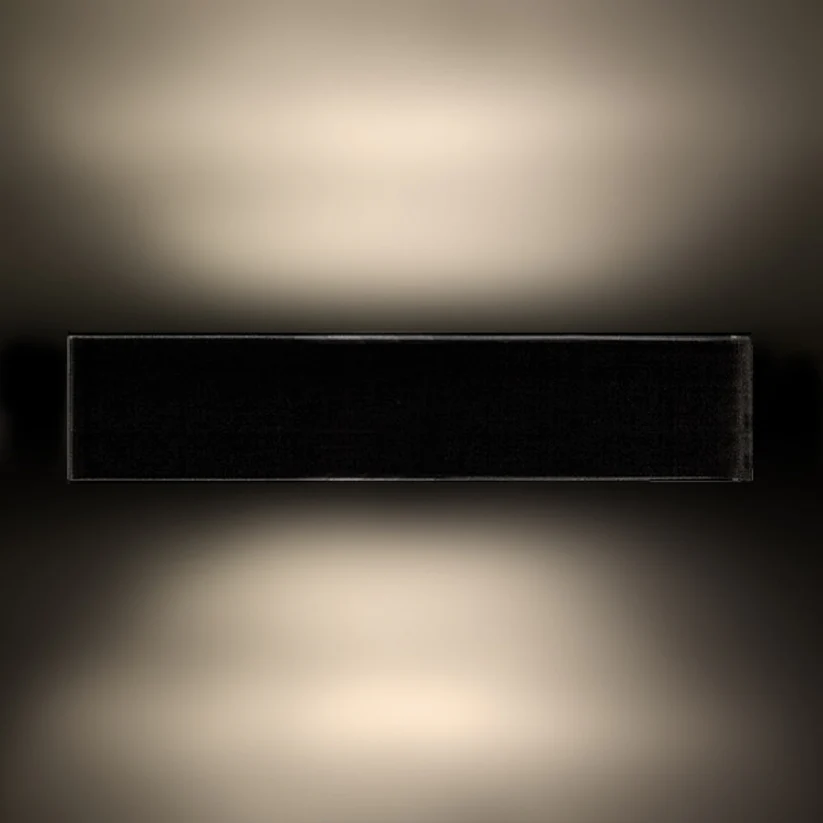

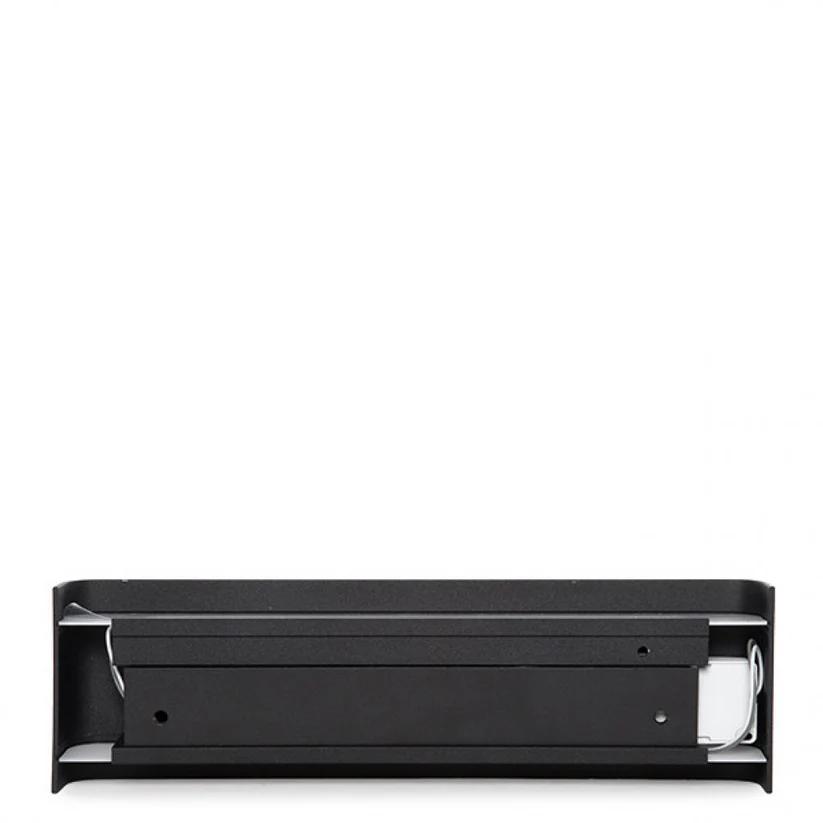

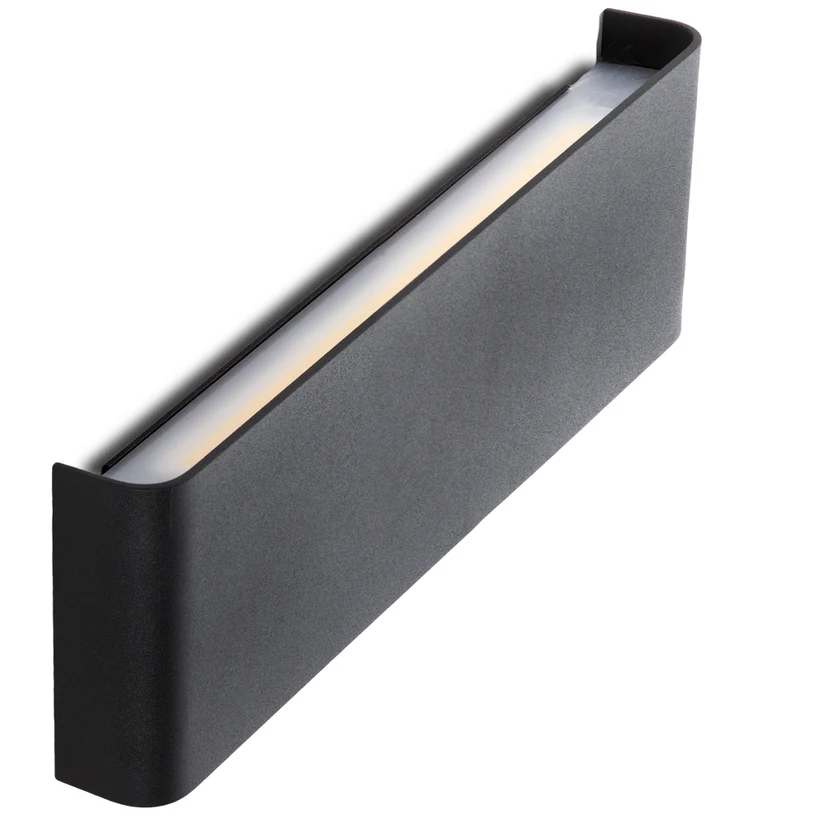

LED Wall Light

Description

LED Wall Light 24W 2260Lm Metro

Technical File

Product Code: LM-047

Luminous Efficacy (LM/W): 80

Light Temperature: Natural White

Kelvin º: 4200

Power (W): 24.0

Luminous Flux (LM): 1921

Dimensions (mm): 310x90x30

Height: 90.0 mm

Length: 310.0 mm

Width: 30.0 mm

Number and Type of LEDs: COB

CRI: 80

Power Factor (PF): 0.8

Construction: Aluminium/PC

Beam Angle (º): 120

Installation: IP20

Voltage Range: 85-265VAC

Estimated Lifetime (h): 40000

Equivalence (W): 160

Insulation Class: II

Operating Frequency (Hz): 50/60

Start Time (s): 0.1

Energy Class: G

Certifications: CE/ROHS/ISO9001

Terminal Type: Terminal

Temperature Range (ºC): -20 to +40

Switching Cycles: 100000

Diffuser: Frosted

Energy Consumption (kWh/1000h): 24.0

Weight (g): 500

Flicker: 0.8

Half-Year Lifetime (3 h/day): 36.52

Half-Year Lifetime (5 h/day): 21.91

Half-Year Lifetime (8 h/day): 13.69

Single CCT: 4200

R9 Index: 7

Minimum CRI Range: 97

Maximum CRI Range: 12

Chromaticity x: 0.375

Chromaticity y: 0.381

Style: Modern

Lamp Type: Wall Light

Driver Output: DC24-48V

Applicable Standards: EN 60598-1:2008; EN 60598-2-2:2012; EN 62493:2010
