Metric Fab Shop DXF Pack — 17 Cut-Ready Files for A$9 (AU SHS + Saddles)

17 cut-ready metric DXFs for A$9 — the parts your fab shop makes every week, drawn in mm at 1:1 for plasma, laser or waterjet. Beat a gusset-only pack on price and get base plates, welding squares and 42 saddle templates thrown in.

What you get

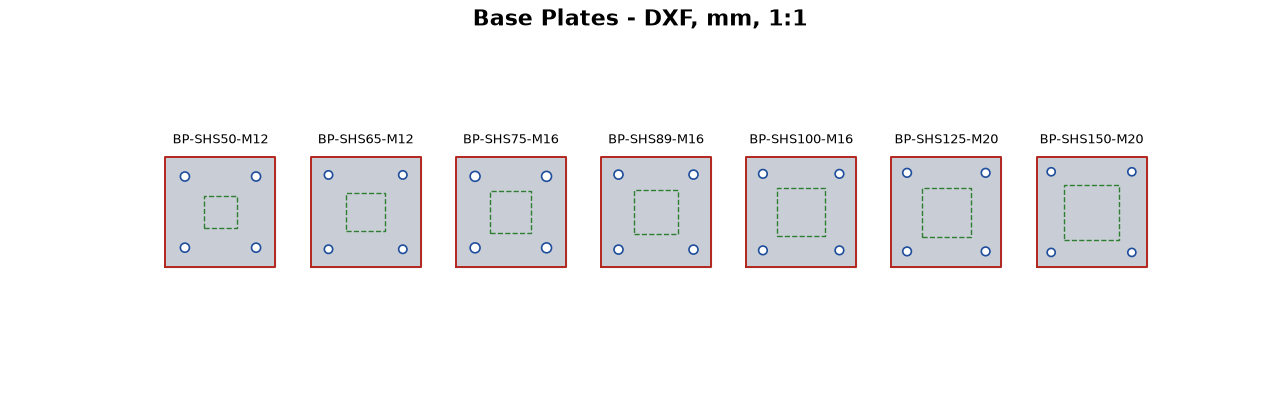

- 7 SHS column base plates: SHS 50, 65, 75, 89, 100, 125 and 150, with M12, M16 or M20 holes (bolt + 2 mm). Edge distances are at least 1.75 × bolt diameter (AS 4100 minimum for sheared or hand flame-cut edges), with the SHS outline on a layout layer.

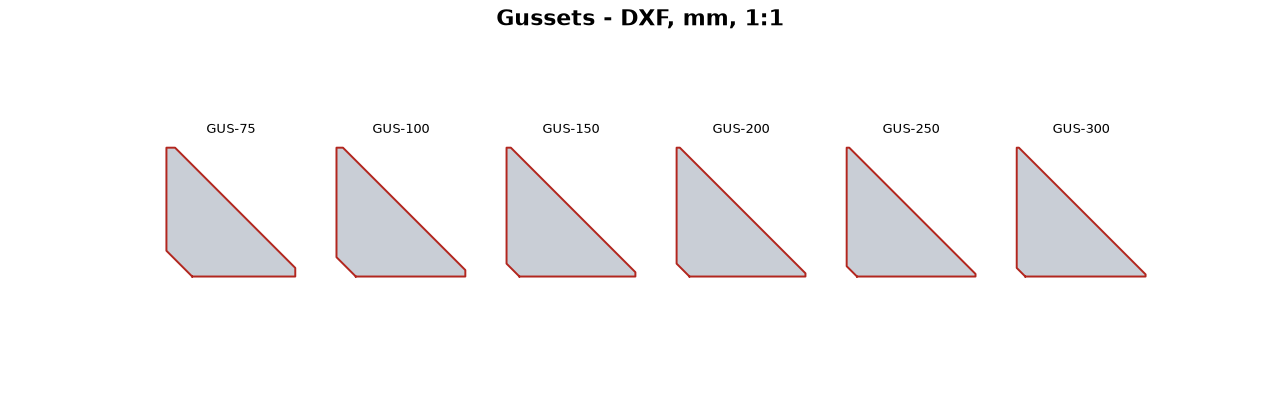

- 6 gussets: 75 to 300 mm legs, square corner sniped to sit over the root weld.

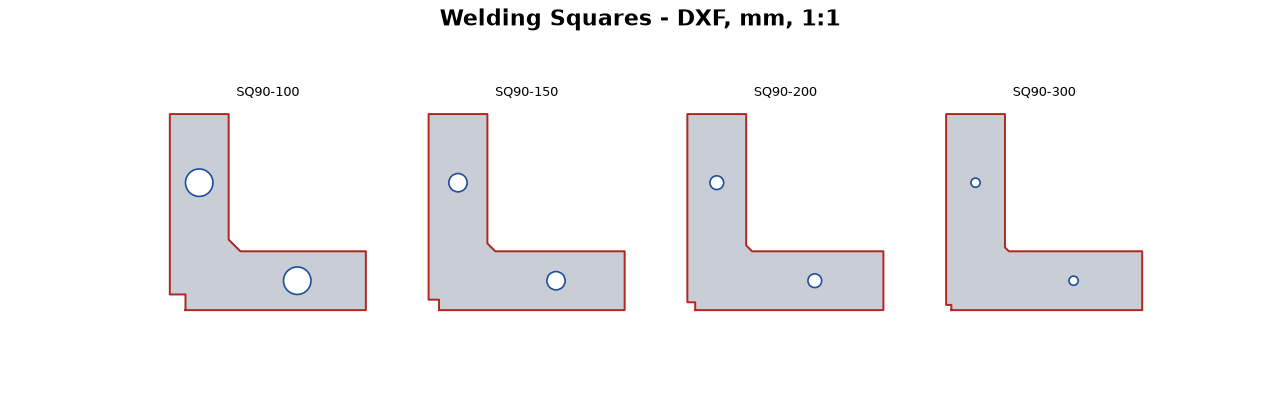

- 4 welding squares: 100, 150, 200 and 300 mm 90° squares with a corner notch for the weld bead and clamp holes.

- Nest sheets: each set laid out on one DXF for quick nesting.

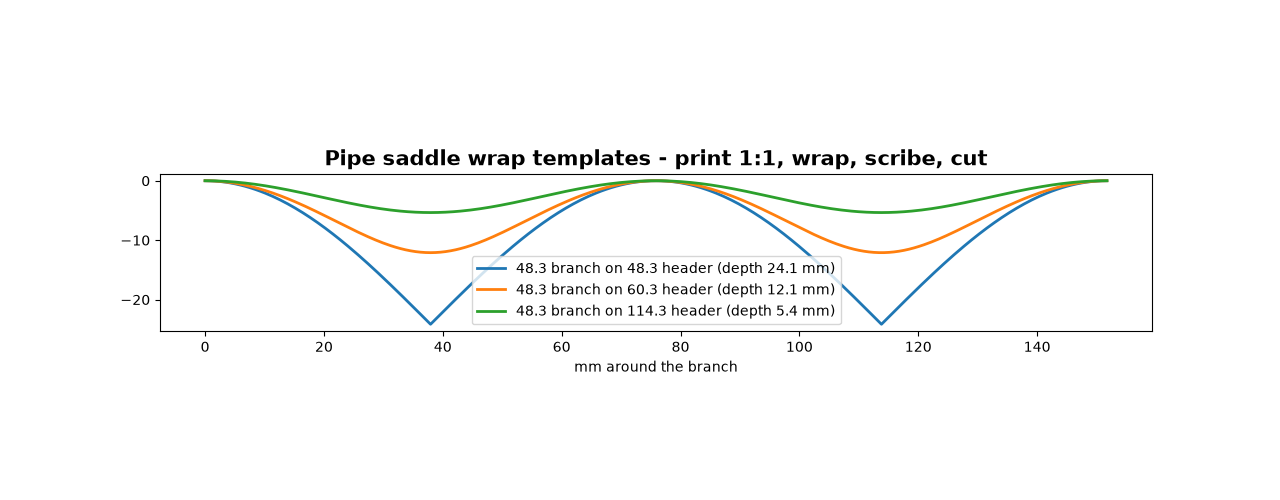

- 42 printable pipe saddle (fish-mouth) templates for AU pipe and CHS ODs from 21.3 to 114.3. Print at 100%, wrap, scribe and cut. Each has a 100 mm scale check bar.

- A parts catalogue PDF with every size, hole and centre.

Price check (why A$9 wins)

- Etsy gusset DXF bundle: US$9.74 (211 reviews) — gussets only

- Build It Plans metric welding squares: US$14.99

- This pack: 17 DXFs + 42 saddles for A$9, metric, AU SHS sizes, no GST

Who it's for

Aussie fab shops, mobile welders and plasma operators who want metric files that match local SHS sizes — not imperial packs with 1/4" holes.

Instant download — zip with all DXFs, catalogue PDF, saddle PDF and READ-ME. Opens in SheetCam, Fusion, LibreCAD, QCAD and most plasma/laser CAM.

Good to know

- Units are mm (DXF R2010). Layers: CUT, HOLES, MARK (layout only) and NOTES.

- There's no kerf offset or lead-ins, so set those in your CAM. Plate thickness isn't built in.

- The base plates are typical shop layouts, not an engineered design. Plate thickness, welds, bolt grade and anchors come from your engineer or job drawing.

- Licence: cut and sell the parts. Don't resell or share the files.

- Andwat Co is a sole trader and is not GST-registered — price is A$9 with no GST.

Digital download (zip). Instant delivery after payment.
