How to model and animate the Kaplan turbine in Solidworks
This is a comprehensive guide meant for intermediate users of Solidworks with a case study chosen as the Kaplan turbine.
Who is this course meant for
I developed this mini-course to bring a real-world example to an intermediate user of Solidworks.

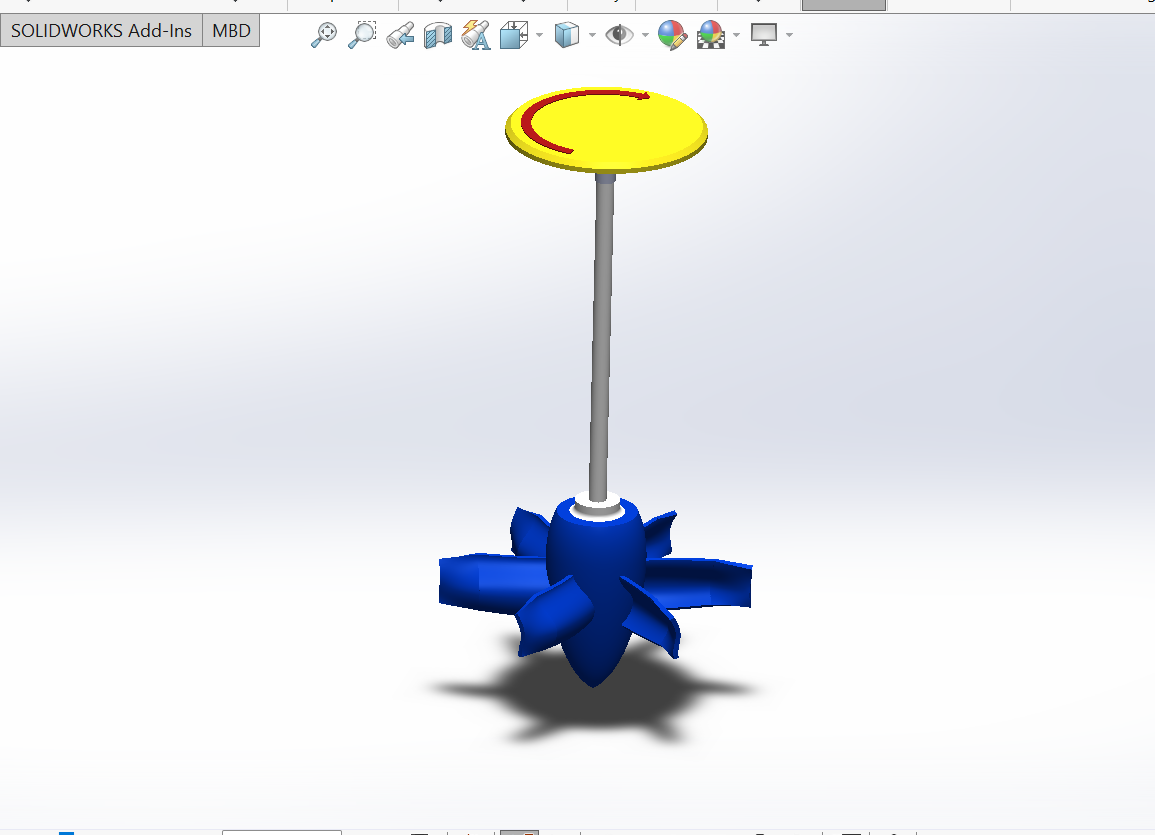

Kaplan turbine
The Kaplan turbine is a propeller-type water turbine that has adjustable blades. It was developed in 1913 by Austrian professor Viktor Kaplan who combined automatically adjusted propeller blades with automatically adjusted wicket gates to achieve efficiency over a wide range of flow and water levels.
It is also known as a variable-pitch propeller turbine.
Course curriculum
-
1Modeling the Kaplan turbine
