FOUNDATION Fieldbus Device File Registry & Maintenance Procedure

Your termination is perfect. Your wiring is clean. So why won't that new transmitter commission?

This issue arises because the firmware on the device does not match the device file version in your DCS. And nobody realized it until the contractor was standing there waiting, the device was already installed, and you were two days into troubleshooting a "communications problem" that was actually a file version mismatch.

This situation isn't a mystery. It's a lifecycle engineering gap.

What You Get:

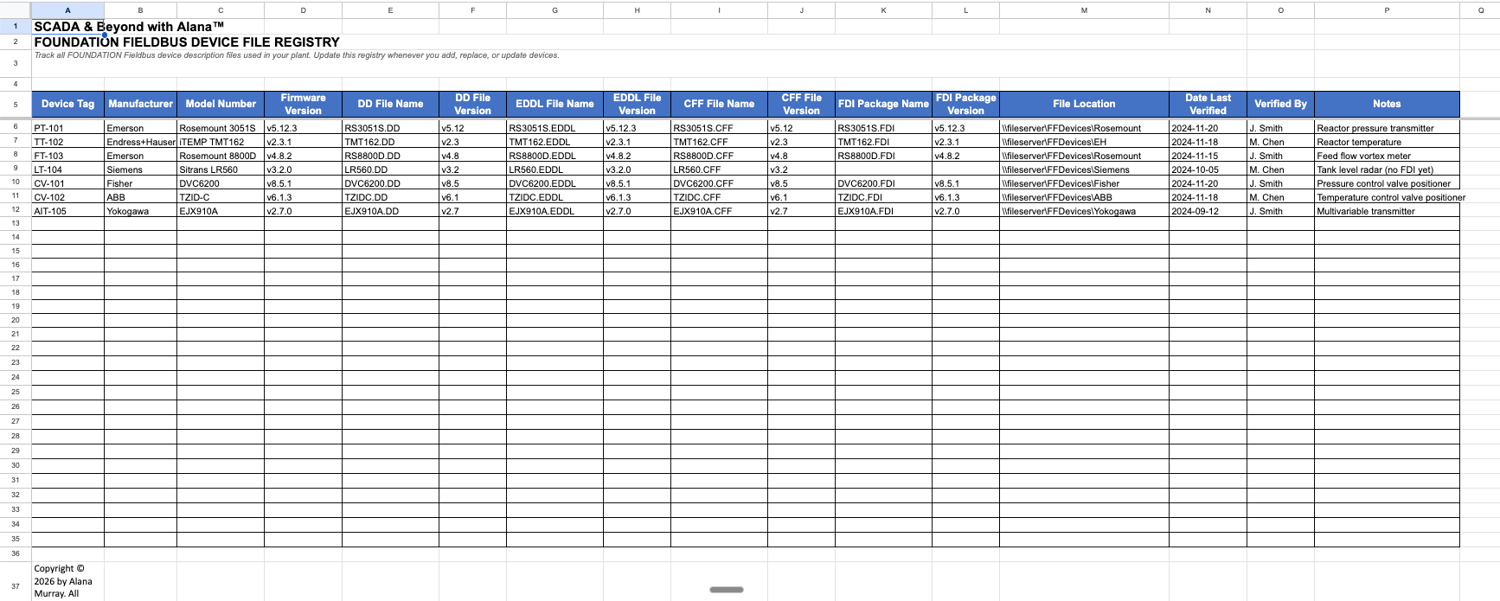

1. Device File Registry (Excel)

• Comprehensive tracking for all FOUNDATION Fieldbus devices in your plant
• Columns for: Device Tag, Manufacturer, Model, Firmware Version
• DD, EDDL, CFF, and FDI file names and versions
• File location, verification date, and notes
• Includes realistic demo data showing complete entries
• 30-device capacity (easily expandable)

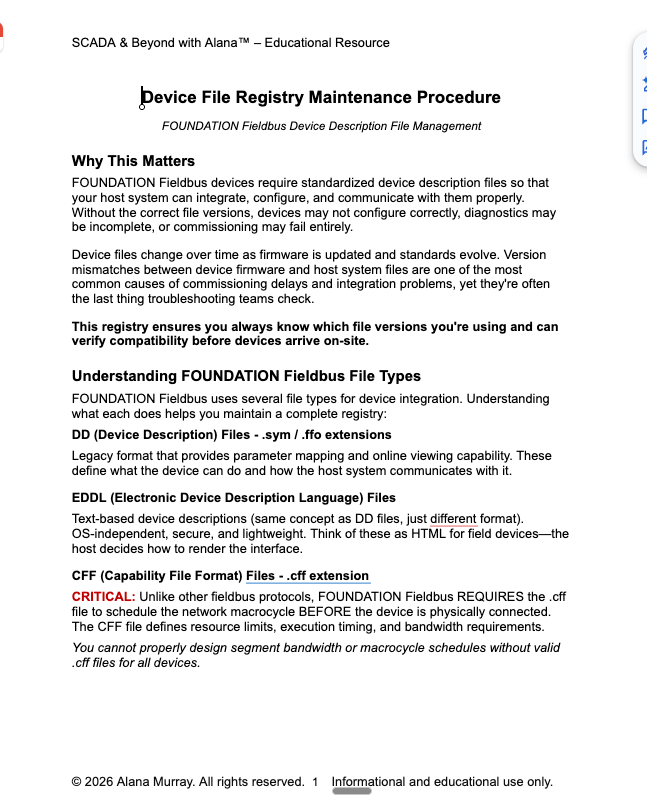

2. Device File Registry Maintenance Procedure (Word)

• Explanation of each file type (DD, EDDL, CFF, FDI) and what it does
• Why CFF files are CRITICAL for offline macrocycle scheduling
• 6-step verification checklist to use BEFORE ordering devices
• Version matching requirements (firmware must match file version)
• Where to obtain files (manufacturer, FieldComm Group, host vendors)
• Maintenance schedule (quarterly review, annual audit, pre-upgrade verification)

The Problem This Solves:

Device files change. Firmware gets updated. Standards evolve. Without systematic tracking, you discover compatibility issues during commissioning when it's expensive to fix. Plants that succeed with FOUNDATION Fieldbus long-term treat device file governance like a safety function. This gives you the framework to do that.

Critical Information Included:

Based on industry best practices and 35+ years of field experience, the procedure document explains:

• Why FOUNDATION Fieldbus uniquely requires .cff files BEFORE physical device connection
• How to verify file versions match firmware versions
• What goes wrong when they don't (and how to prevent it)
• Why FDI packages are the modern standard for future-proofing

Who This Is For:

Automation engineers, instrument technicians, maintenance staff, and OT professionals managing FOUNDATION Fieldbus installations. If you've ever troubleshot a device integration problem for days only to discover it was a file version issue, this prevents that from happening again.

Deliverables:

• Device File Registry (.xlsx) with demo data
• Device File Registry Maintenance Procedure (.docx)
•


Both files are editable and ready to use immediately.

This product is for educational and informational purposes only. Users are responsible for adapting these tools to their specific operational requirements.
