Linear Transducer Calibration Procedure (ISO 17025) — CPGL-CAL-005

Linear Transducer Calibration Procedure — ISO 17025 Compliant (v2)

A ready-to-use Word document (.docx) for calibrating linear transducers (LVDTs, displacement sensors) in accordance with ISO/IEC 17025:2017 and ISO GUM (JCGM 100:2008).

What You Get

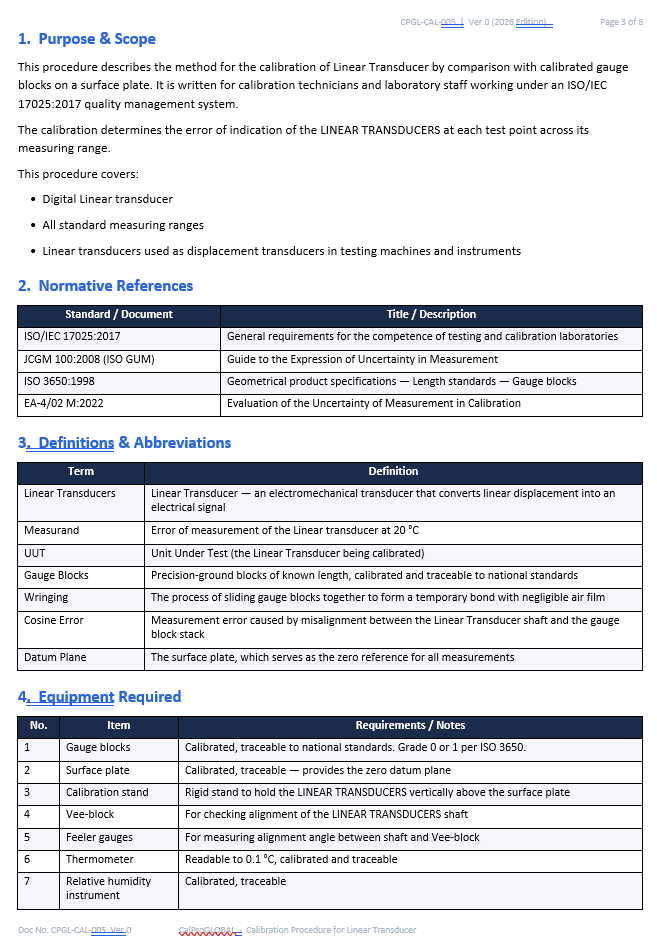

• Complete step-by-step calibration procedure for linear transducers and displacement sensors
• Covers linearity, repeatability, hysteresis, and resolution determination
• Full measurement uncertainty budget using the ISO GUM framework
• Sensitivity coefficients (c_i) and Welch-Satterthwaite formula for effective degrees of freedom
• Student-t coverage factor lookup (30-entry table, k at 95.45% confidence)
• YES/NO applicability toggles — use only the sections relevant to your lab
• Built-in quality checks and Assumptions & Guidelines section
• Print-ready A4 layout with professional formatting

Who This Is For

• ISO 17025 accredited testing and calibration laboratories
• Quality managers and calibration technicians
• Labs preparing for NABL, A2LA, UKAS, or other accreditation body assessments
• Anyone calibrating LVDTs, displacement transducers, or linear measurement devices

Editable & Customizable

Delivered as an editable .docx file. Add your laboratory logo, modify scope sections, and tailor it to your specific equipment and measurement ranges.

Document ID: CPGL-CAL-005 | Version 0 | CalPro Global
