STL FILE SPINNER 55mm dia, Marabu 2

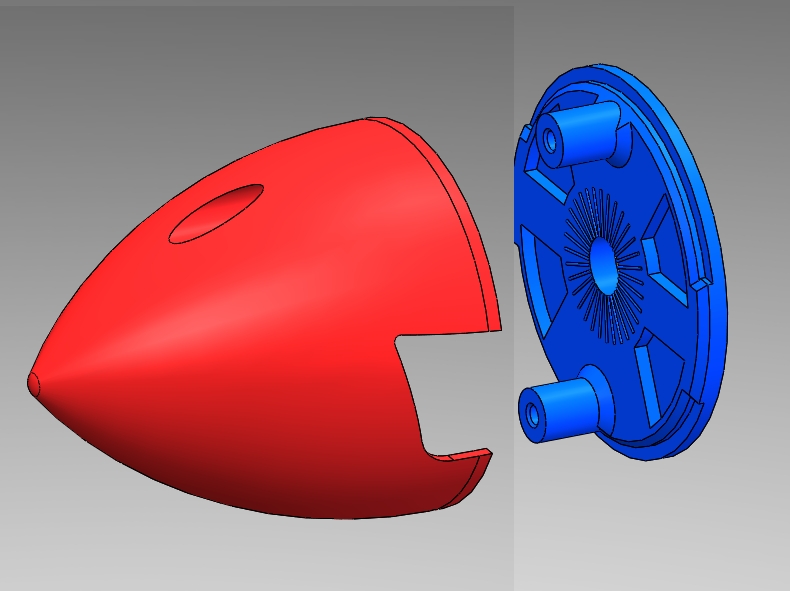

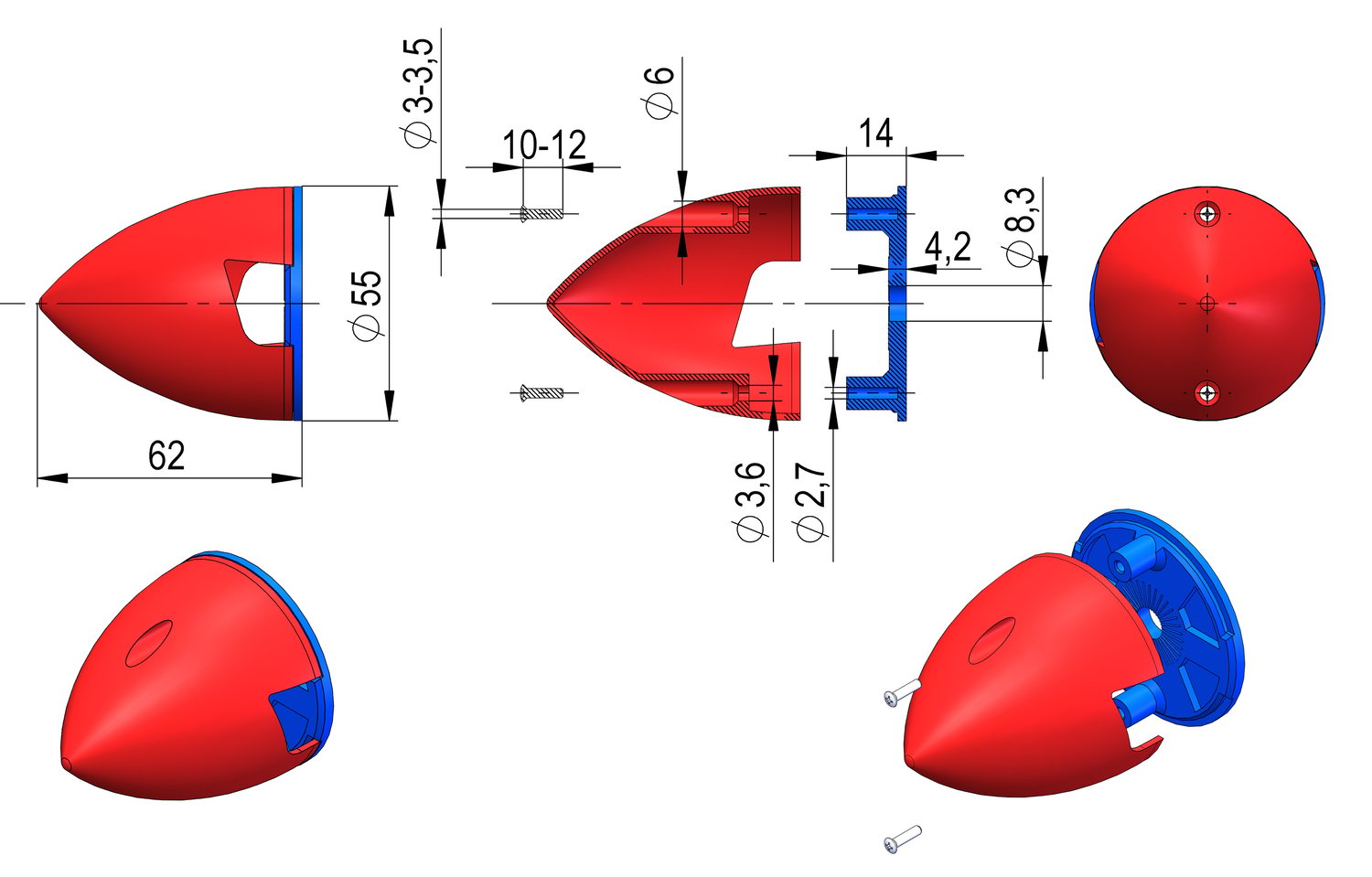

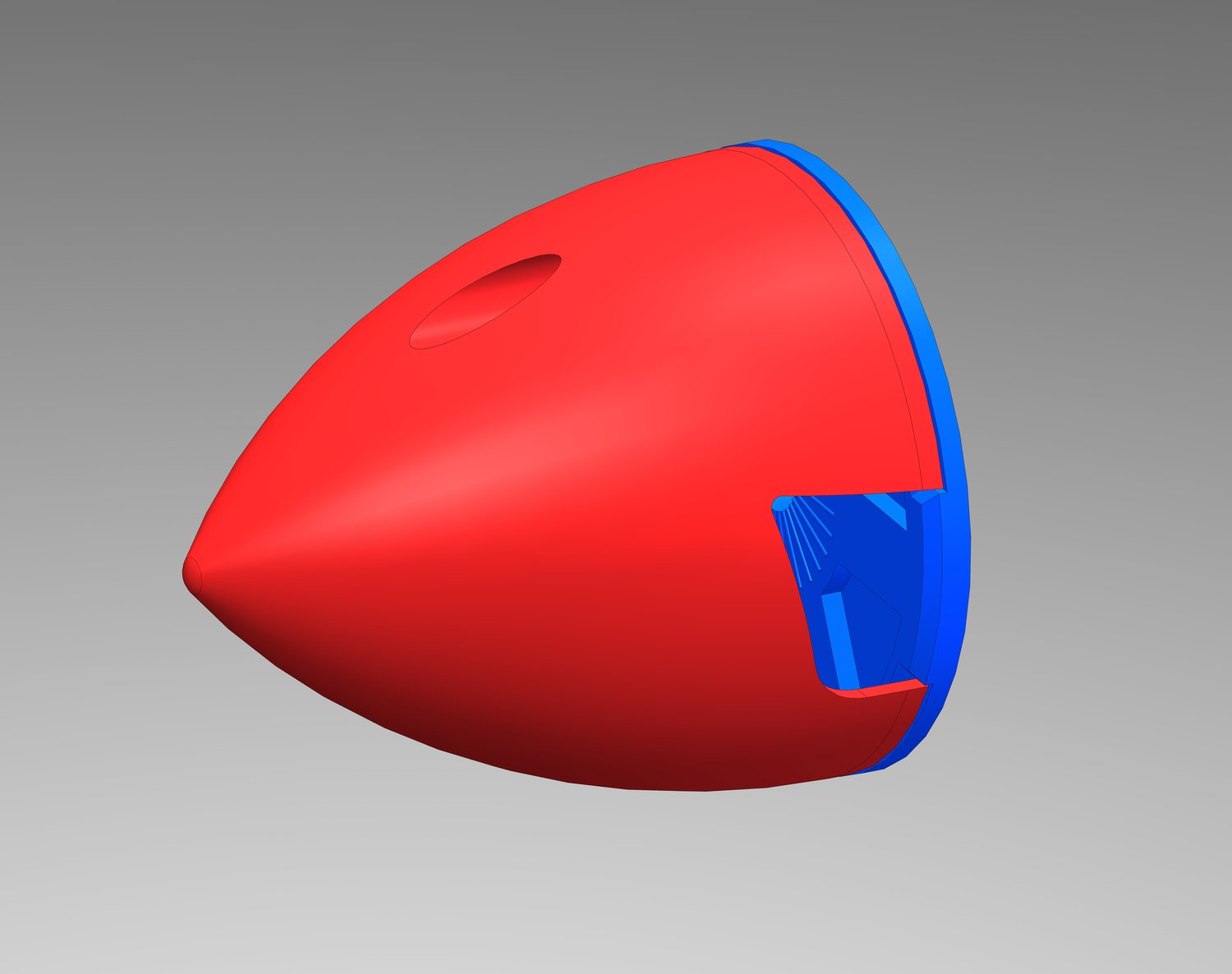

STL file for 3D printing a spinner compatible with the Marabu 2 model. This spinner is designed for installation on the Marabu 2, but it can also be used on other models with similar requirements. It is suitable for brushless motors under 1100 kV. The spinner consists of two parts: a base plate and a conical spinner, which is secured to the base with two small self‑tapping screws. If the propeller cutout does not match your propeller, it can be easily enlarged with a file. Simply load the model into your preferred slicer, position it on its back side, and generate the G‑code. Recommended materials: PLA , PETG, ABS, Carbon... It fits to 8mm diameter motor shaft. You need two self tapping screws or wood screws 3-3,5mm thick and up to 12 mm long to assemble the spinner.

Print settings:

• Layer height: 0.2–0.28 mm
• Wall thickness: 2 mm
• Infill: 50%
• Support max angle: 55°
• Build plate adhesion: Brim, Raft
