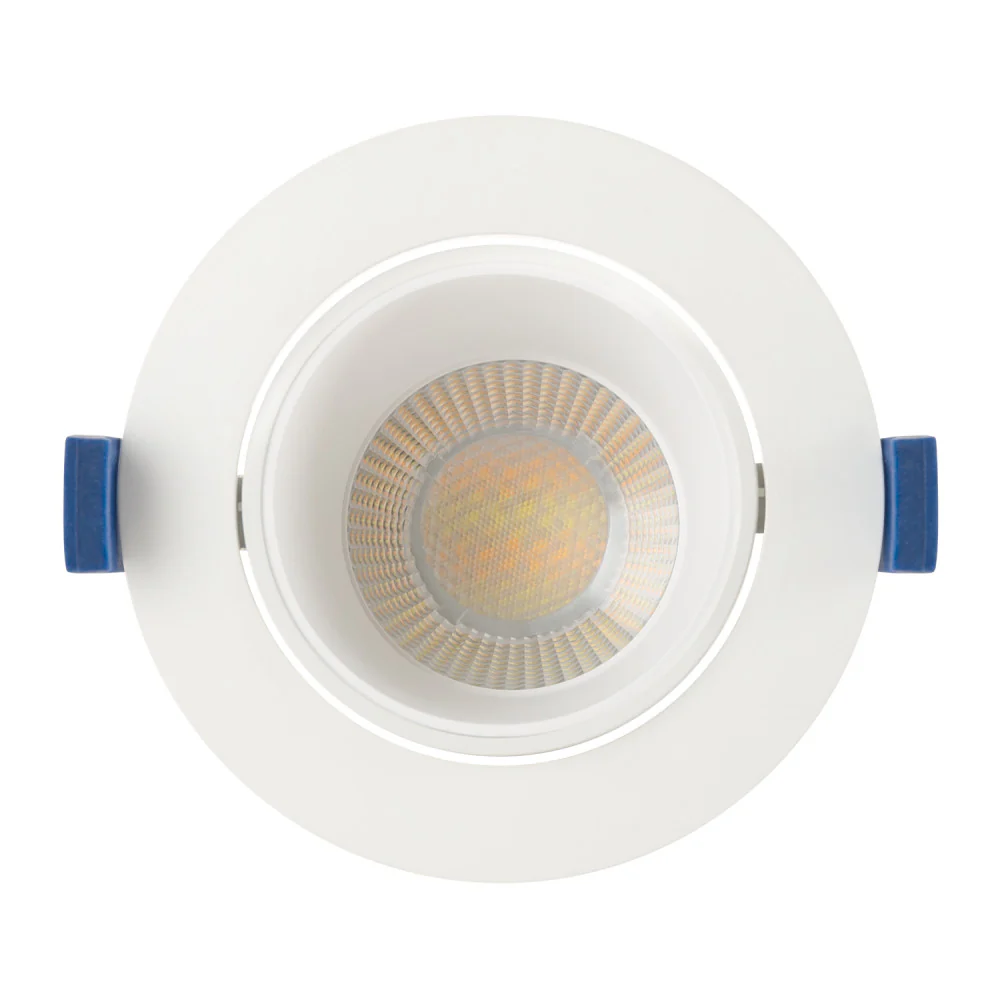

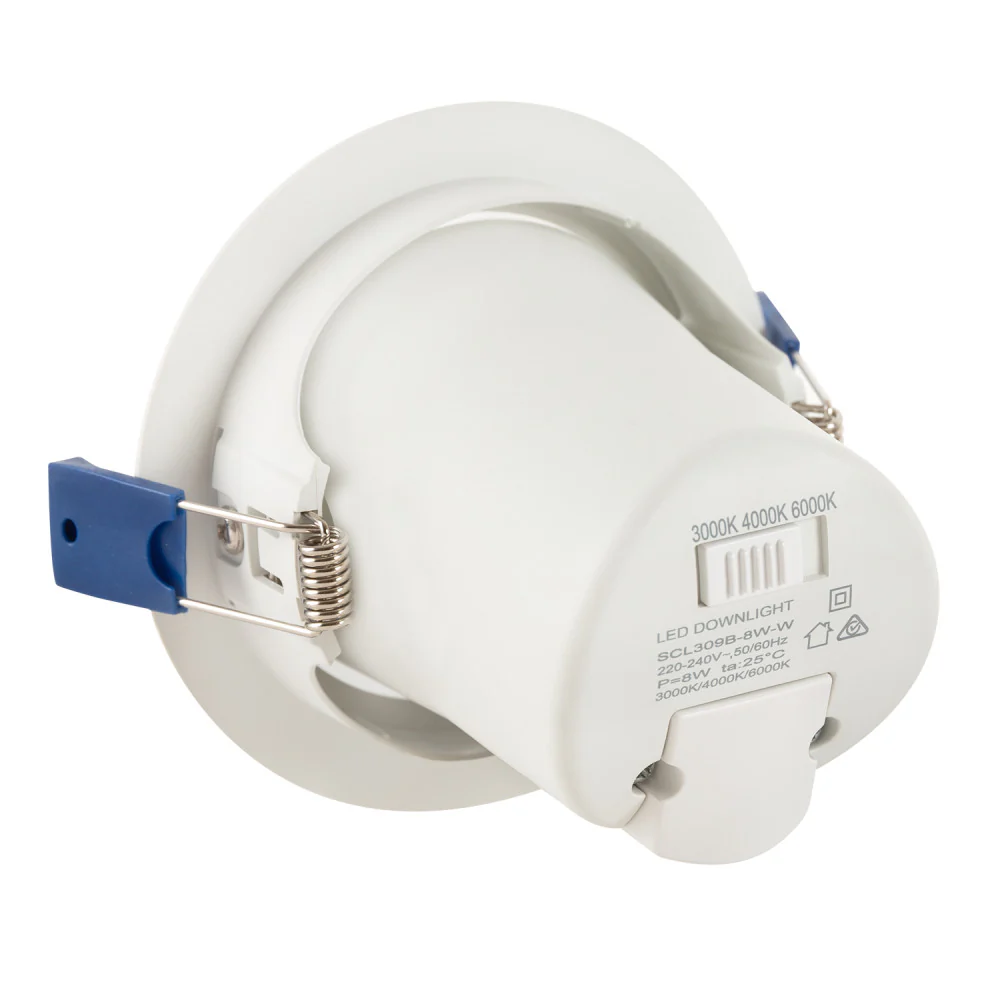

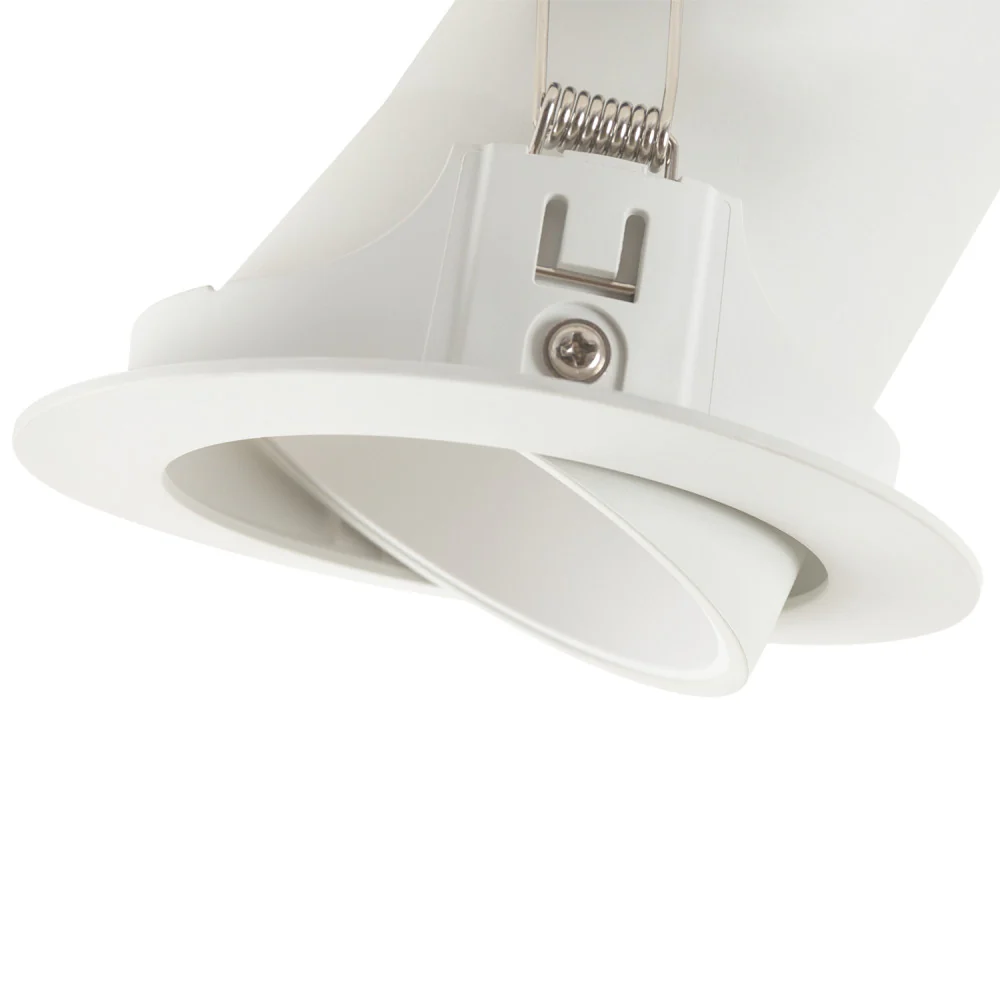

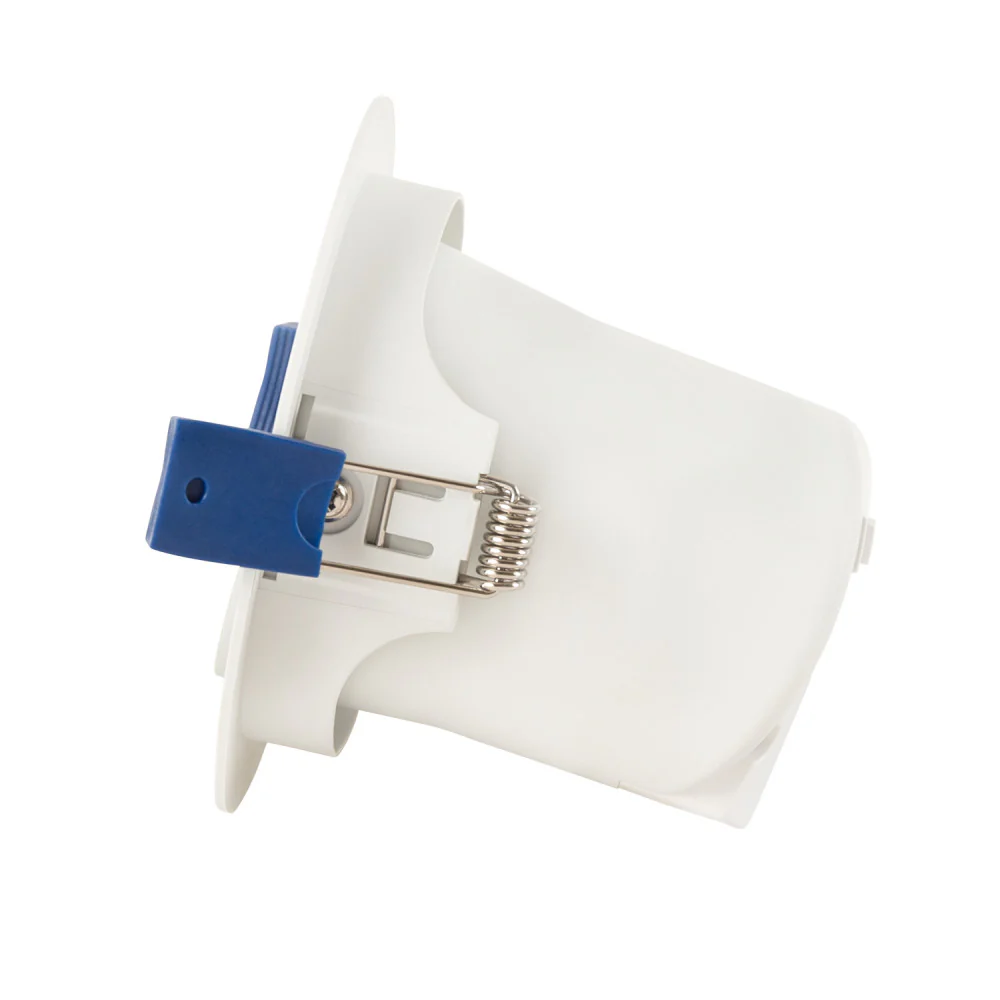

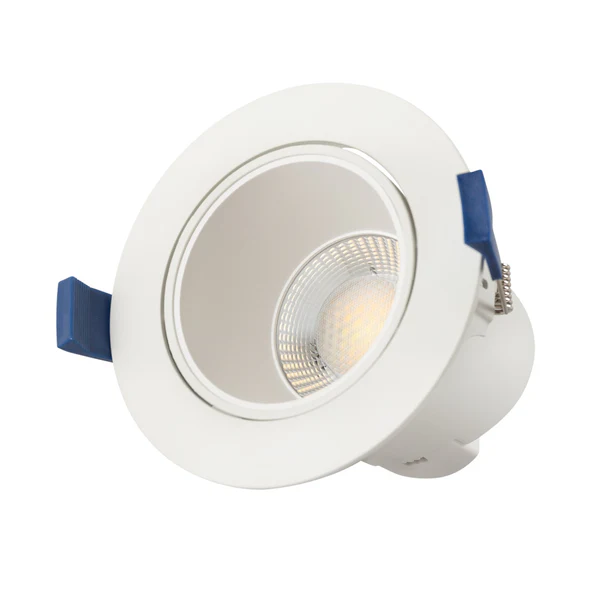

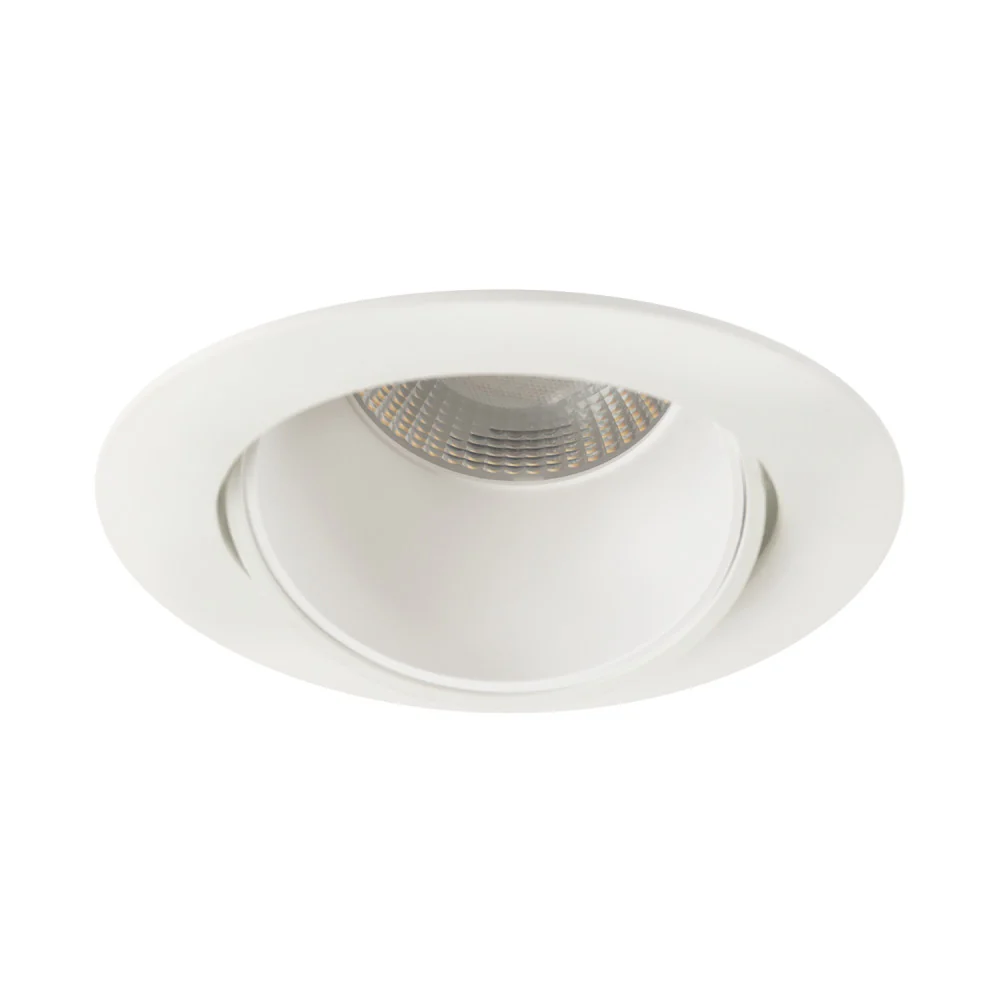

Adjustable LED Downlight 3000–6500ºK Dimmable 60º

Description

The Circular LED Downlight UGR19 with a 90mm cut-out offers lighting solutions for offices, factories, supermarkets, stores, and residential use. It can be directly installed into power outlets supplied by the mains (220–240VAC) with a service frequency of 50/60Hz.

It has high efficiency (90 lm/W), consuming 8W using SMD-type LEDs and delivering a luminous flux of 750 lm evenly distributed through an anti-glare opal diffuser, providing a color rendering index (CRI) of 80. It delivers lighting equivalent to a 50W incandescent bulb, with a consumption of 8 kWh/1000h, reducing both energy costs and greenhouse gas emissions.

Finished in white and built from aluminum and polycarbonate, the downlight has an IP20 protection rating (suitable for dust and indoor humidity) and is robust enough for required mechanical demands.

Manufactured with high-quality materials such as aluminum, it ensures durability. It offers uniform illumination without disturbing glare and is CE and RoHS certified, ensuring quality and safety.

With a high CRI of 80, the downlight provides distortion-free color rendering. This is essential in commercial environments and product display areas like supermarkets, stores, shopping centers, museums, car dealerships, and restaurants.

This downlight is available in CCT adjustable color temperatures: neutral white (4200°K), cool white (6500°K), and warm white (3000°K). The indicated color temperature may vary within a 7% tolerance.

Technical Data

Product code: LM-068-8W-W-CCT

Light temperature: CCT

Power (W): 8.0

Luminous flux (lm): 750

Luminous efficacy (lm/W): 93

LED efficiency: 102

LED type: SMD2835 Lumileds

Dimensions (mm): Ø100x87

Ceiling cut-out (mm): Ø90

Height (mm): 87.0

Diameter (mm): 100

CRI: 80

UGR: <19

Power factor (PF): 0.99

Construction: Aluminum/PC

Beam angle (°): 60°

Installation: IP20

Input voltage range: 220–240VAC

Estimated lifespan (h): 50000

Insulation class: II

Operating frequency (Hz): 50/60

Start-up time (s): 0.1

Certifications: CE/ROHS/ISO9001

Operating temperature range (°C): -20 to +40

Switching cycles: 100000

Energy consumption (kWh/1000h): 8.0

Half-year lifetime (3 h/day): 45.66

Half-year lifetime (5 h/day): 27.39

Half-year lifetime (8 h/day): 17.12

CRI range: 80–90

CCT range (K): 3000–6500
