LED Spotlight 2700K

Description

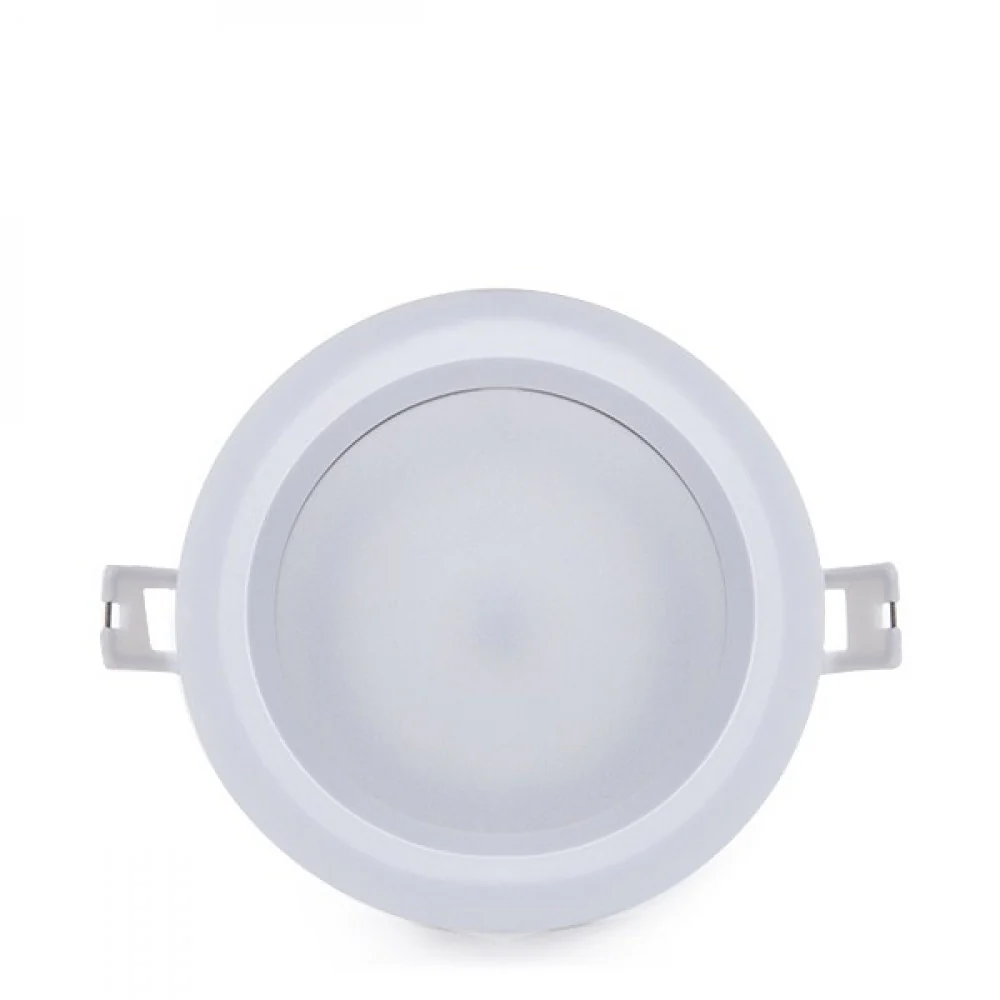

The circular LED downlight with a diameter of 108 mm, thickness of 51 mm, and cut-out size of 92 mm, offers lighting solutions for both indoor and outdoor spaces. It can be installed directly into mains power outlets (85–265 VAC) with an operating frequency of 50/60 Hz.

It has high efficiency (90 lm/W) while consuming 15W through LEDs, providing a luminous flux of 1350 lm evenly distributed through an opal plastic diffuser with a color rendering index (CRI) of 80. It delivers lighting equivalent to a 100W incandescent bulb, consuming 15 kWh/1000h, significantly reducing billed energy use and pollutant emissions.

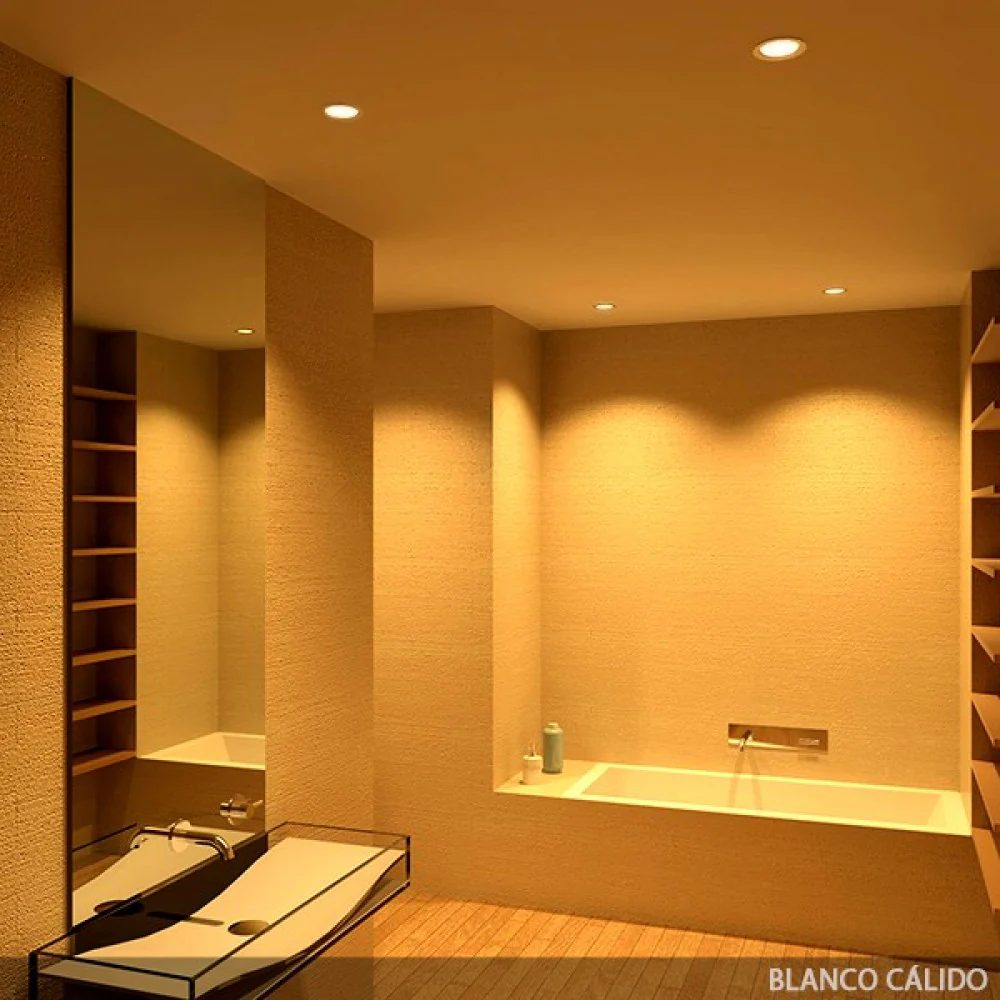

Made of PC with recessed mounting, this LED fixture is suitable for indoor areas, especially bathrooms and humid environments, and also for covered outdoor spaces thanks to its IP65 protection rating. It has a lifespan of 30,000 hours.

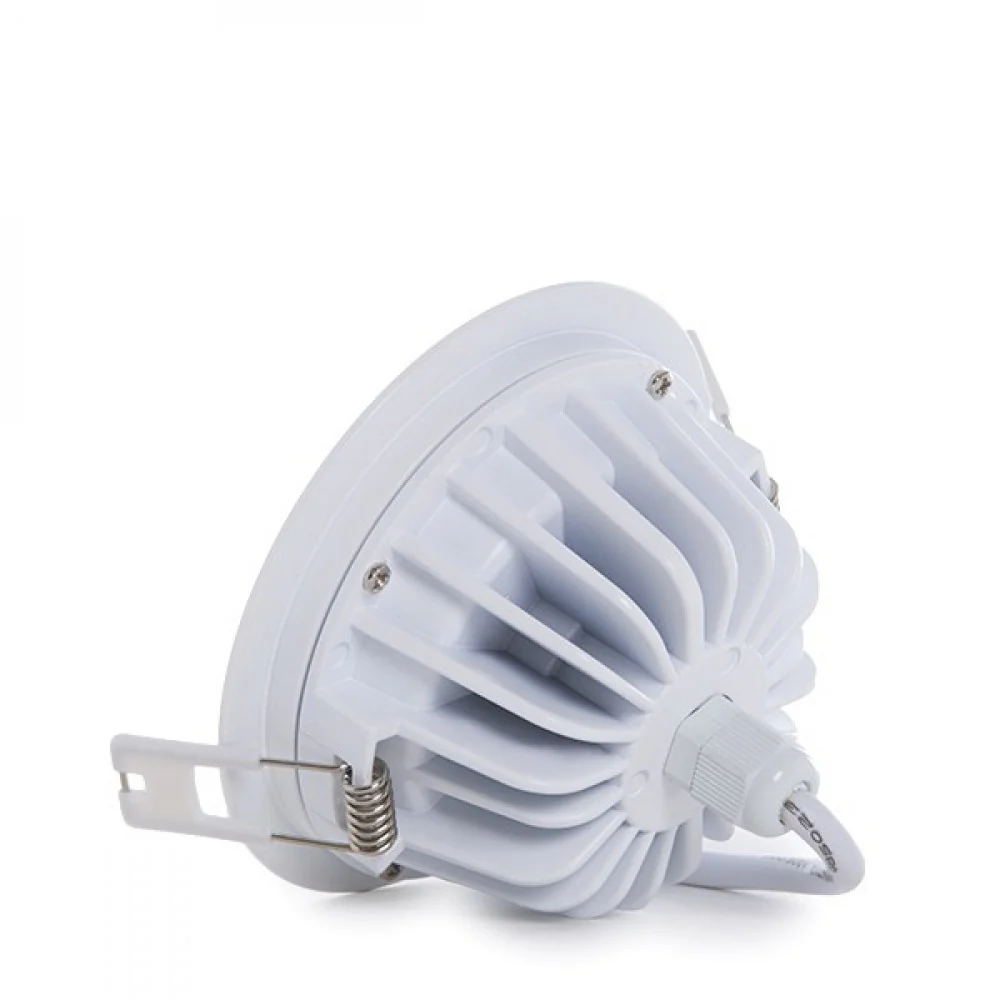

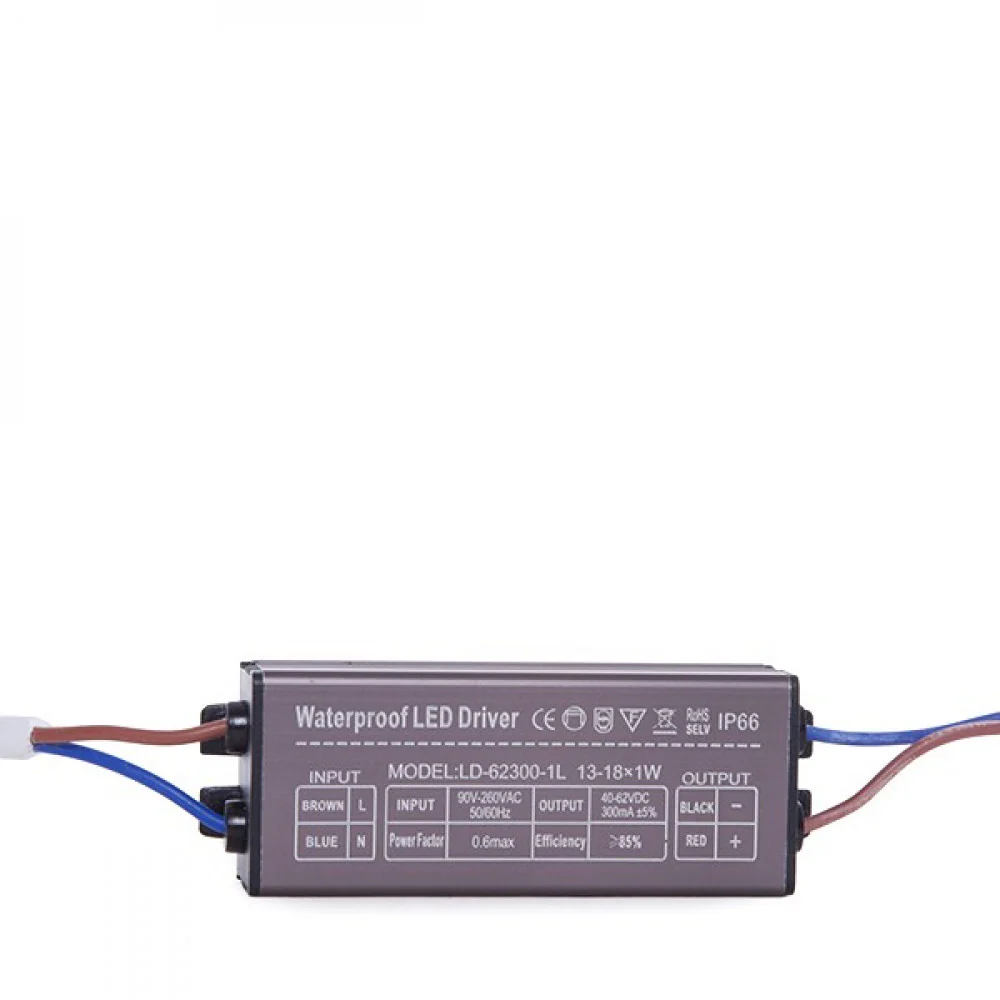

The downlight includes a driver that must be connected directly to the mains, with a compatible output connector (40–62 VDC, 300 mA) and all necessary installation accessories. The white-finished downlight is constructed with aluminum and offers IP65 protection (dust and moisture resistance) and sufficient mechanical durability.

This downlight is available in cool white (6000 K) and warm white (3000 K). The indicated color temperature may vary within a 7% tolerance.

Technical File

Product Code: LM-064

Light Temperature: Neutral White

Kelvin: 2700

Power (W): 15.0

Luminous Flux (lm): 1263

Luminous Efficacy (lm/W): 84

LED Performance: 92

LED Type: Epistar LED

Dimensions (mm): Ø108 x 51

Ceiling Cut-Out (mm): Ø92

Height: 51.0

Diameter: 108

CRI: 80

UGR: ≤19

Diffuser: Microprismatic

Power Factor: 0.98

Material: Aluminum/PC

Beam Angle (º): 120

Protection Rating: IP65

Voltage Range: 85–265 VAC

Driver Output: DC72–96V

Estimated Lifespan (h): 50,000

Dimmable: No

Equivalent Power (W): 100

Insulation Class: II

Frequency (Hz): 50/60

Start Time (s): 0.1

Energy Class: G

Certifications: CE/ROHS/ISO9001

Connector: Terminal

Temperature Range (ºC): -20 to +60

Switching Cycles: 100,000

Power Consumption (kWh/1000h): 15.0

Weight (g): 380

Flicker: 0.42

Half-Year Lifespan (3 h/day): 45.66

Half-Year Lifespan (5 h/day): 27.39

Half-Year Lifespan (8 h/day): 17.12

Directional: Non-directional

Single CCT: 2700

R9 Index: 4

CRI Min Range: 95

CRI Max Range: 22

Chromaticity x: 0.437

Chromaticity y: 0.405

Applicable Standards: EN 55015:2009, EN 61547:2009, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 60598-2-2:2012, EN 60598-1:2009, EN 1122B:2001
