LED Downlight Spotlight 2700ºK Anti-Glare

Description

The circular LED downlight with a diameter of 117mm and thickness of 60mm offers lighting solutions for offices, factories, supermarkets, stores, and residential use. It can be directly installed in sockets powered by the mains (86-265VAC) with an operating frequency of 50/60Hz.

It features high efficiency (140 Lm/W), consuming 9W through a SMD2835 type LED and delivering a luminous flux of 1260Lm evenly distributed through an opal anti-glare diffuser with a color rendering index of 80. It provides illumination equivalent to a 70W incandescent lamp, consuming 9kWh/1000h, reducing billed energy consumption and pollutant gas emissions.

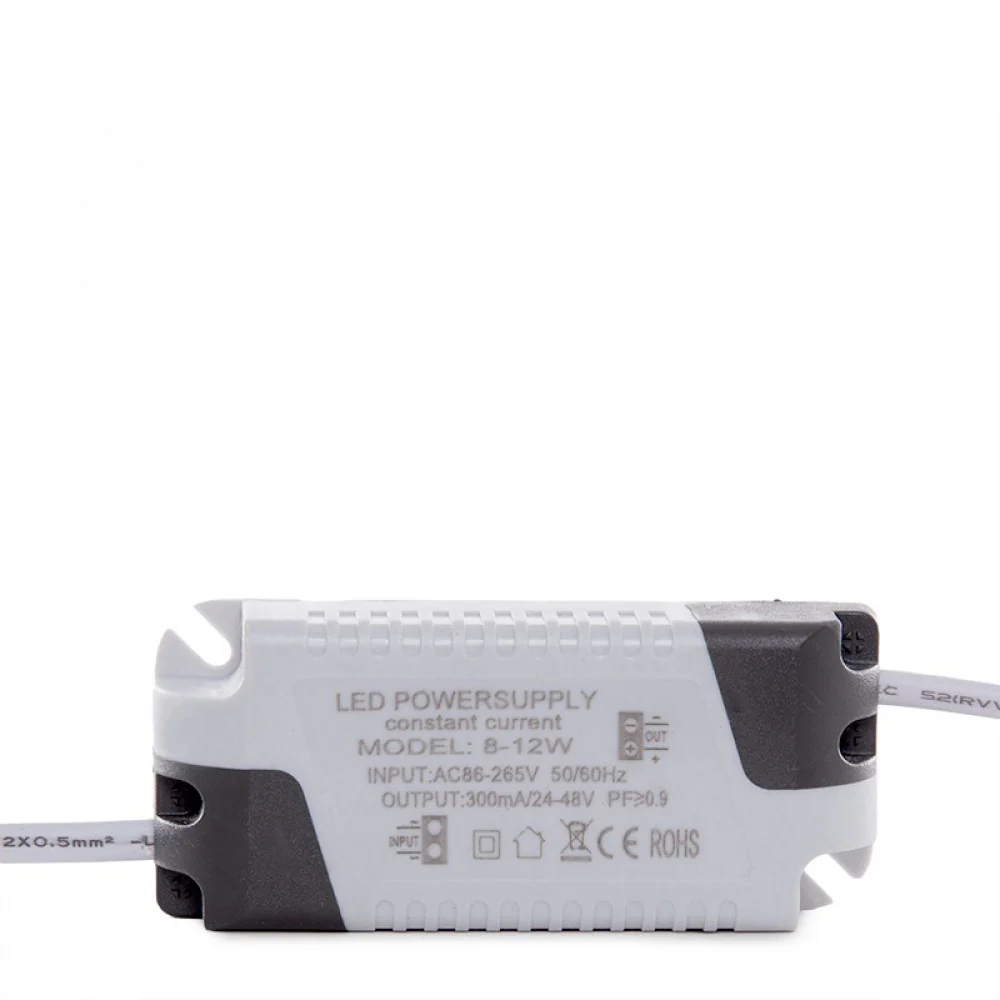

This downlight is powered by a non-dimmable driver included in the package, to be connected directly to the power supply, with an output connector compatible with the downlight connection (24-48VDC, 300mA). Required installation accessories are also included. White finish made of aluminum and polycarbonate. It has an IP20 protection rating (suitable for indoor dust and humidity), and is robust enough for mechanical demands.

Made from high-quality materials such as aluminum, it ensures durability. It offers uniform lighting without uncomfortable glare. Additionally, it is CE and RoHS certified, ensuring quality and safety.

The downlight features a high color rendering index (CRI 80), ensuring accurate color reproduction—crucial for commercial spaces and product display areas such as supermarkets, stores, malls, museums, dealerships, restaurants, etc.

This downlight is available in neutral white (4200°K), cool white (6000°K), and warm white (3000°K). The specified color temperature may vary within a 7% tolerance.

Technical File

Product code: LM-066

Light temperature: NW

Kelvin: 2700

Power (W): 9.0

Luminous flux (LM): 1260

Luminous efficacy (LM/W): 140

LED performance: 154

LED type: Philips LED

Dimensions (mm): Ø118x60

Ceiling cut (mm): Ø95

Height: 60.0

Diameter: 118

CRI: 80

UGR: <19

Diffuser: Microprismatic

Power factor (PF): 0.98

Construction: Aluminum/PC

Beam angle (º): 120

Installation: IP20

Voltage range: 85-265VAC

Driver output: DC24-48V

Estimated lifespan (h): 40000

Dimmable: No

Equivalent (W): 80

Insulation class: II

Working frequency (Hz): 50/60

Startup time (s): 0.1

Energy class: G

Certificates: CE/ROHS/ISO9001

Socket: terminal

Temperature range (ºC): -20 +40

Switching cycles: 100000

Energy consumption (kWh/1000h): 9.0

Weight (g): 240

Flicker: 0.9

Half-year lifespan (3h/day): 36.52

Half-year lifespan (5h/day): 21.91

Half-year lifespan (8h/day): 13.69

Directional: Non-directional

CCT range: Single

CCT: 2700

R9 Index: 4

Min CRI: 98

Max CRI: 11

Chromaticity x: 0.437

Chromaticity y: 0.41

Additional information: Dimming possible with optional dimmable controller (see Accessories tab)

Applicable standards:

EN 55015:2009; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008;

EN 60598-2-2:2012; EN 60598-1:2009; EN 1122B:2001
