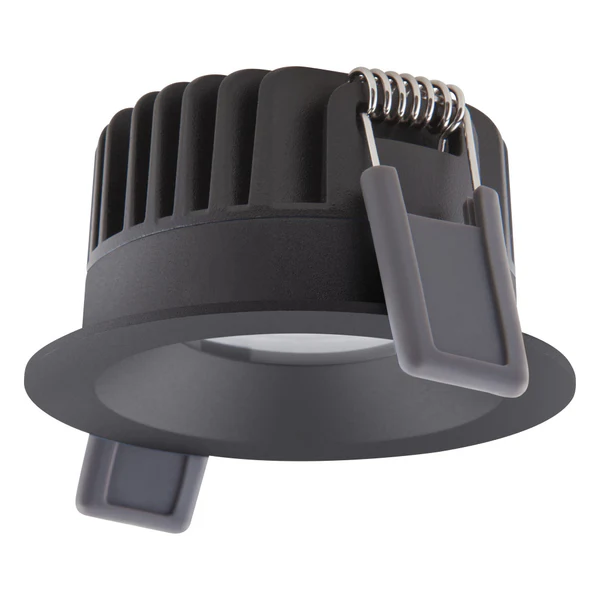

LED Spotlight 3000K 36º

Description

Recessed indoor spotlight, fixed.

Product Features:

• Color rendering index: 90
• Protection type: IP44 (room side)
• Beam angle: 36°
• Die-cast aluminum body
• Springs protected with silicone pads
• Dimmable (compatible with many common dimmers)
• Wiring possible

Product Benefits:

• Up to 90% energy savings compared to halogen spots
• Powerselect: brightness adjustment via DIP switches on the driver
• Easy replacement of external driver thanks to bayonet lock plug
• Easy installation and electrical connection with tool-free connectors
• SCALE design: excellent appearance, quality materials, and compact size suitable for any space
• 5-year warranty

Application Areas:

• Direct replacement for recessed spots with halogen lamps
• General lighting
• Hotel rooms and hallways
• Restaurants, bars
• Accent lighting
• Galleries, museums
• Residential interiors

Equipment / Accessories:

• External control gear included, with DIP switches for power selection during installation
• Trims available as accessory
• Selected DALI 2.0 driver available as accessory

Technical File

• Product Code: LM-060
• Light Temperature: Neutral White
• Kelvin: 3000
• Power: 8.0 W
• Luminous Flux: 680 lm
• Luminous Efficacy: 85 lm/W
• LED Performance: 93
• Dimensions (mm): 42 x Ø81
• Height: 42.0 mm
• Diameter: 81 mm
• CRI: 90
• Power Factor (PF): 0.9
• Construction: Aluminum
• Beam Angle: 36°
• Installation: IP44/IP20
• Voltage Range: 220–240VAC
• Estimated Lifespan: 50,000 h
• Dimmable: Yes (with compatible dimmers)
• Operating Frequency: 50/60 Hz
• Terminal Type: Terminal
• Switching Cycles: 100,000
• Power Consumption (kWh/1000h): 8.0
• Weight: 300 g
• Half-Year Lifetime (3h/day): 45.66
• Half-Year Lifetime (5h/day): 27.39
• Half-Year Lifetime (8h/day): 17.12
• Single CCT: 3000 K
• Finish: Black
