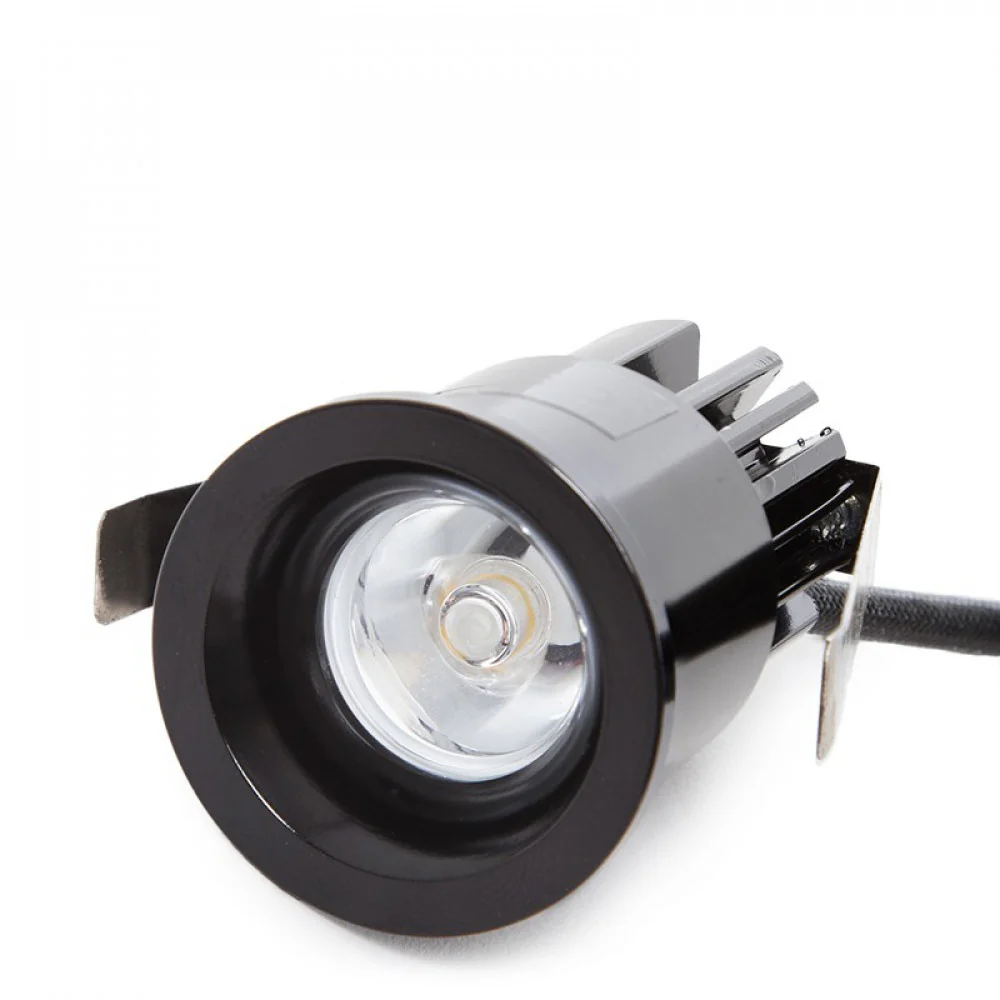

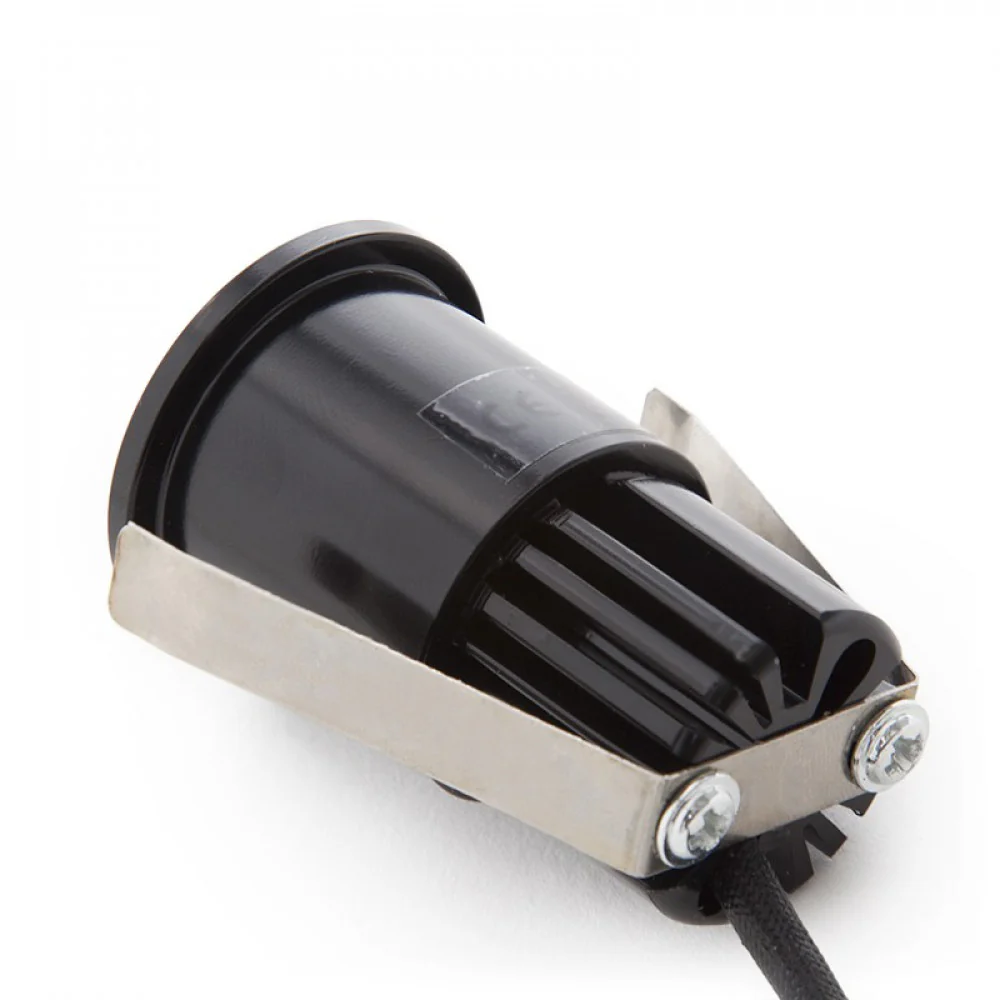

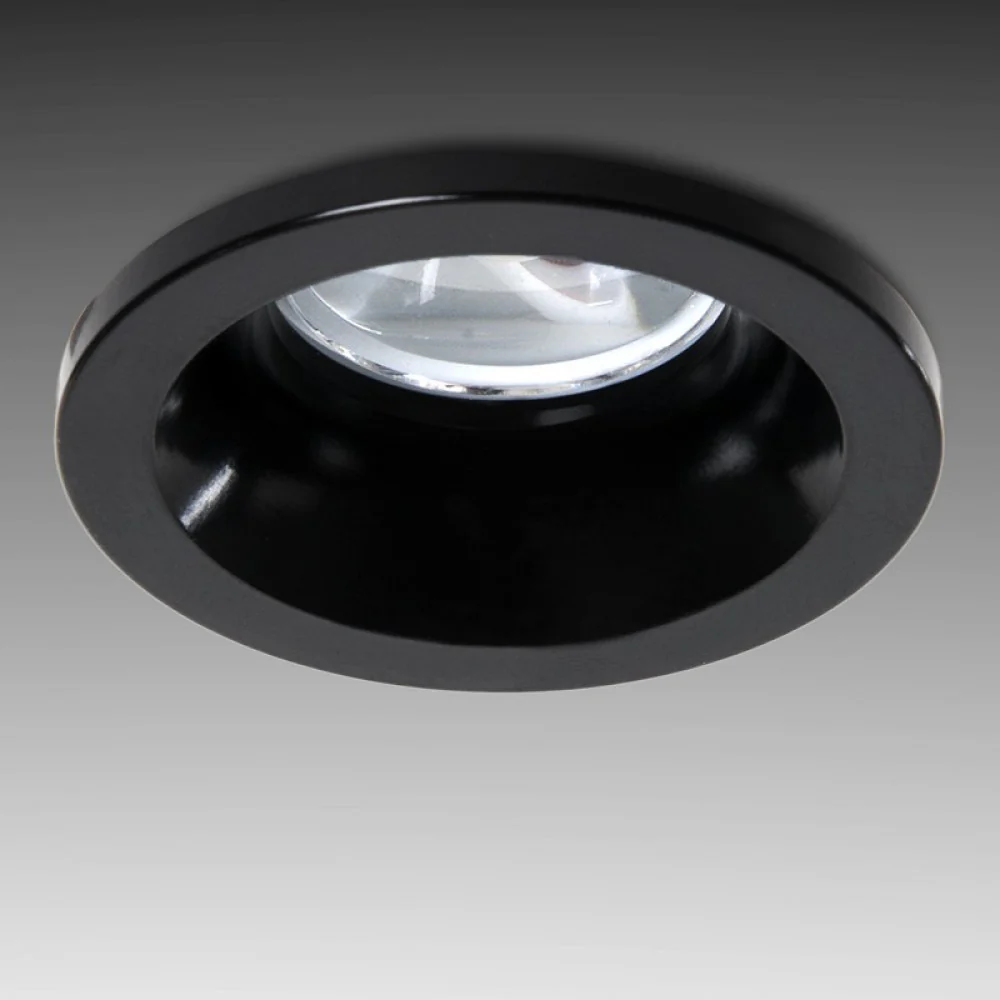

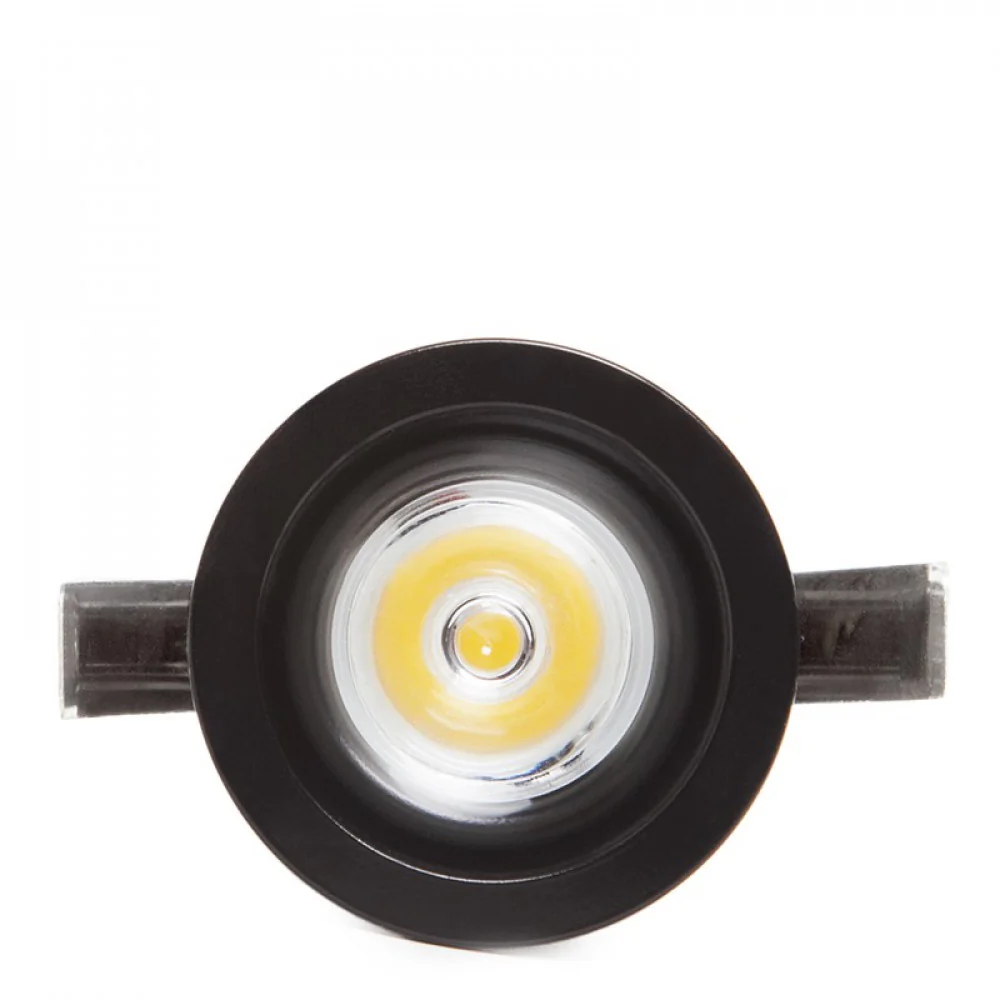

LED Recessed Light 2700ºK - 6000ºK

Description

The recessed LED spotlight is ideal as ambient or marker lighting in indoor spaces.

The light emitted by the downlight is high quality and focused at a 45º beam angle. It is mainly used as decorative or auxiliary lighting in many indoor spaces, both residential and commercial. Made of aluminum, it offers a long estimated lifetime of 30,000 hours and comes with a two-year warranty.

Technical File

Product Code: LM-069

Light Temperature: NW

Kelvin: 2700

Power (W): 2.0

Luminous Flux (LM): 167

Luminous Efficacy (LM/W): 83

LED Efficiency: 91

LED Type: Epistar LED

Dimensions (mm): Ø35x48

Ceiling Cut-out (mm): Ø33

Height: 48.0

Diameter: 35

CRI: 80

Diffuser: Frosted

Power Factor (PF): 0.98

Construction: Aluminum/PC

Beam Angle (º): 45

Installation: IP20

Voltage Range: 85-265VAC

Driver Output: DC9-11V

Estimated Lifetime (h): 40000

Dimmable: No

Incandescent Equivalent (W): 18

Insulation Class: II

Operating Frequency (Hz): 50/60

Start Time (s): 0.1

Energy Class: G

Certifications: CE/ROHS/ISO9001

Terminal: Terminal

Temperature Range (ºC): -20 to +40

Switching Cycles: 80000

Energy Consumption (kWh/1000h): 2.0

Weight (g): 60

Flicker: 0.8

Half-Year Lifetime (3 h/day): 36.52

Half-Year Lifetime (5 h/day): 21.91

Half-Year Lifetime (8 h/day): 13.69

Directional: Directional

CCT Range: Single

Single CCT: 2700

R9 Index: 13

Minimum CRI Range: 97

Maximum CRI Range: 23

Chromaticity x: 0.378

Chromaticity y: 0.384

Applicable Standards: EN 55015:2009; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EN 60598-2-2:2012; EN 60598-1:2009; EN 1122B:2001
