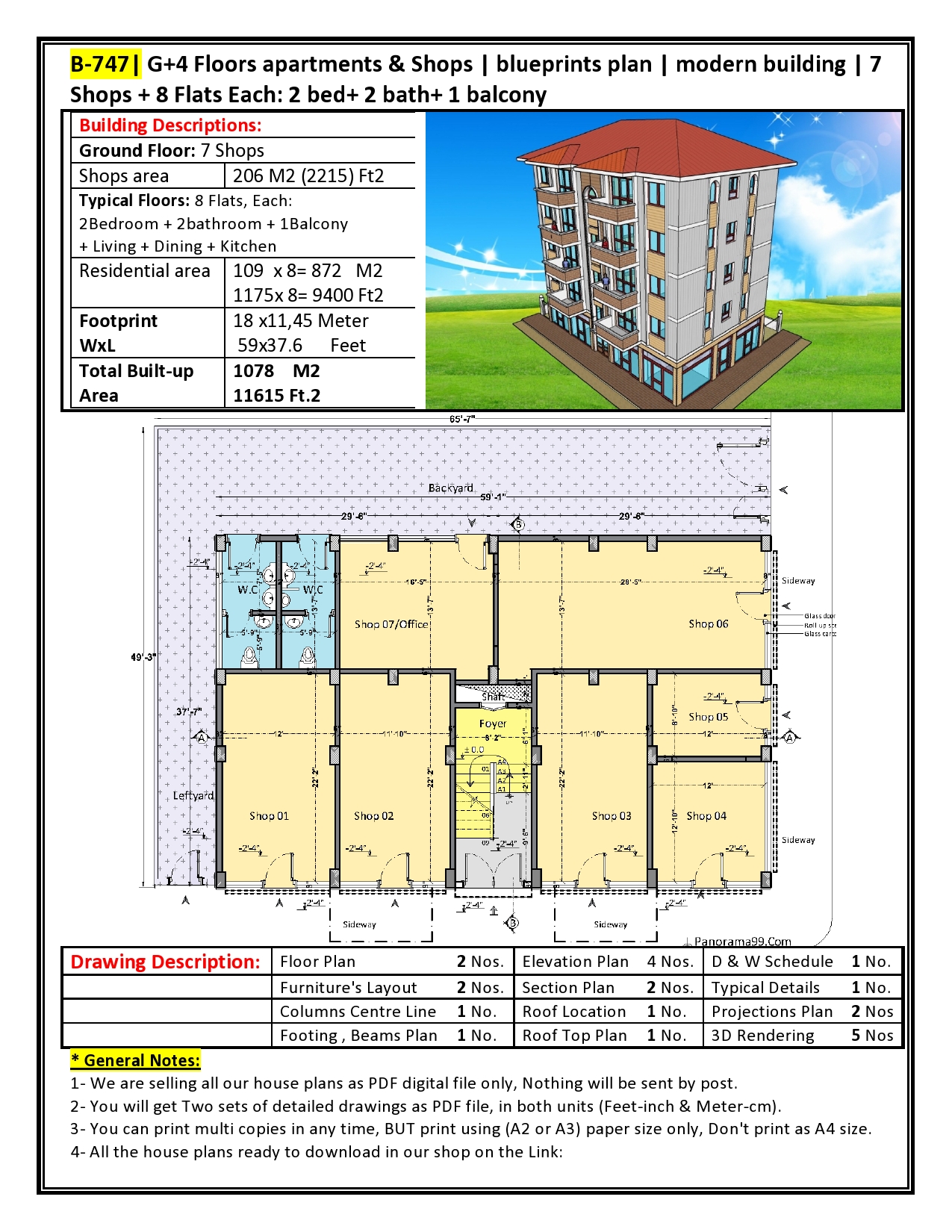

B-747| G+4 Storey residential commercial building | blueprints modern apartment plan | 7 Shops + 8 Apartments Each: 2 bed+ 2 bath+ 1 balcony

B-747

------------

Building Description:

-------------------------

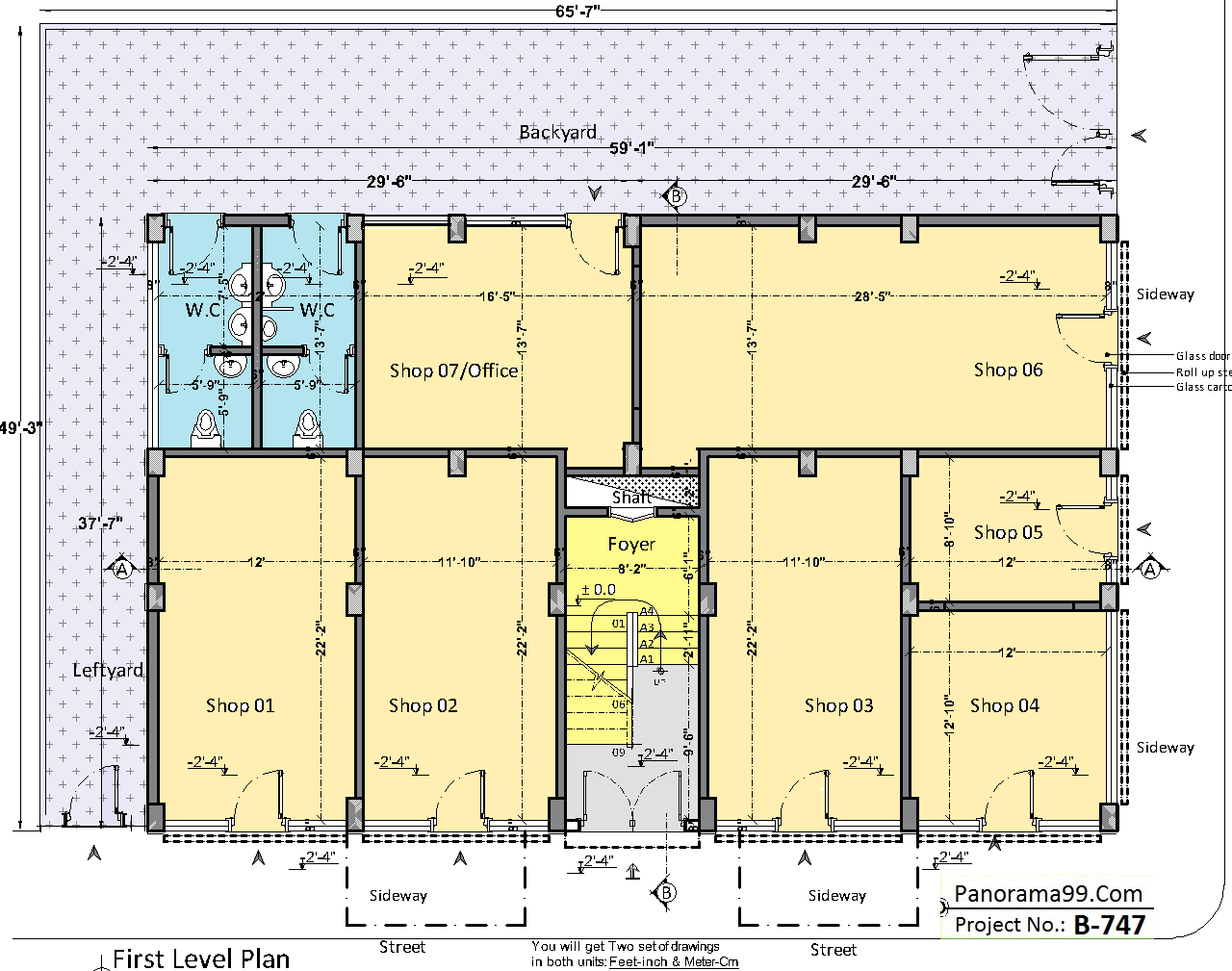

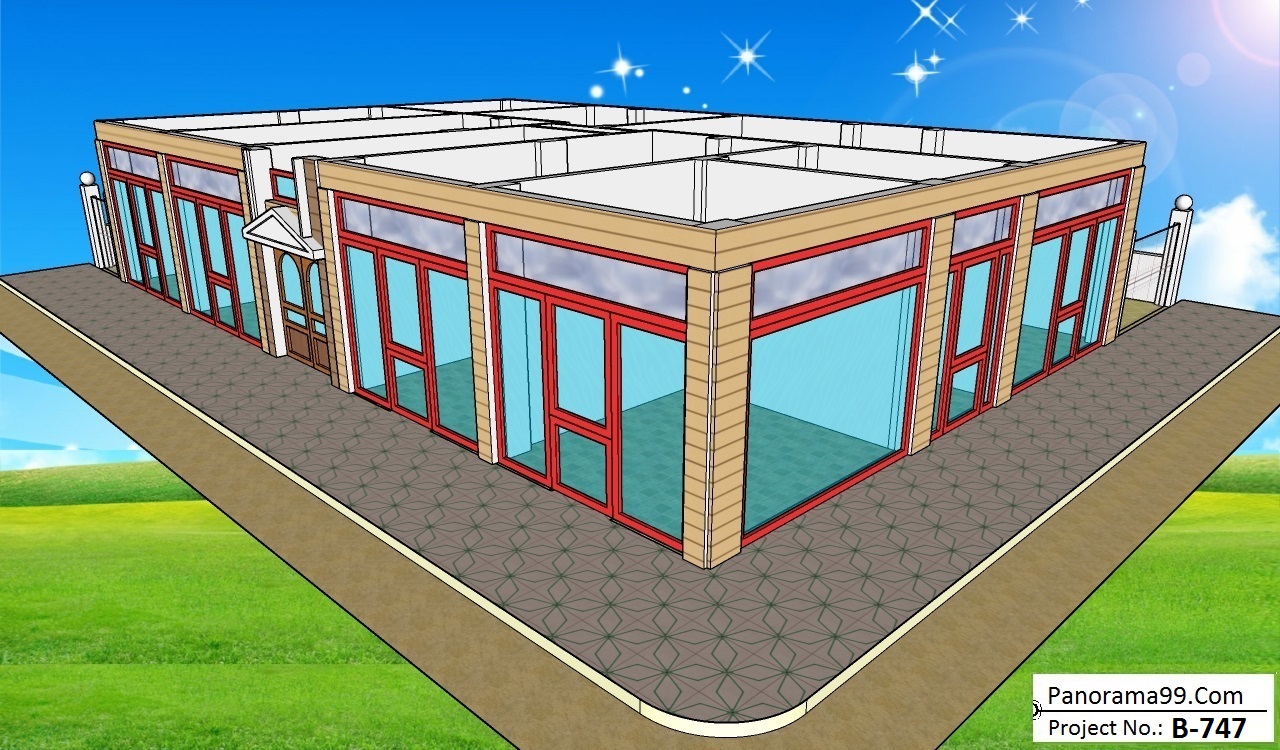

Ground Floor: 7 Shops

Shops Area:

(206 M2) = (2215 Ft2)

-------------------------

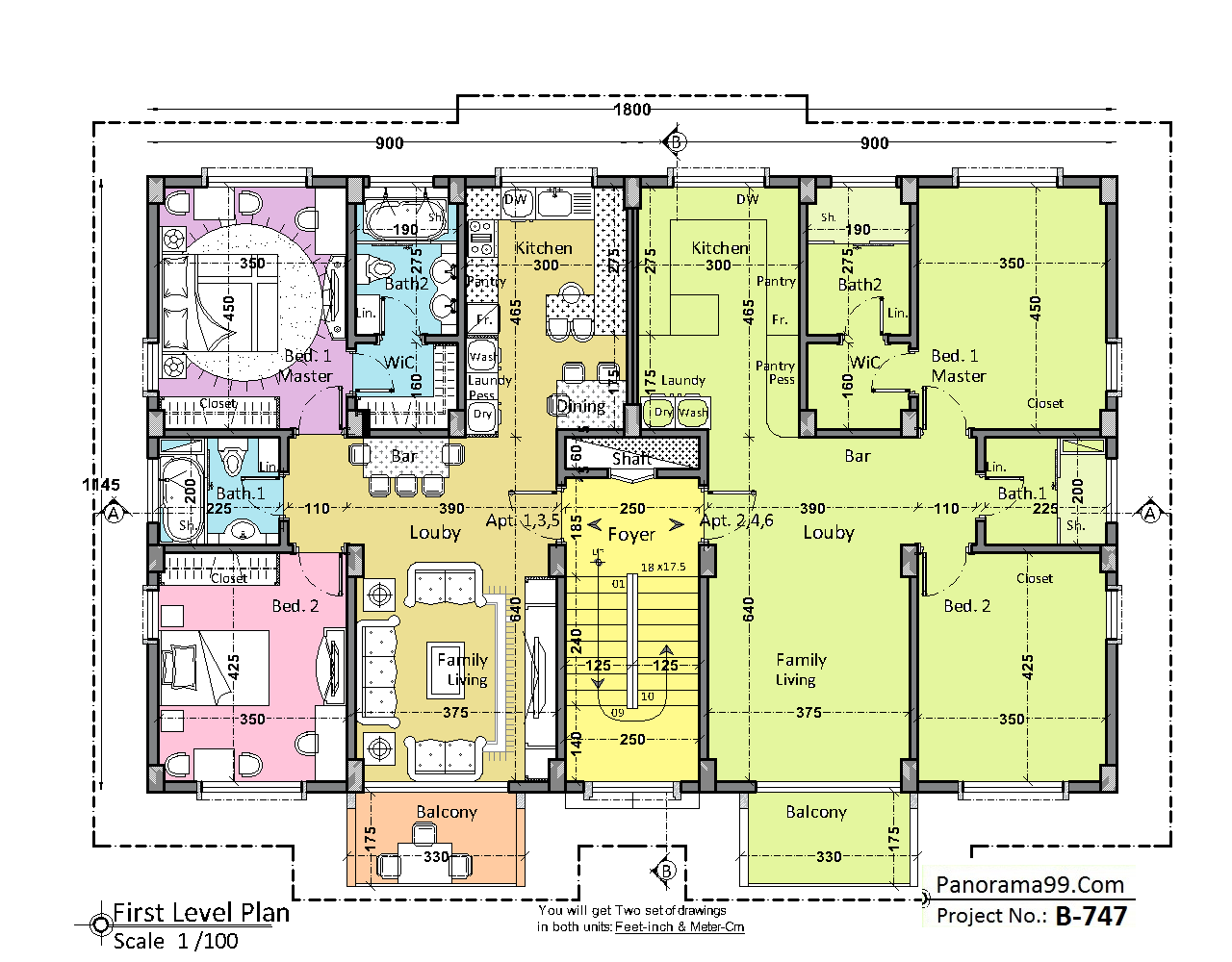

Typical Floors: 8 Flats

Each Flat:

2Bedroom + 2bathroom + Balcony + Living + Kitchen + Dining

Residential Area:

(109x8 = 872 M2) = (1175x 8= 9400 Ft2)

-------------------------

Total Built-up Are:

206+872 = (1078 M2)

2215+9400 = (11615 Ft.2)

-------------------------

Footprint WxL:

(18 x11,45 Meter) = (59x37.6 Feet)

-------------------------

Drawings Description:

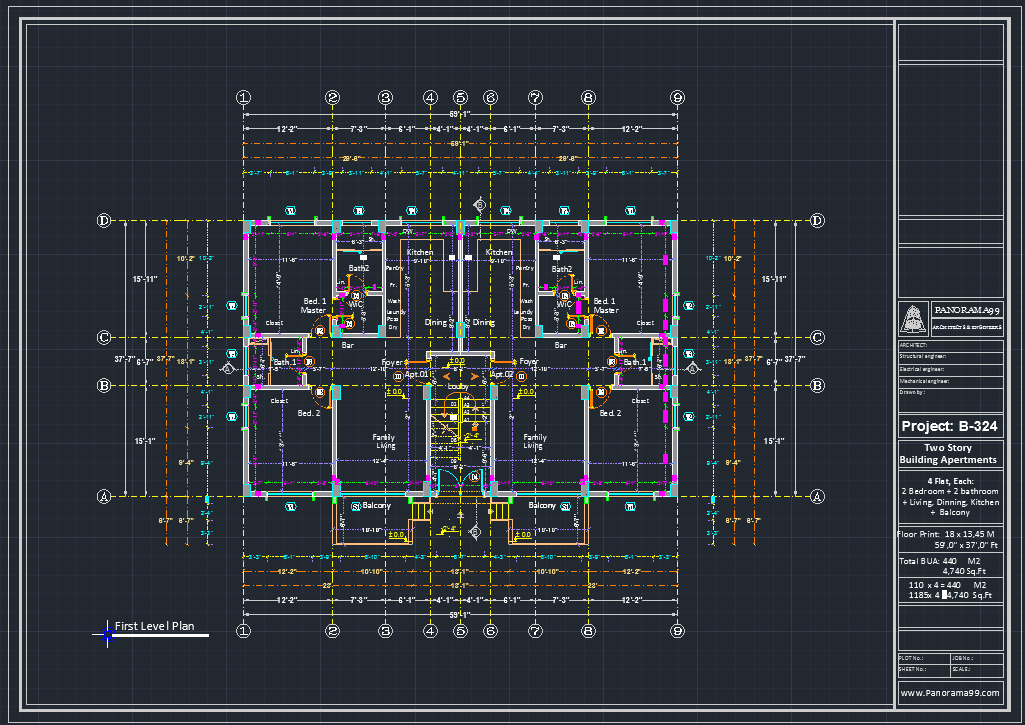

Floor Plan 2 Nos.

Furniture Layout 2 Nos.

Elevation Plan 4 Nos.

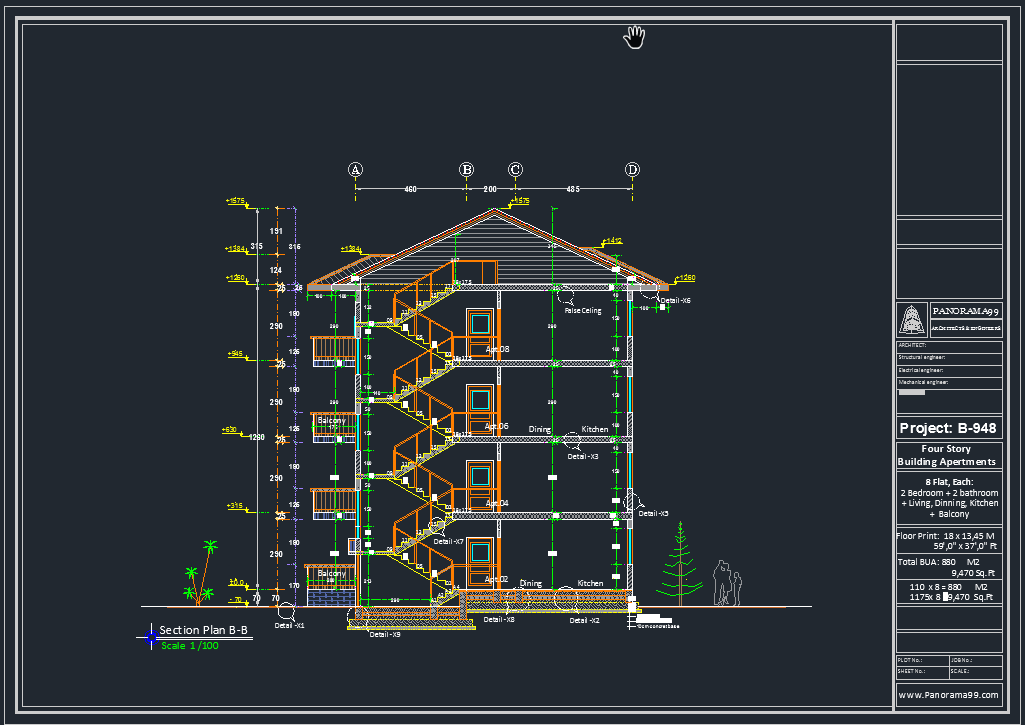

Section Plan 2 Nos.

Roof Location 1 No.

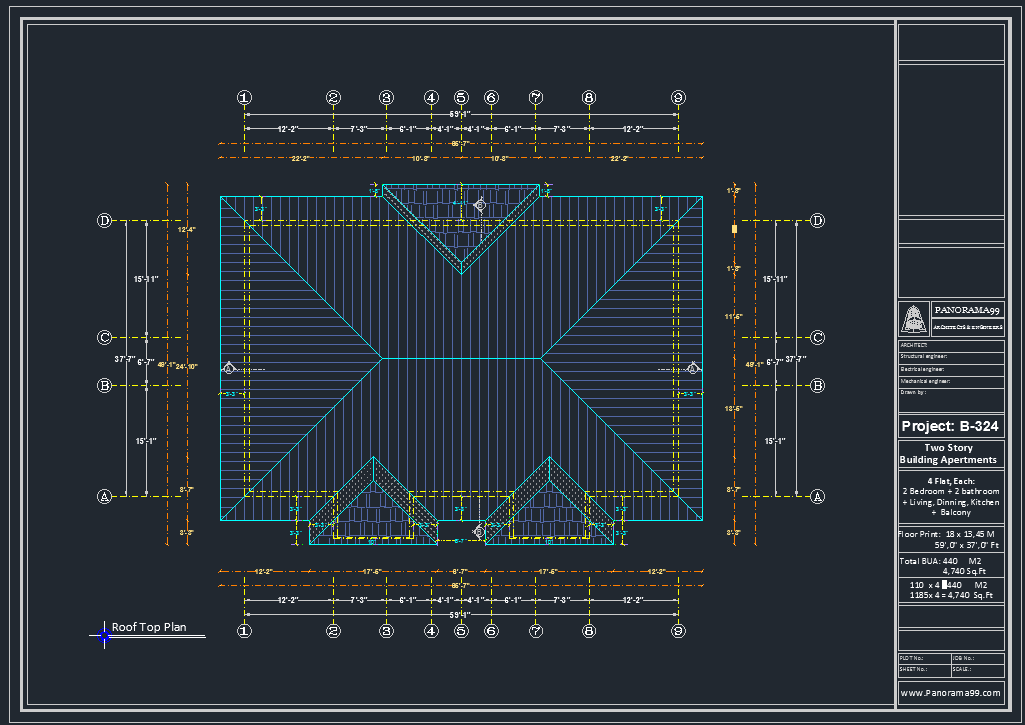

Roof Top Plan 1 No.

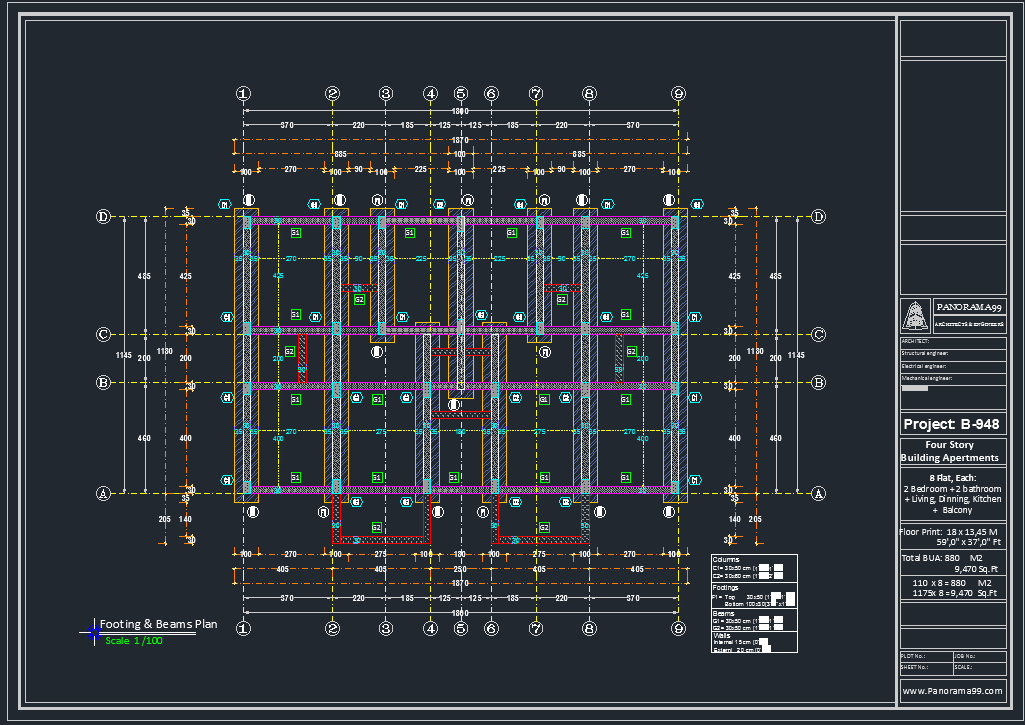

Foundation Beams 1 No.

Columns Centre 1 No.

Typical Details 1 No.

D & W Schedule 1 No.

3D Rendering 5 Nos.

-----------

* General Notes:

1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.

2- You will get Two Sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).

3- please print using (A2 or A3) paper size only, Don't print in A4.

4- All the house plan drawings are ready to download.
