B-736 | Modern building apartments, Three story residential building plan, 6 flats with 3-4 bedroom + 2.5 bath. and concrete terrace roof

Project No. B-736 (6 Apartments)

------------------------

Building Description:

  ----------------

3 Typical Apartments, Each:

3 Bedroom + 2.5 bath + 2 balcony + Family Living, Dinning, Kitchen, Pantry, Laundry

Area 164 M2 = 1765 Sq. Ft

  ----------------

3 Typical Apartments, Each:

4 Bedroom + 2.5 bath + 2 balcony + Family Living, Dinning, Kitchen, Pantry, Laundry

Area 177 M2 = 1905 Sq. Ft

  ----------------

Footprint WxL:

27,3 x 15,7 Meter = 89,7 x 51,6 Feet

  ----------------

Total Built Area

1023 M2 = 11000 Sq. Ft

164 x 3 = 492 M2 (1765 x 3 = 5295 Sq. Ft)

177 x 3 = 531 M2 (1905 x 3 = 5715 Sq. Ft)

  ----------------

Drawing Description:

Furniture's Layout   2 Nos.

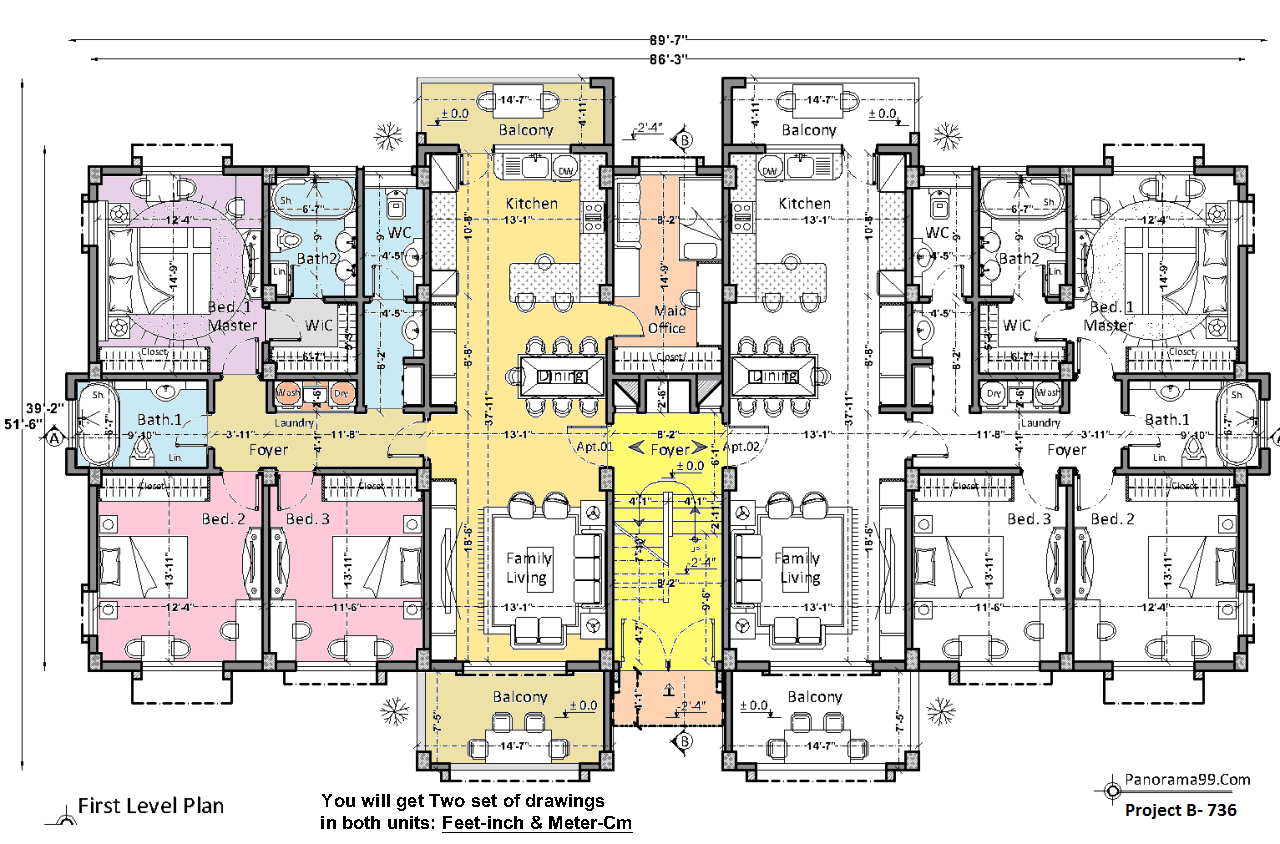

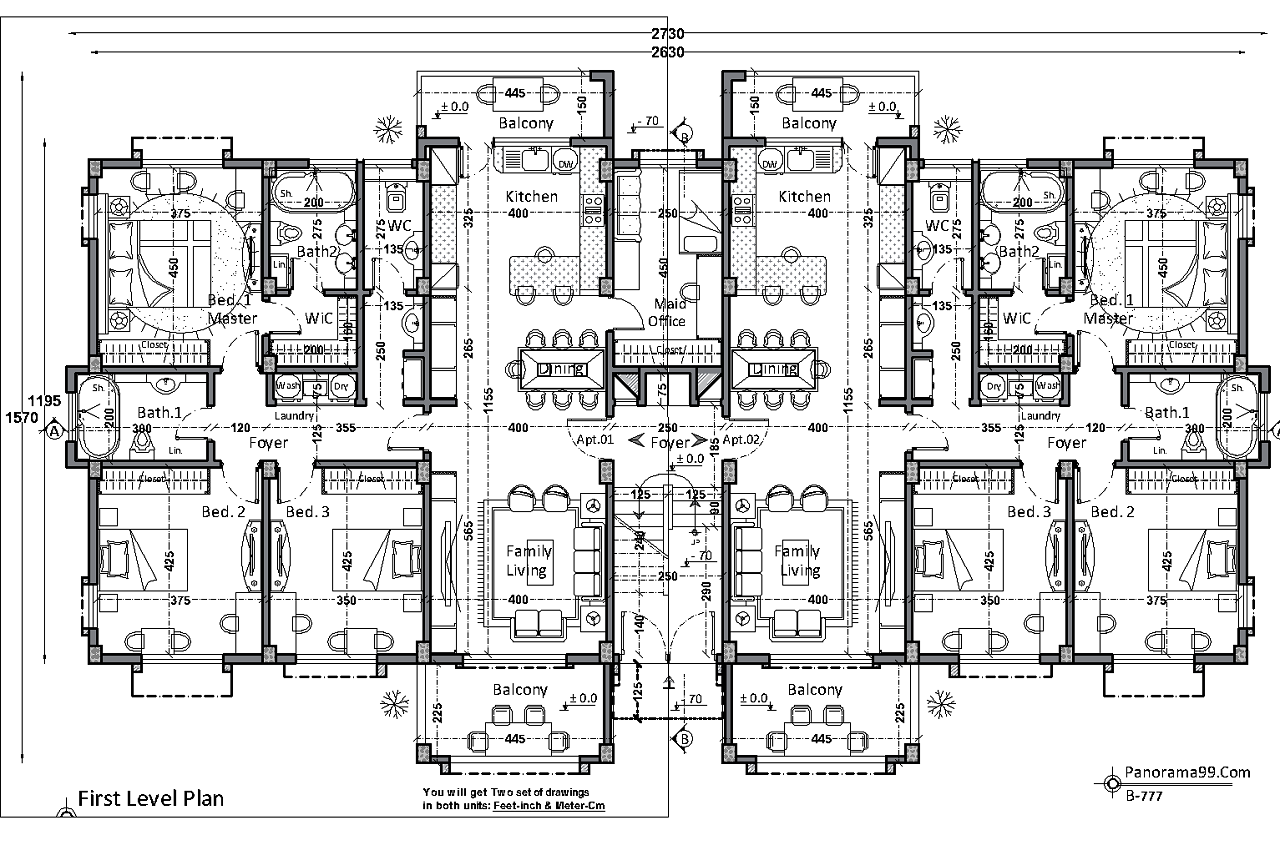

Floor Plan                2 Nos.

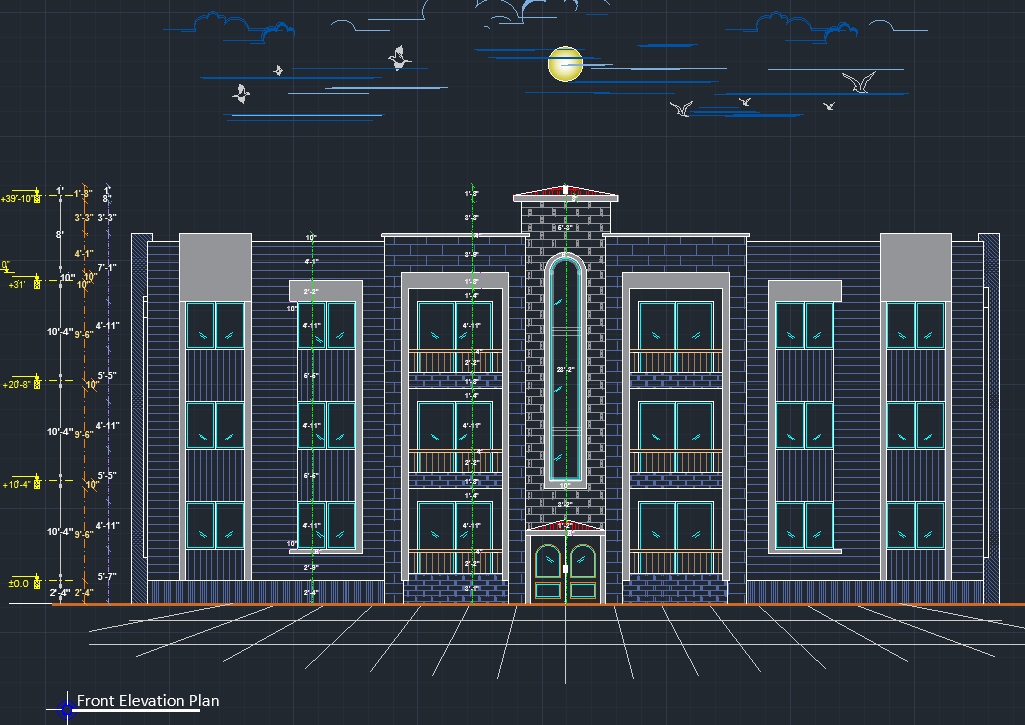

Elevation Plan          4 Nos.

Section Plan            2 Nos.

Roof Top Plan          1 No.

Columns centre        1 No.

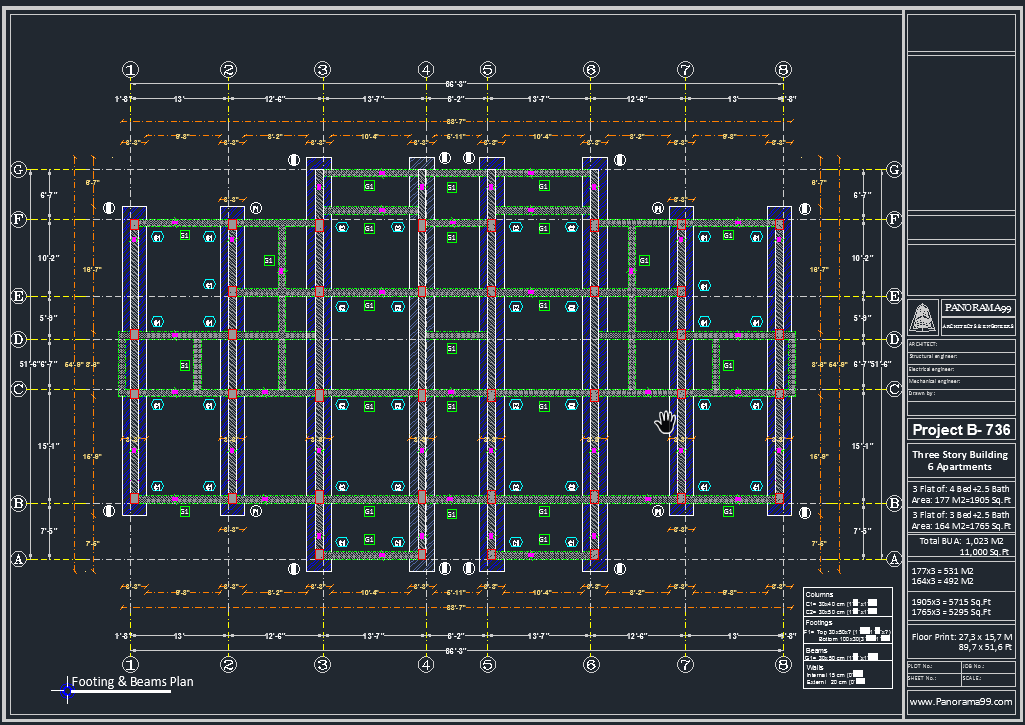

Footing , Beams Plan 1 No.

D & W Schedule       1 No.

Typical Details          1 No.

3D Rendering           6 Nos.

  ----------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.

2- You will get Two sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).

3- You can print multi copies in any time, BUT print using (A2 or A3) paper size only, Don't print as A4 size.

4- All the house plans are ready to download in our shop on Link:   https://payhip.com/Panorama99
