B-575| G+3 Storey building | blueprints modern apartment plan | 7 Shops + 6 Apartments Each: 2 bed+ 2 bath+ 1 balcony

B-575

------------

Building Description:

-------------------------

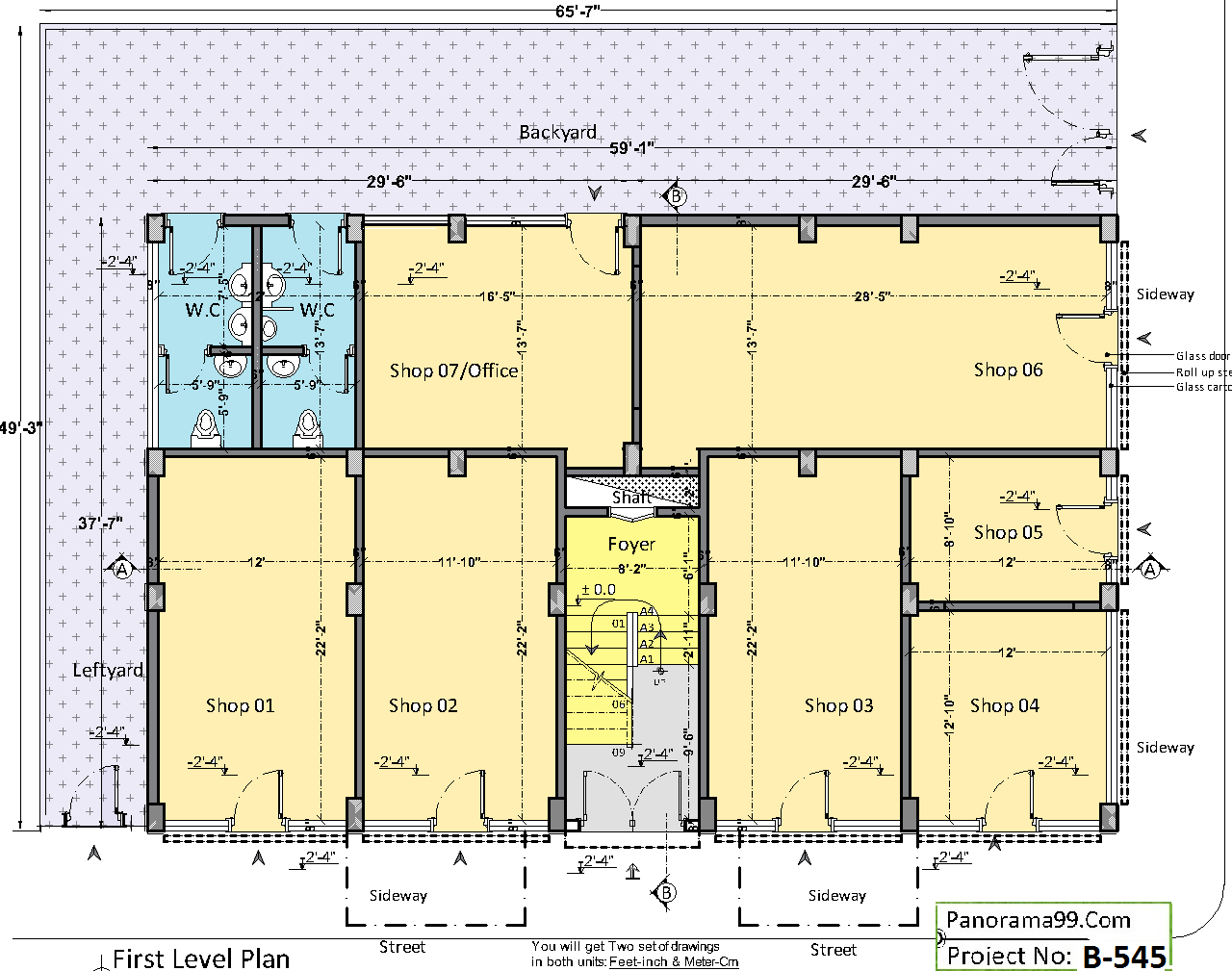

Ground Floor: 7 Shops

Shops Area:

(206 M2 (2215 Ft2)

-------------------------

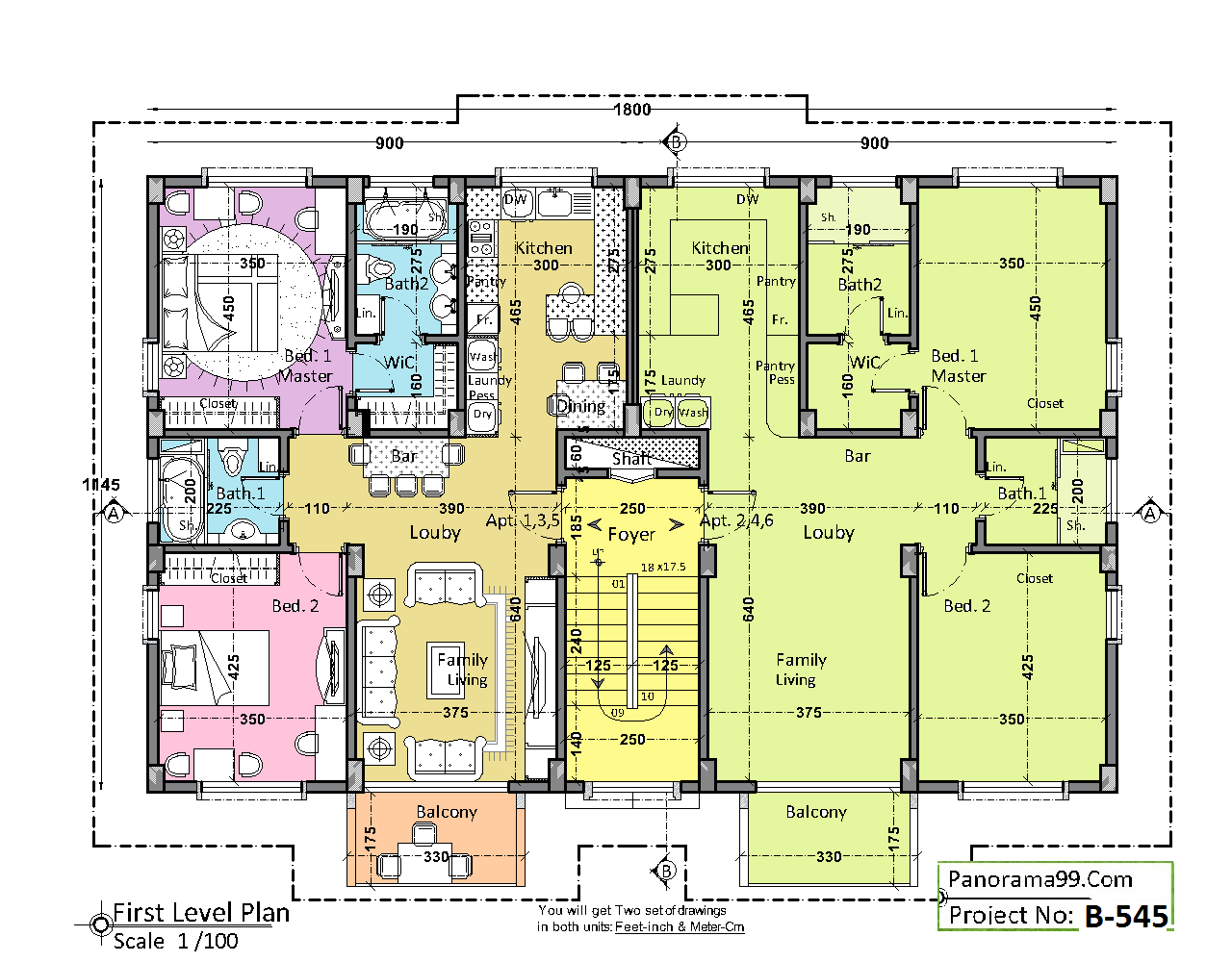

Typical Floors: 6 Flats, Each:

2Bedroom + 2bathroom + 1Balcony + Living + Kitchen + Dining

Residential Area:

(109x6= 654 M2) (1175x 6= 7040 Ft2)

-------------------------

Footprint WxL:

(18 x11,45 Meter)(59x37.6 Feet)

-------------------------

Total Built-up Are:

(860 M2) (9255 Ft.2)

-------------------------

Drawings Description:

Floor Plan 2 Nos.

Furniture Layout 2 Nos.

Elevation Plan 4 Nos.

Section Plan 2 Nos.

Roof Location 1 No.

Roof Top Plan 1 No.

Foundation Beams 1 No.

Columns Centre 1 No.

Typical Details 1 No.

D & W Schedule 1 No.

3D Rendering 5 Nos.

-------------------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.

2- You will get Two Sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).

3- please print using (A2 or A3) paper size only, Don't print in A4.

4- All the house plan drawings are ready to download.
