Stacked Wave Bandsaw Box Templates PDF, 1 to 1 Scale Woodworking Plans, Sculpted Double Drawer Keepsake Pattern, DIY Wood Blueprint Download

Design #13: The Sculpted Stacked Wave Bandsaw Box — 1:1 Scale Printable Template & Shop Guide

Architectural Blueprint Package by Lyndon Wooten | Stuff That Works

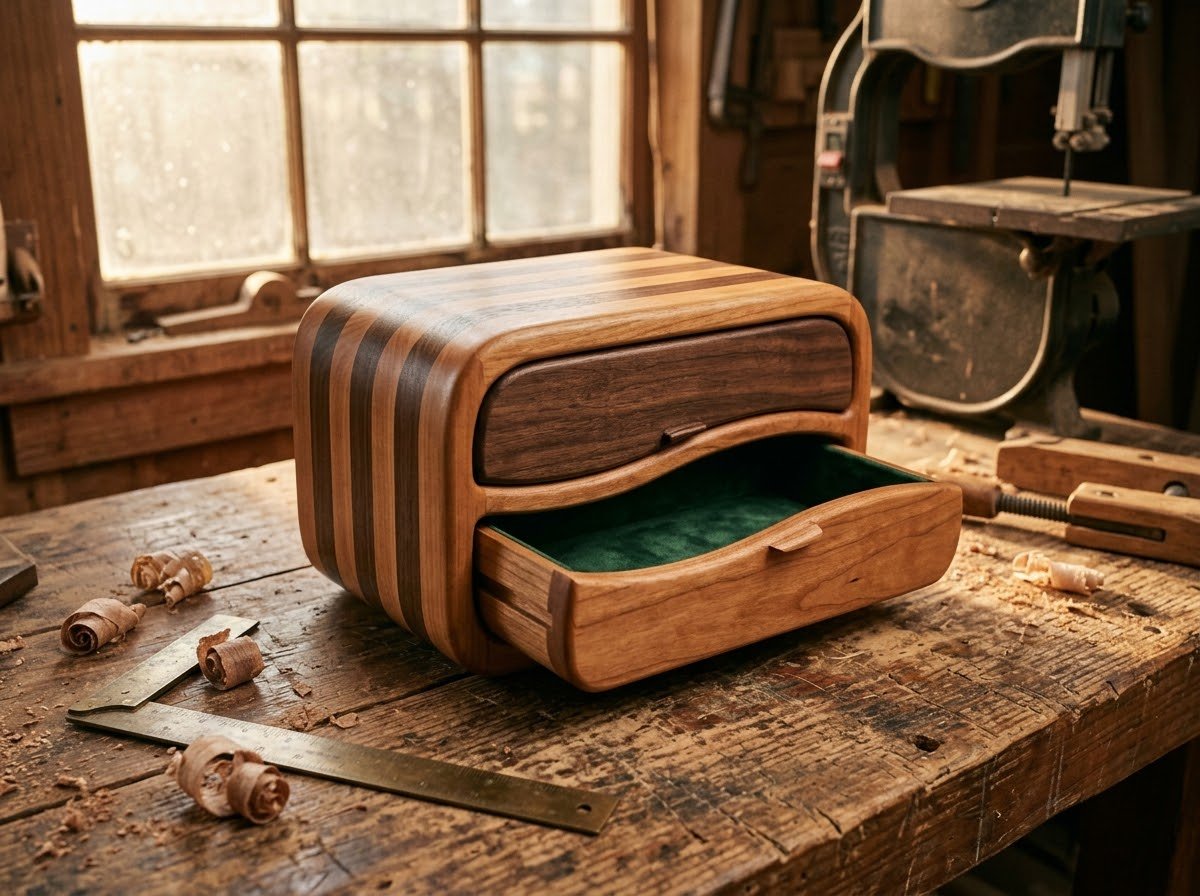

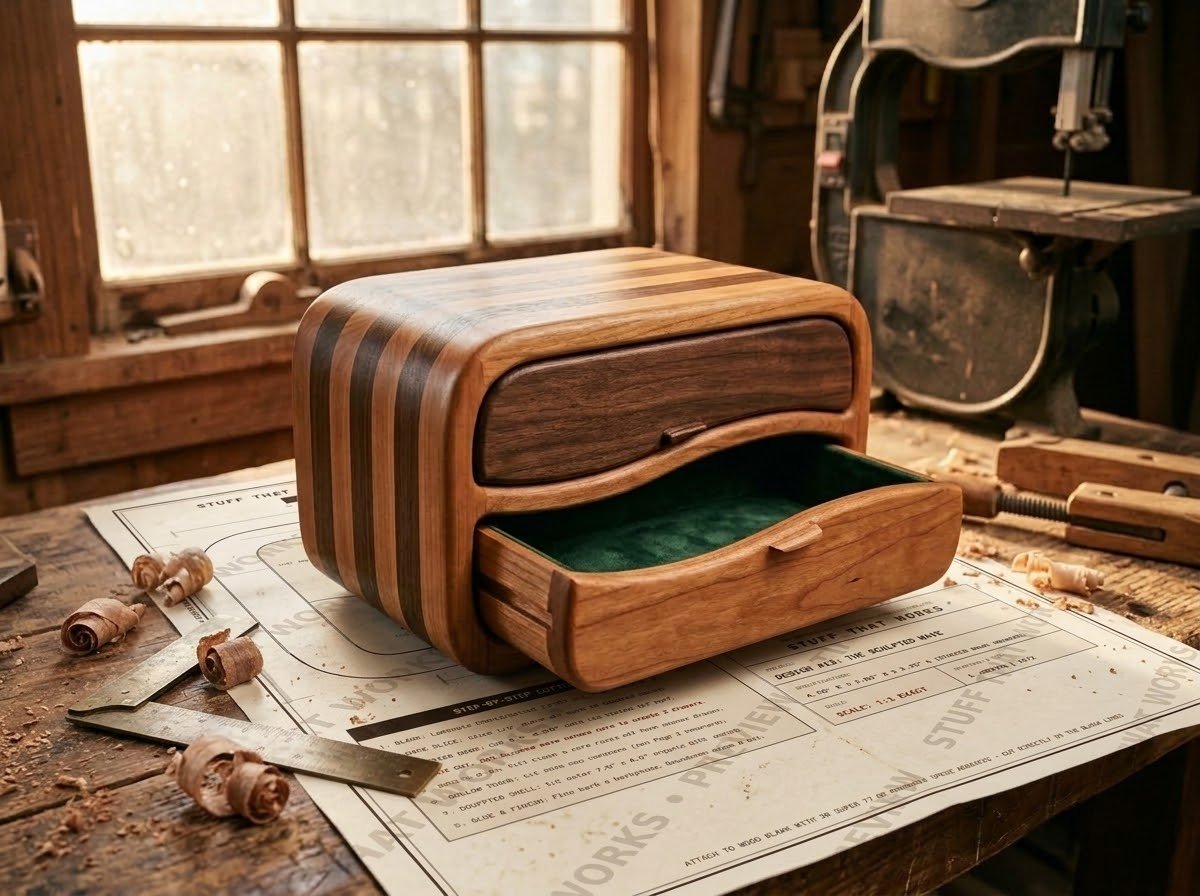

Build your own organic mid-century sculptured bandsaw box measuring 7.0" W × 4.5" H × 3.75" D. Featuring a continuous pillowy outer silhouette and a single unified drawer cavity divided by a flowing horizontal S-curve wave into two vertically stacked, full-width drawers (a lower cherry tray and an upper walnut slide). The undulating wave seam acts as an organic, integrated finger pull with zero hardware required.

This digital vector PDF drafting package is calibrated specifically for standard 8.5" × 11" home and shop printers. Just print at 100% scale, apply spray adhesive, stick the patterns directly to your wood blank, and cut along the lines.

---------------------------------------------------------

WHAT IS INCLUDED IN YOUR DOWNLOAD

---------------------------------------------------------

You will receive a high-resolution 2-page PDF drafting package:

• PAGE 1: 1:1 Scale Front Template & Cutting Pattern

 - Full-size 7.00" W × 4.50" H sculpted pill body profile

 - Unified 5.80" W × 3.50" H drawer core cavity cut path

 - Single 45-degree grain-matched entry kerf line at bottom right

 - Horizontal S-curve dividing cut line that splits the core into upper & lower drawers

 - Step-by-step 8-stage bandsaw cutting sequence printed right on the sheet

• PAGE 2: 1:1 Dual Drawer Hollowing, Glue-Up Guide & Exploded View

 - Full-size 1:1 hollowing patterns for both open-top drawer trays (5/16" walls, 3/8" floor)

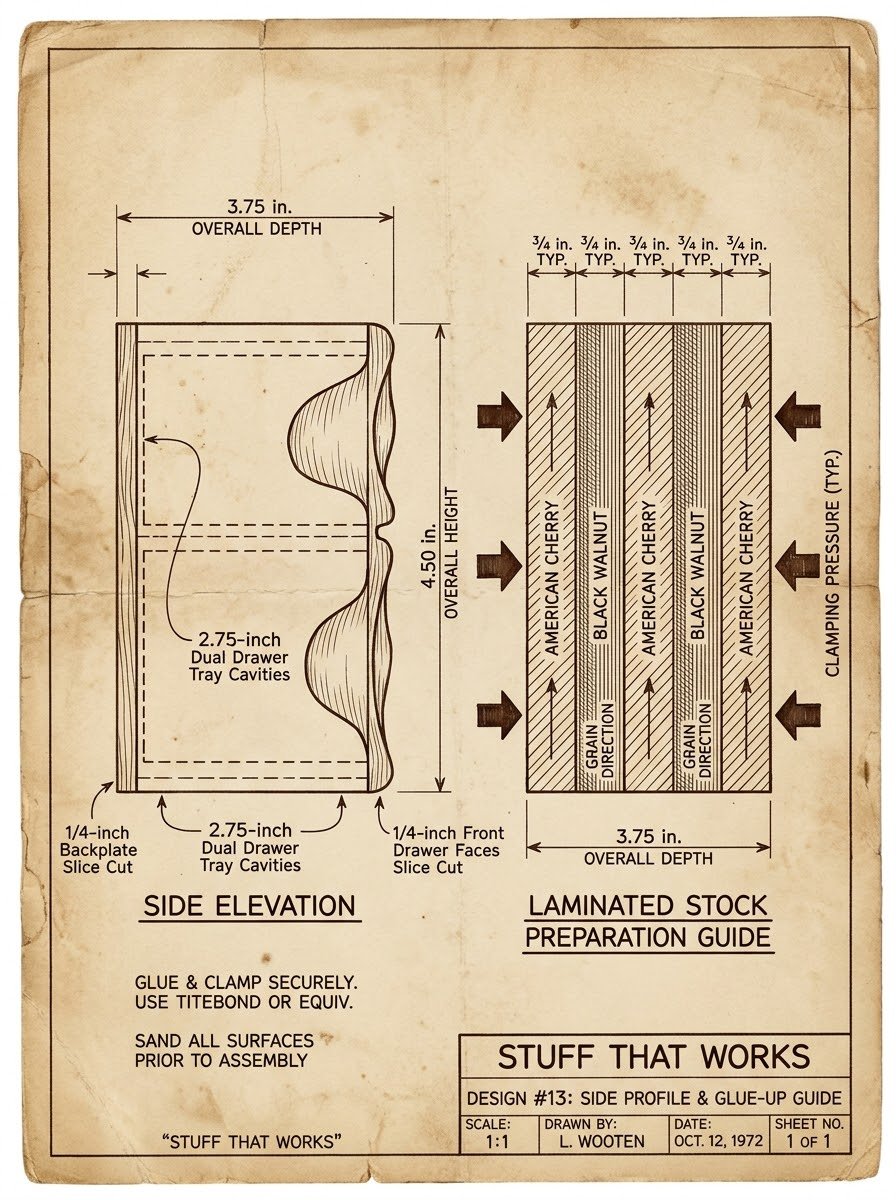

 - 5-LAYER GLUE-UP DRAWING: Complete stock preparation guide showing the 3.75" depth lamination schedule (alternating Cherry and Walnut), exact 1/4" front face and rear slice lines, and the step-by-step drawer assembly order

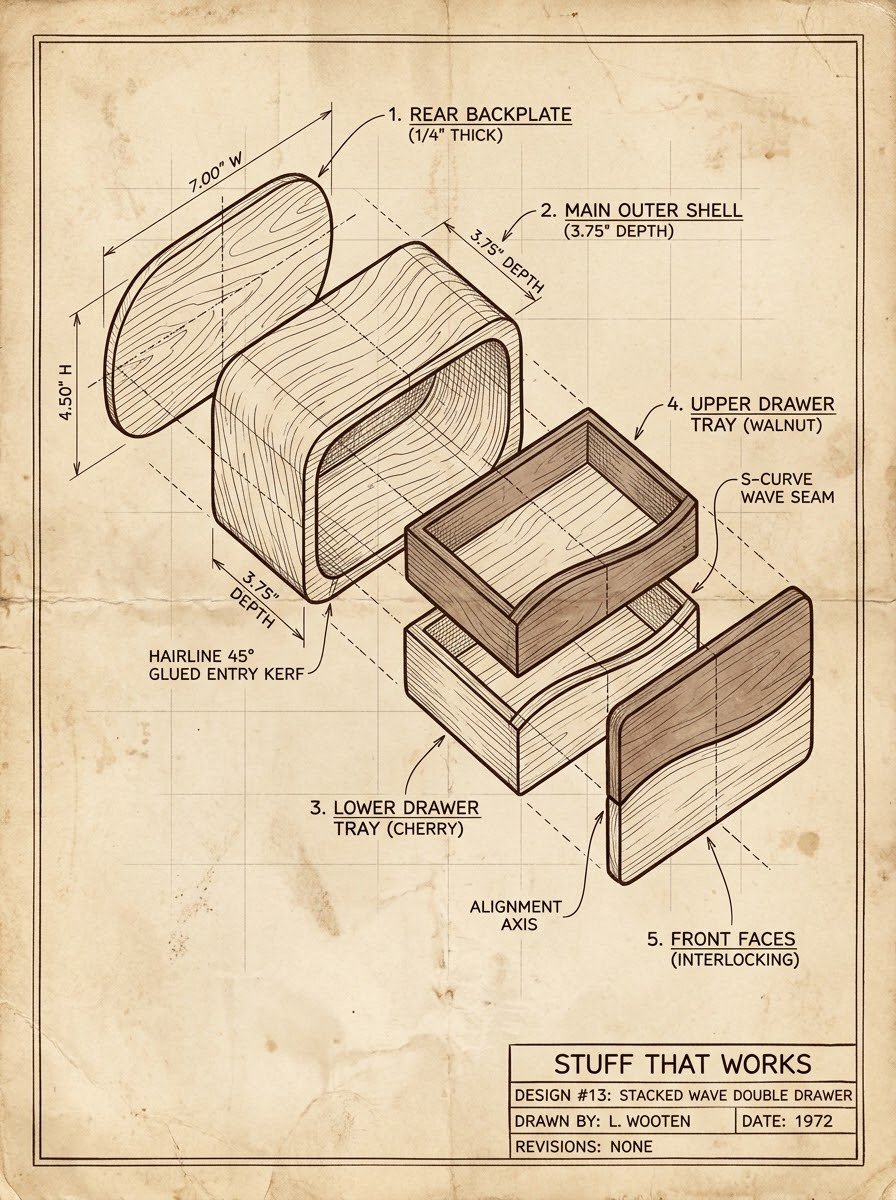

 - 3D EXPLODED ASSEMBLY VIEW: Clear axonometric technical diagram displaying all 5 components (backplate, hollow main body, lower cherry tray, upper walnut tray, and interlocking wave front faces) exploded along a central axis so you can see exactly how the parts align and assemble

 - Detailed notes on pre-flocking the open-top trays and shaping outer pillowed chamfers

• BUILT-IN PHYSICAL CALIBRATION RULER (ON BOTH PAGES):

 - Every sheet features an exact 2.000" check scale bar.

 - Lay a shop ruler against the bar before cutting to verify your printer printed at true 1:1 scale down to the millimeter.

---------------------------------------------------------

DIMENSIONS & MATERIAL REQUIREMENTS

---------------------------------------------------------

• Finished Box Size: 7.00" Wide × 4.50" High × 3.75" Deep

• Recommended Wood Stock: 5 laminated layers of 3/4" stock (contrasting Cherry and Black Walnut)

• Bandsaw Blade: 3/16" or 1/4" blade (4 to 6 TPI skip-tooth recommended)

• Adhesive: Removable spray adhesive (3M Super 77) or craft glue stick

---------------------------------------------------------

PRINTING INSTRUCTIONS (CRITICAL)

---------------------------------------------------------

1. Open the PDF file in Adobe Acrobat Reader or your web browser.

2. In your printer settings, select "Actual Size" or set Custom Scale to "100%".

3. Ensure "Fit to Page" and "Shrink Oversized Pages" are turned OFF.

4. Measure the printed 2.000" calibration check bar with your tape measure or ruler before adhering to wood.

---------------------------------------------------------

TERMS OF USE

---------------------------------------------------------

• Personal and small-batch commercial use allowed: You may build and sell physical boxes crafted from this template.

• Digital redistribution, reselling, or sharing of the PDF blueprint files is strictly prohibited.
