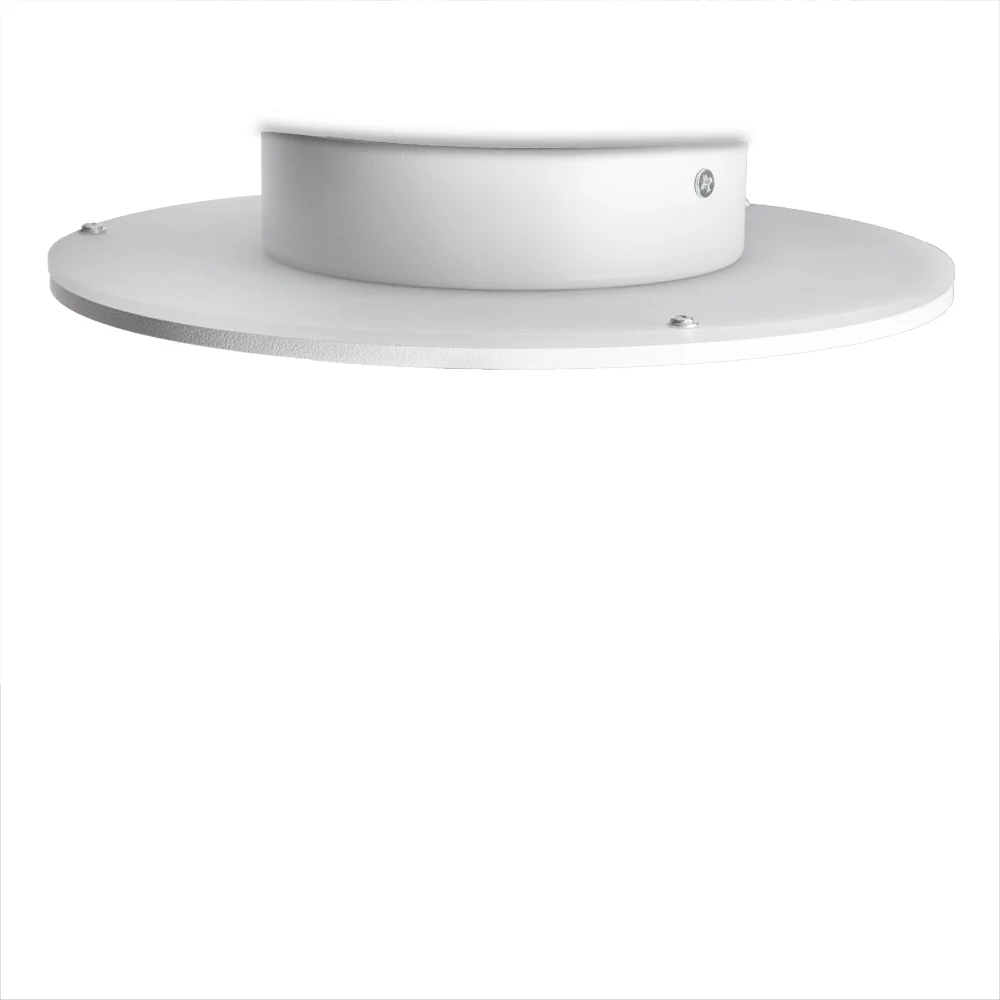

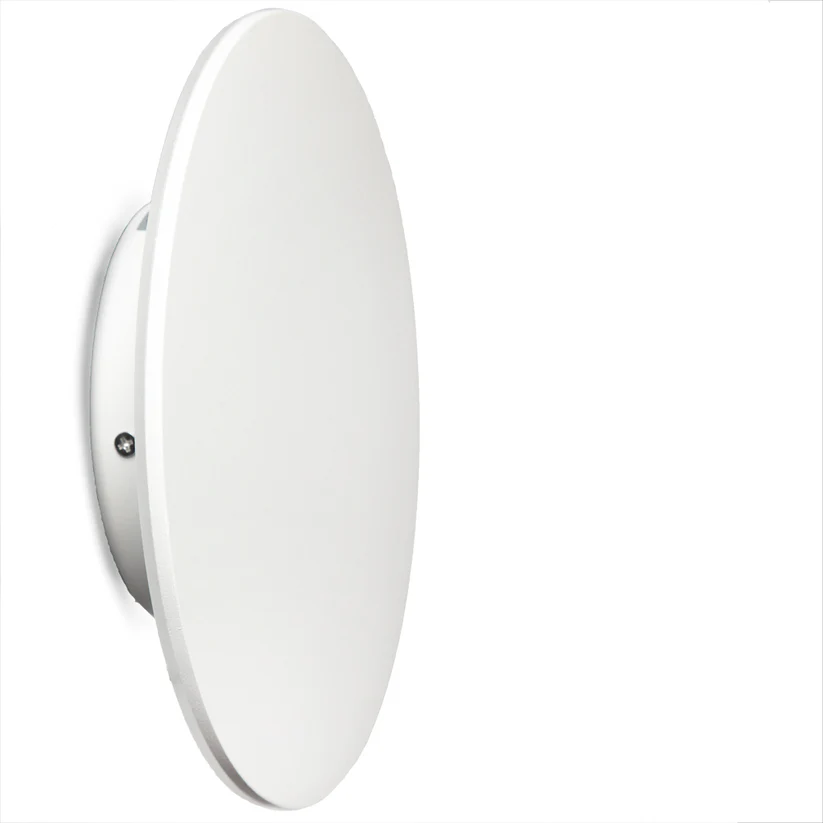

Luna Wall Light

Description

Luna Wall Light 18W 240mm White

Technical File

Product Code:LM-043

Luminous Efficacy (LM/W): 71

Light Temperature: NW

Kelvin º: 2700

Power (W): 18.0

Luminous Flux (LM): 1280

Dimensions (mm): Ø240x45

Height: 45.0 mm

Diameter: 240 mm

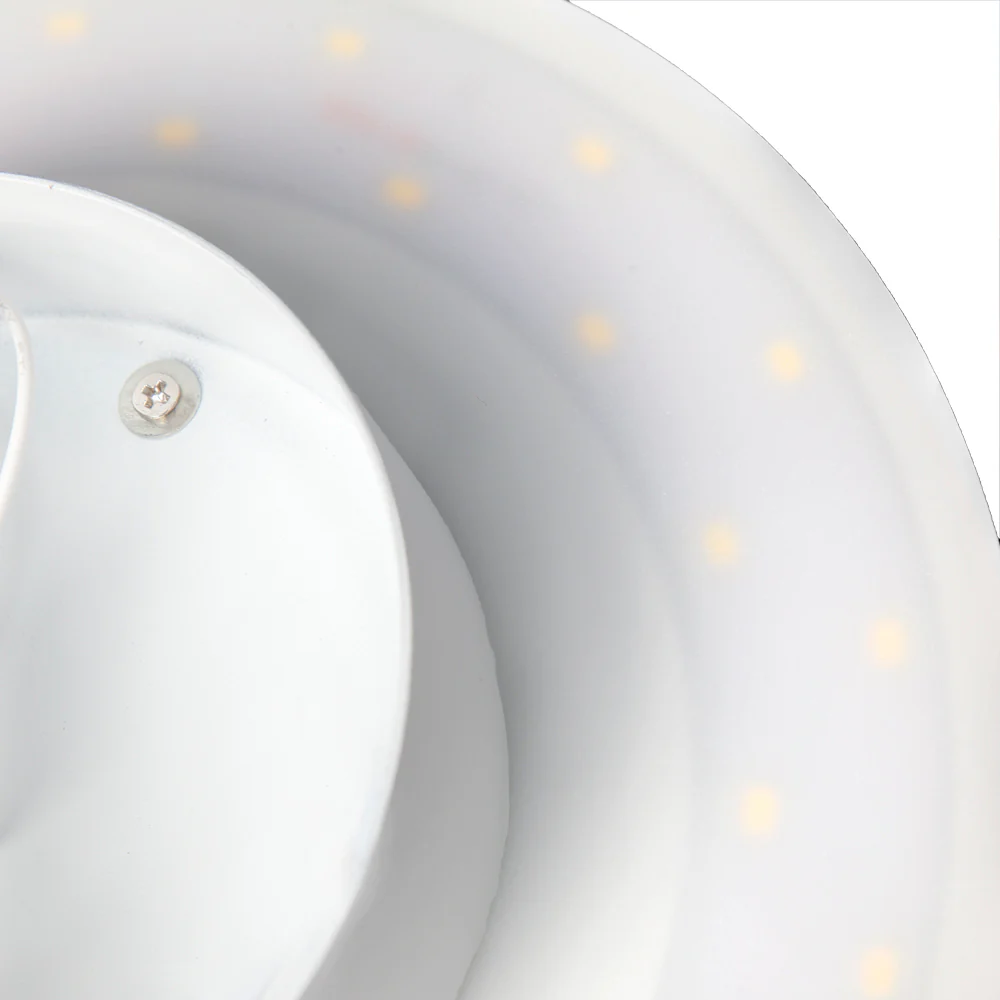

Number and Type of LEDs: SMD2835

CRI: 80

Power Factor (PF): 0.8

Construction: Aluminum/PC

Beam Angle (º): 120

Installation: IP20

Voltage Range: 85-265VAC

Estimated Lifespan (h): 40,000

Equivalence (W): 120

Insulation Class: II

Operating Frequency (Hz): 50/60

Start Time (s): 0.1

Energy Class: G

Certifications: CE/ROHS/ISO9001

Terminal: terminal

Operating Temperature Range (ºC): -20 +40

Lighting Cycles: 100,000

Diffuser: Frosted

Energy Consumption (kWh/1000h): 18.0

Weight (g): 350

Flicker: 0.87

Half-Year Lifetime (at 3 h/day): 36.52

Half-Year Lifetime (5 h/day): 21.91

Half-Year Lifetime (8 h/day): 13.69

Single CCT: 2700

R9 Index: 7

Minimum CRI Range: 97

Maximum CRI Range: 4

Chromaticity x: 0.436

Chromaticity y: 0.405

Style: Modern

Lamp Type: Wall Light

Driver Output: DC72-96V

Applicable Standards:

EN 60598-1:2008

EN 60598-2-2:2012

EN 62493:2010
