Mariner Workshop - 8 Detailed Harbor Scenery Models STL + CAD

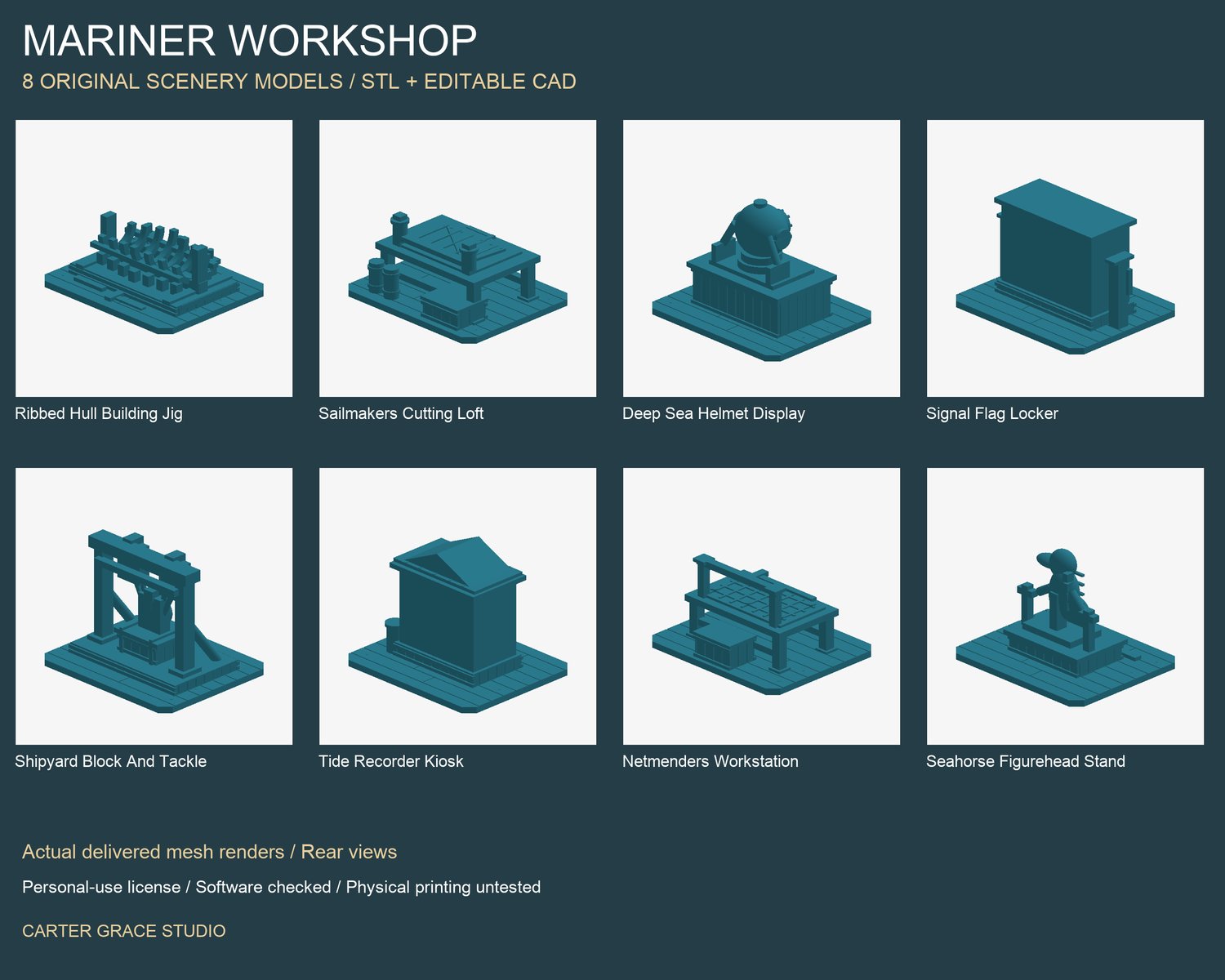

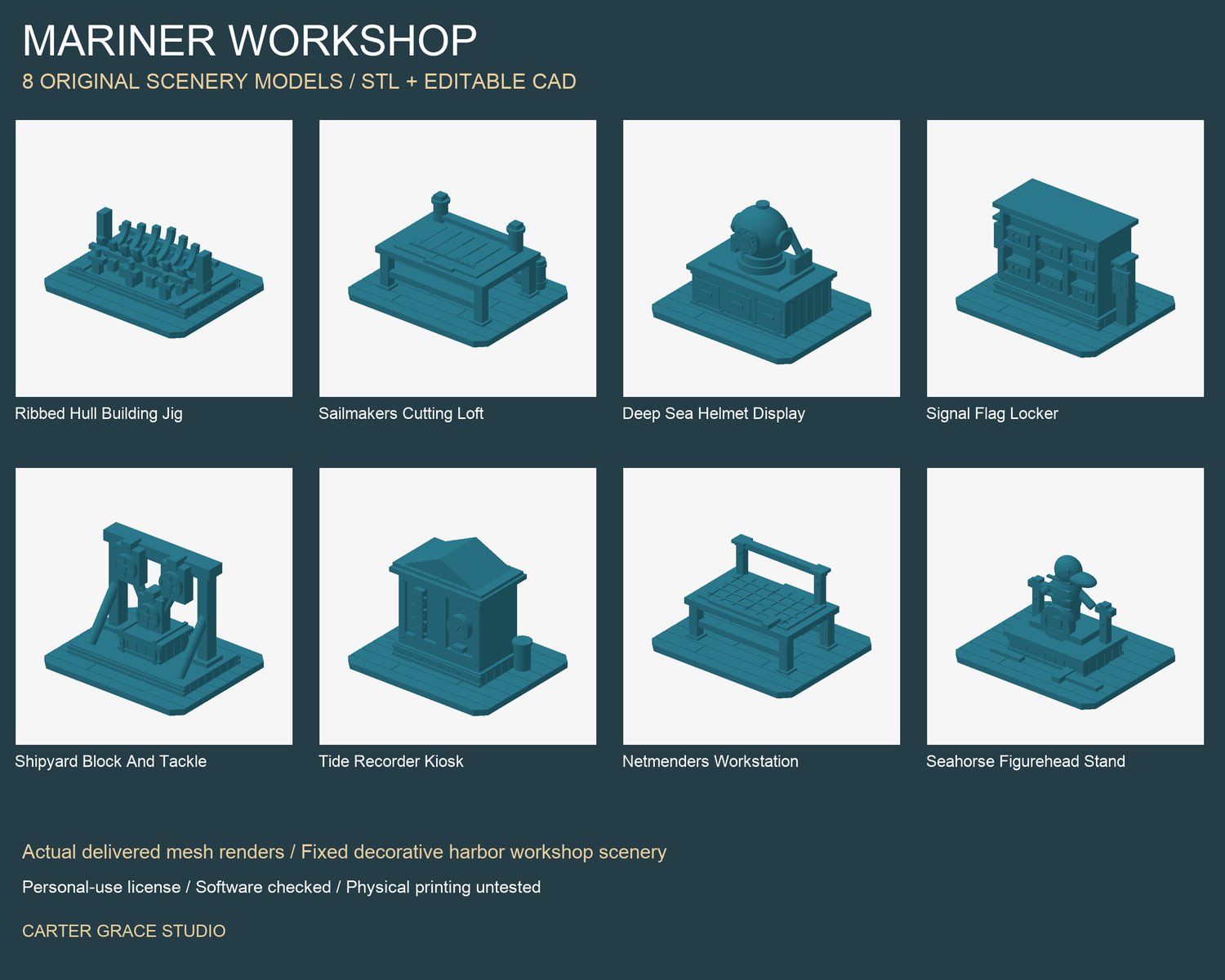

Build a busy miniature shipyard workshop with eight distinct fixed scenery assemblies: a ribbed hull-building jig, sailmakers cutting loft, deep-sea helmet display, signal flag locker, shipyard block and tackle, tide recorder kiosk, netmenders workstation and original seahorse figurehead stand. Includes 8 STL meshes, 8 matching standalone editable OpenSCAD sources, 16 front/rear mesh renders, illustrated HTML catalog, dimension inventory and software-check reports. Complete digital collection: $4.

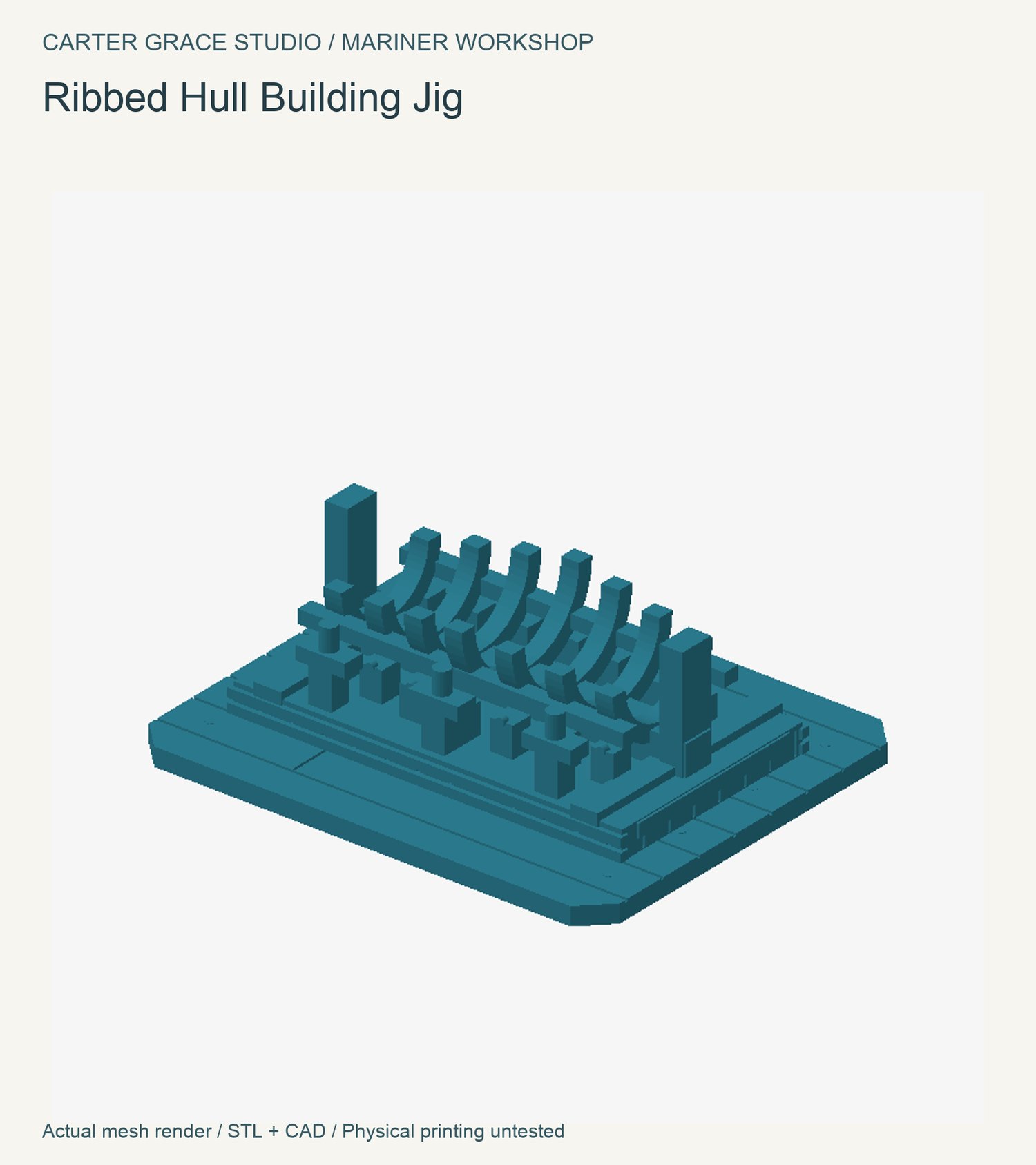

Ribbed Hull Building Jig — Seven thick U-shaped hull ribs joined to a fixed keel, cross rails, stem blocks, three mounted clamps, broad laid-out tools and a plank platform with bolt relief.

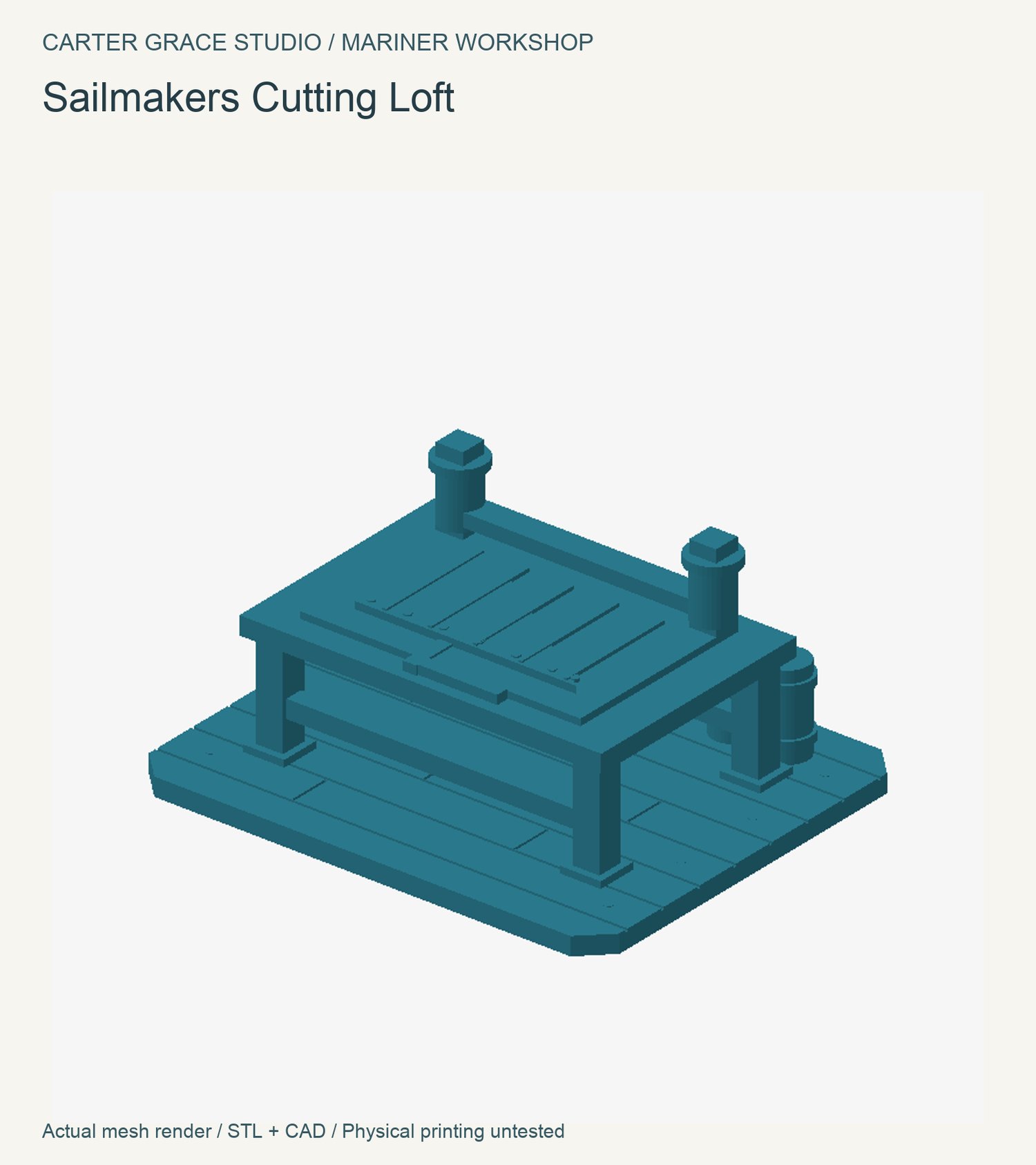

Sailmakers Cutting Loft — Braced cutting table with layered sail panel, stitch-like relief, fixed spool stands, folded-cloth drawer chest and two sealed bound fabric rolls.

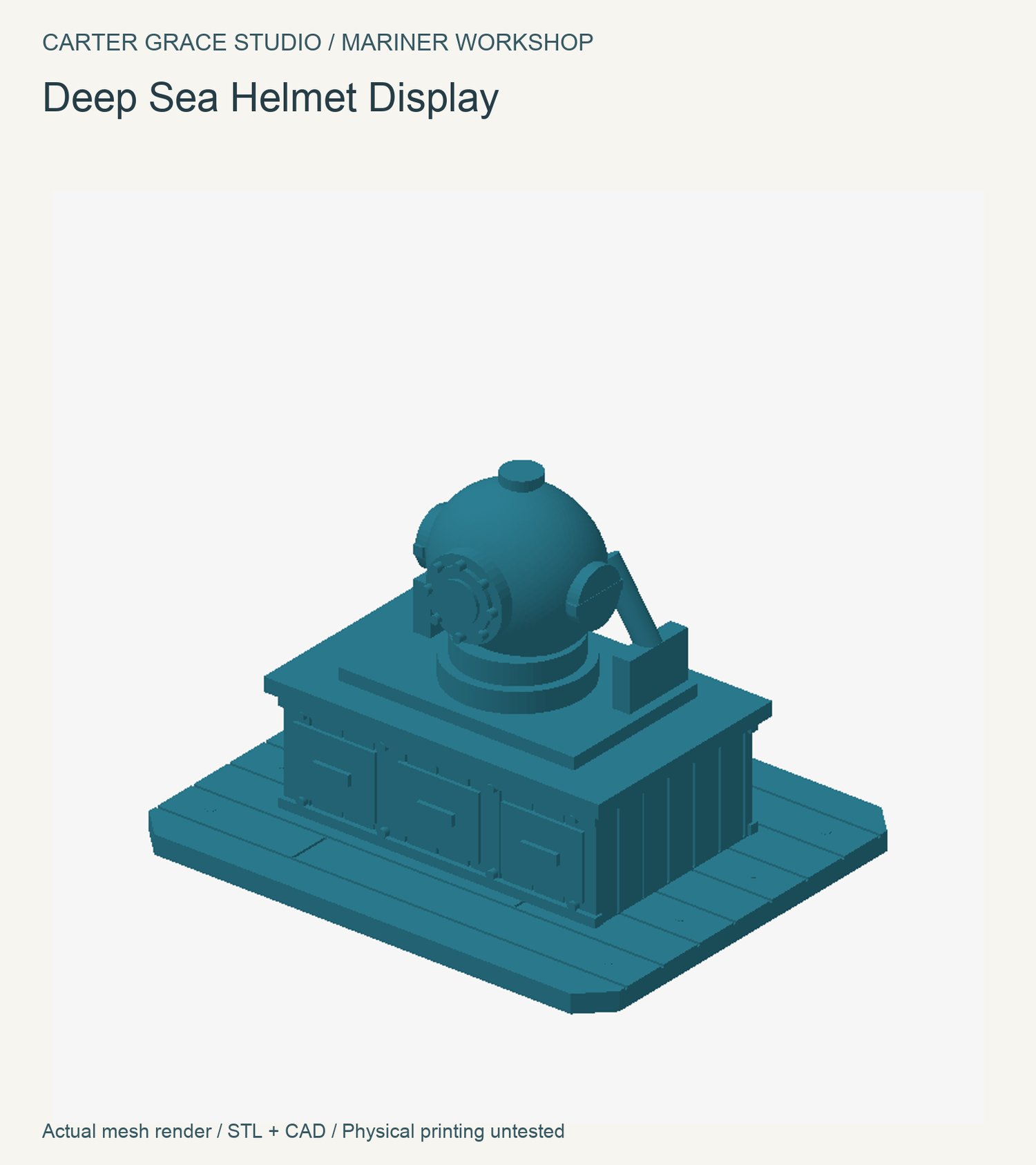

Deep Sea Helmet Display — Closed decorative diving-helmet sculpture with layered front port, eight rim studs, fixed side bosses, thick rear support tubes, neck collars and a three-drawer display cabinet. Not wearable or diving equipment.

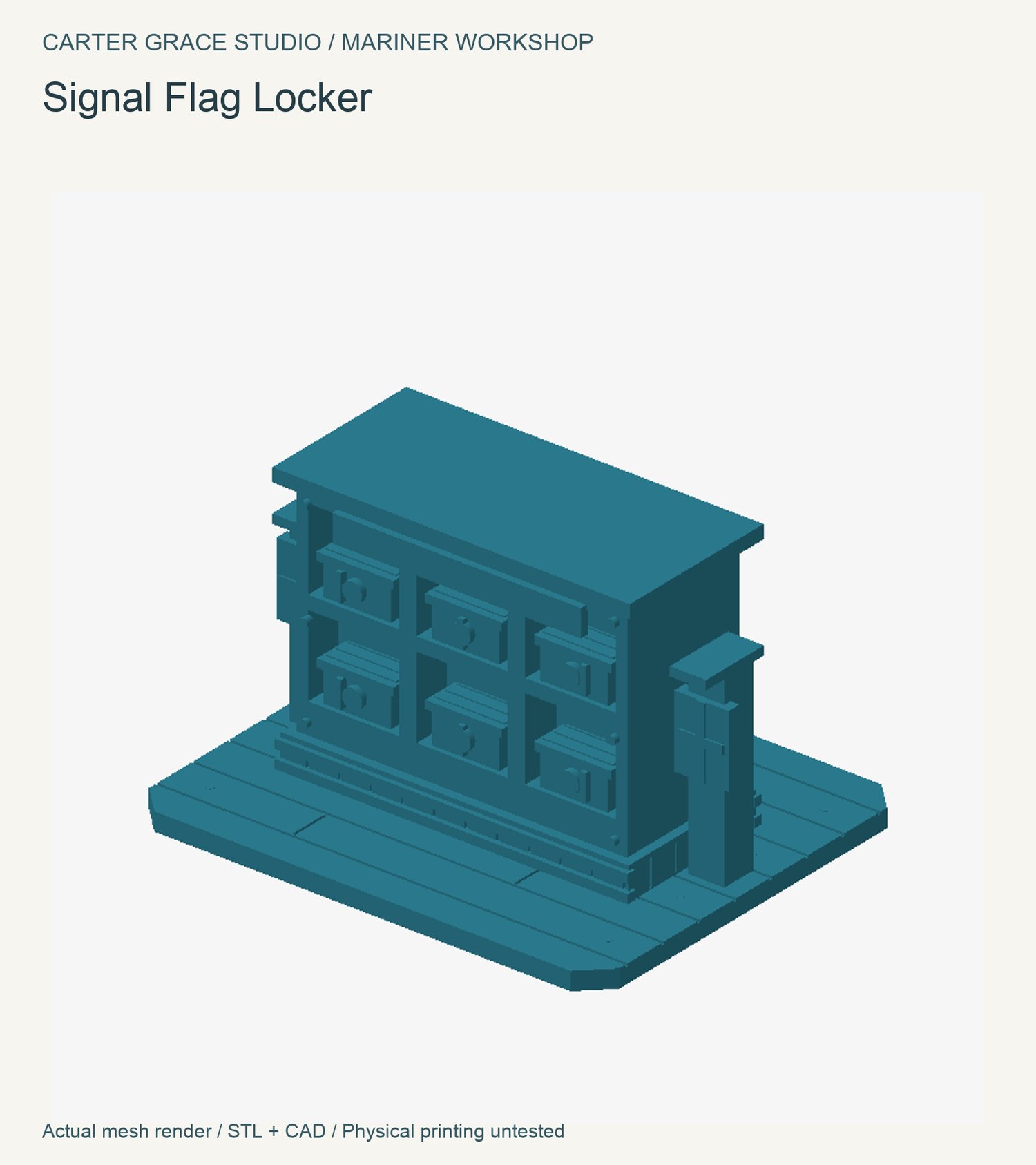

Signal Flag Locker — Six shallow backed cubbies with folded flag-like slabs, stitched relief, broad front markers, plank relief, corner bolts and two backed rigid flag silhouettes.

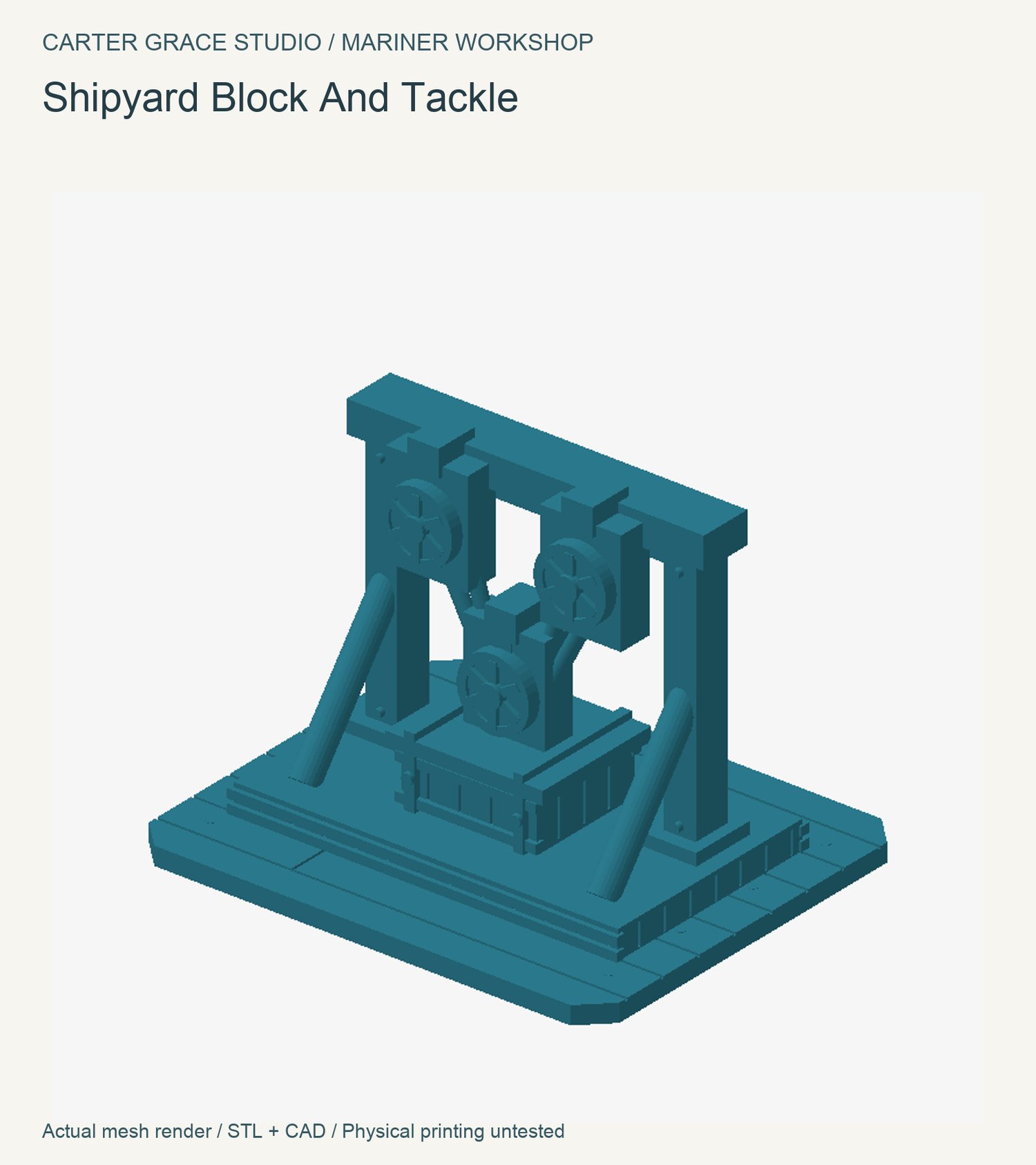

Shipyard Block And Tackle — Braced two-post rig carrying three backed solid pulley discs, spoke relief, fixed thick rope-like rods and a banded cargo load joined to its platform. Nothing lifts or moves.

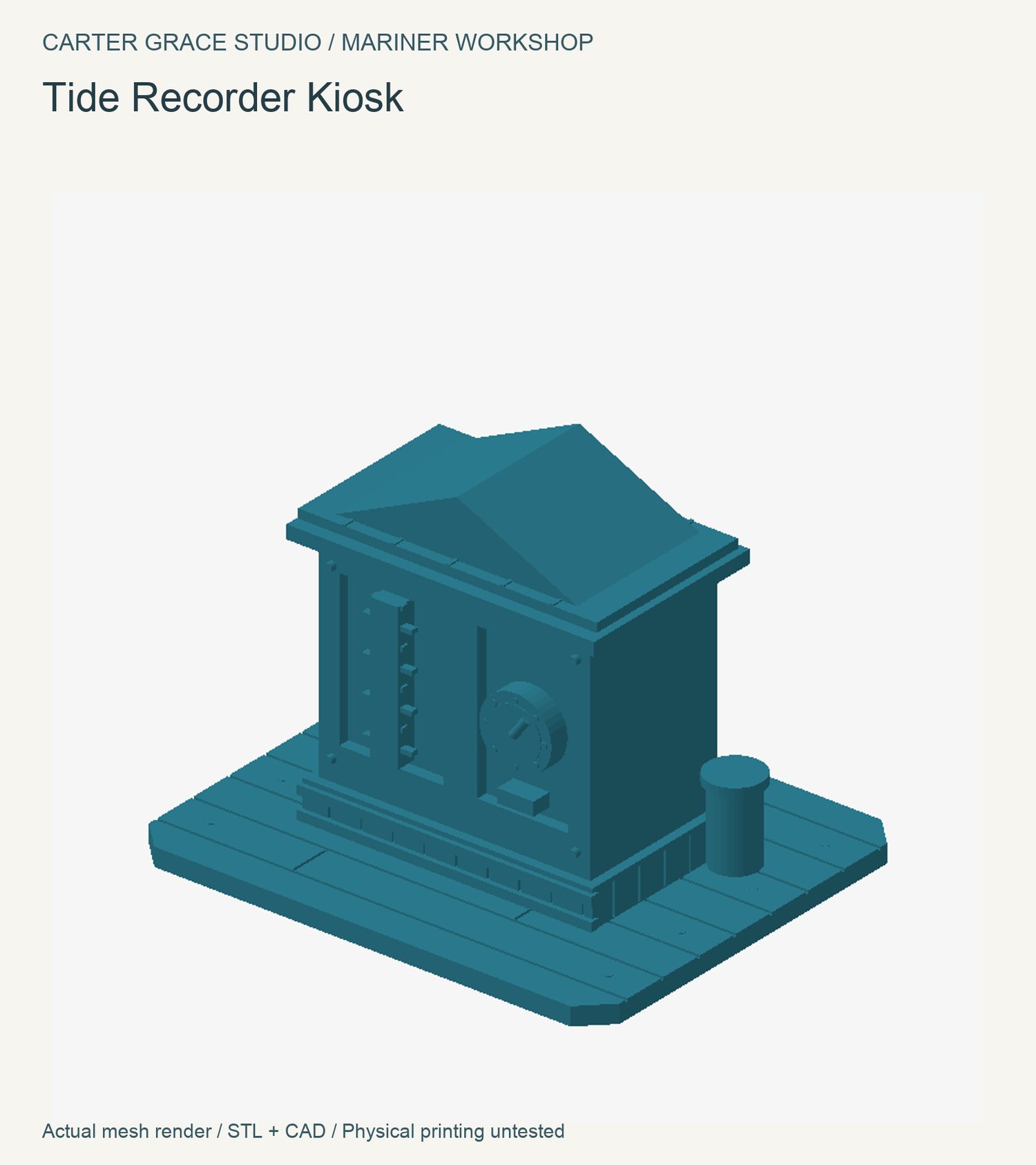

Tide Recorder Kiosk — Gabled recording kiosk with shallow backed gauge recesses, eight raised tick marks, fixed dial and pointer, studded frame, roof strips and sealed side canister. No calibrated measuring function.

Netmenders Workstation — Braced work table with a backed raised net grid, six knot-like studs, rear frame, blunt fixed tools and a closed basket with broad woven relief.

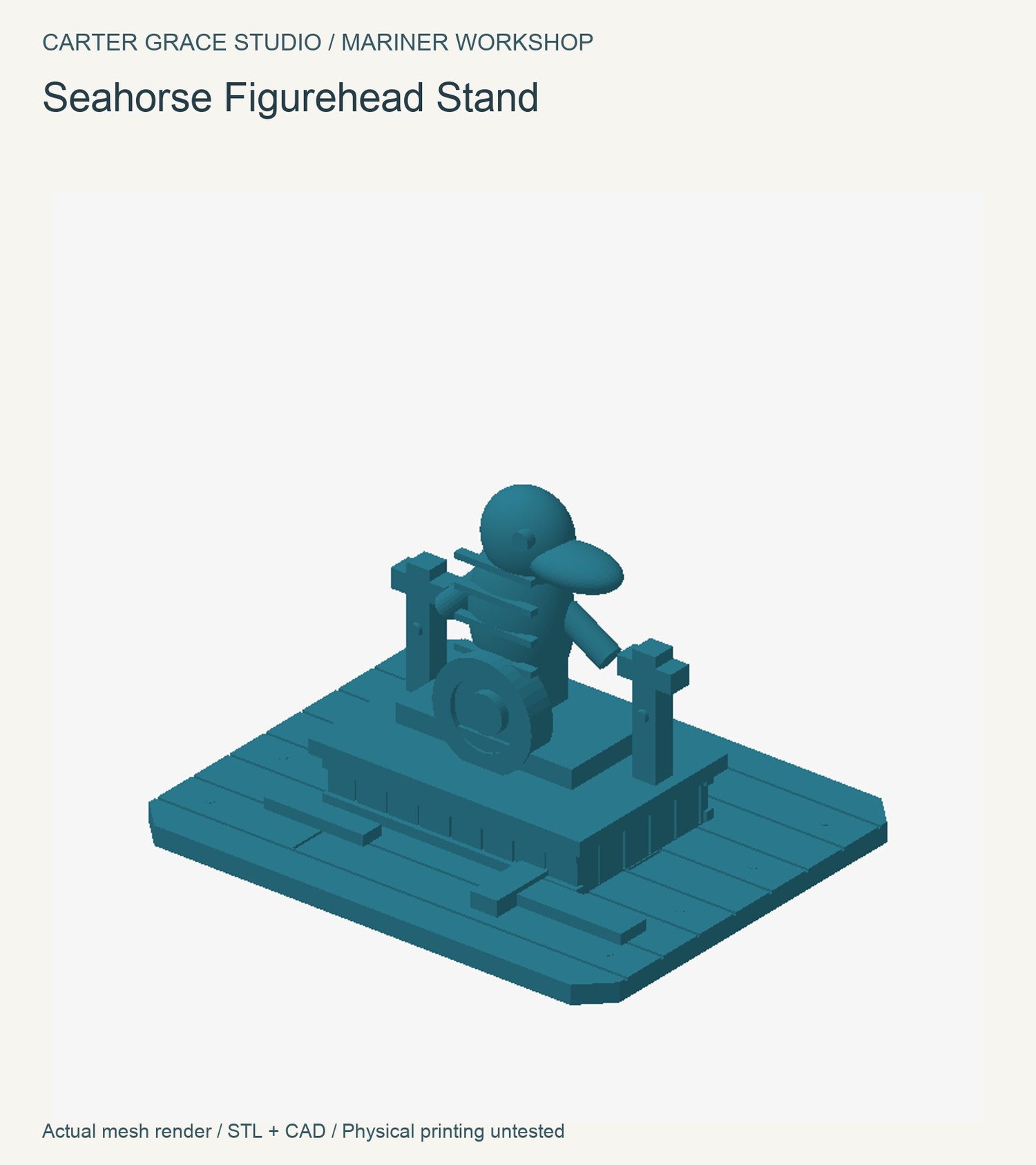

Seahorse Figurehead Stand — Original stylized closed seahorse carving with layered curled-tail relief, blunt snout, rib bands, broad fins, thick support spine, two clamping posts and fixed blunt carving-tool silhouettes.Free preview catalog: browse the actual models before buying. The preview download contains images and inventory only, no STL or CAD files.

All eight STLs passed watertight, consistent winding, positive volume, single connected body, flat Z=0 base and nonempty cross-section checks every 0.4 mm. All eight exact CAD sources independently compiled in OpenSCAD with at most 0.02 mm bounds, 0.5% relative volume and 1% symmetric-difference volume error. All eight exact STLs sliced in OrcaSlicer 2.4.2 using K1 SE 0.4 mm / Generic PLA / 0.16 mm layers / 3 walls / 15% infill / normal automatic supports aligned to model layers, base down. Every named slicer layer has extrusion; checked extrusion paths remain within that profile bed and height. Reports and hashes are included.

Actual mesh renders, not photographs of physical prints. Physical printing, support removal, fine-detail survival, strength, finish and fit remain untested. Import STL files in millimeters. Review your own slices and make trial prints at the supplied size before scaling down. Automatic supports are used in the recorded software check; no pre-supported files, customer G-code or printer profiles are supplied. These are fixed decorative miniature assemblies: ropes, pulley discs, tools, fabric, helmets, flags and controls are rigid and attached. No moving mechanisms, wearable helmet, calibrated instruments, usable diving or marine equipment, physical goods, painted finish, textures, game rules or guaranteed figure scale.

CARTER GRACE STUDIO / PERSONAL USE LICENSE

Mariner Workshop, version 1.0.

Personal printing and gifts are permitted. You may edit your own CAD copy for personal use.

Selling physical prints is not included. Do not share, redistribute, resell or upload the digital files or their derivatives.

These are fixed decorative miniature scenery models. No commercial-print or Creative Commons license is included.

Copyright 2026 Matthew Carter / Carter Grace Studio, where applicable.
