LED Wall Light

Description

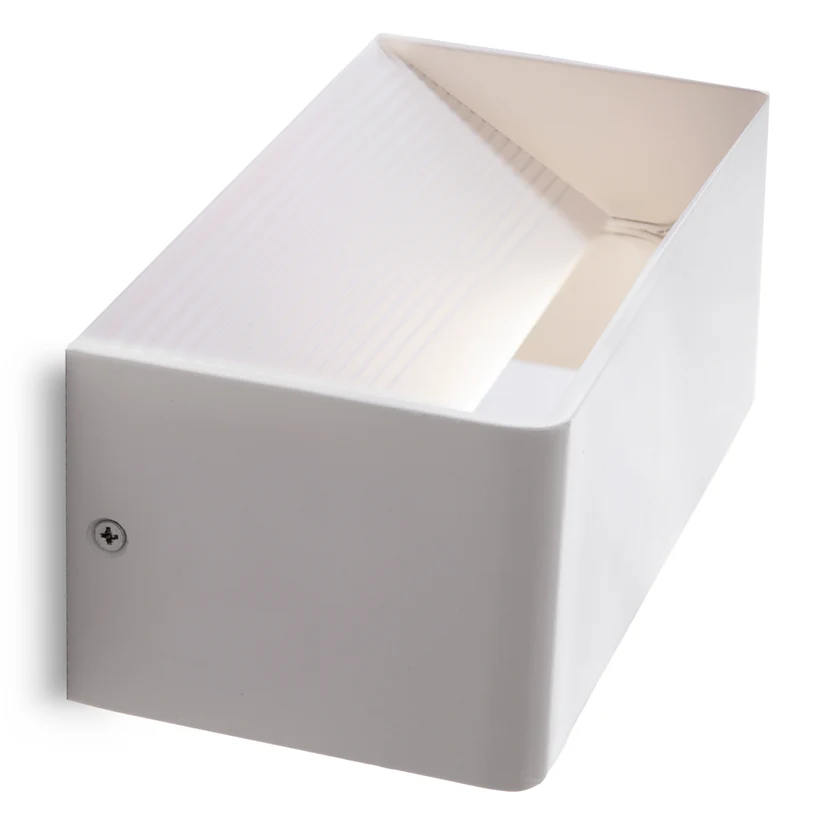

LED Wall Light 7W 700Lm White Camila

Technical File

Product Code: LM-051

Luminous Efficacy (LM/W): 74

Light Temperature: Neutral White

Kelvin: 2700

Power (W): 7.0

Luminous Flux (LM): 520

Dimensions (mm): 198x100x80

Height: 80.0

Length: 198.0

Width: 100.0

Number and Type of LEDs: SMD2835

CRI: 80

Power Factor (PF): 0.85

Construction: Aluminum

Beam Angle (º): 120

Installation: IP20

Voltage Range: 85-265VAC

Estimated Lifetime (h): 40000

Equivalent Wattage (W): 60

Insulation Class: II

Operating Frequency (Hz): 50/60

Start Time (s): 0.1

Energy Class: G

Certificates: CE/ROHS/ISO9001

Terminal: Terminal

Temperature Range (ºC): -20 to +40

Switching Cycles: 100000

Diffuser: Frosted

Energy Consumption (kWh/1000h): 7.0

Weight (g): 600

Flicker: 0.86

Half-Year Lifetime (3 h/day): 36.52

Half-Year Lifetime (5 h/day): 21.91

Half-Year Lifetime (8 h/day): 13.69

Single CCT: 2700

R9 Index: 4

Minimum CRI Range: 97

Maximum CRI Range: 22

Chromaticity x: 0.432

Chromaticity y: 0.403

Style: Modern

Lamp Type: Wall Light

Driver Output: DC12-24V

Applicable Standards: EN 60598-1:2008; EN 60598-2-2:2012; EN 62493:2010
