DESIGN #14: THE 70/30 SPLIT (LOW-PROFILE HORIZONTAL CONSOLE)

Architectural Woodworking Blueprint & 1:1 Scale Cutting Template

Designed & Drafted by L. Wooten | Stuff That Works (Waycross, GA)

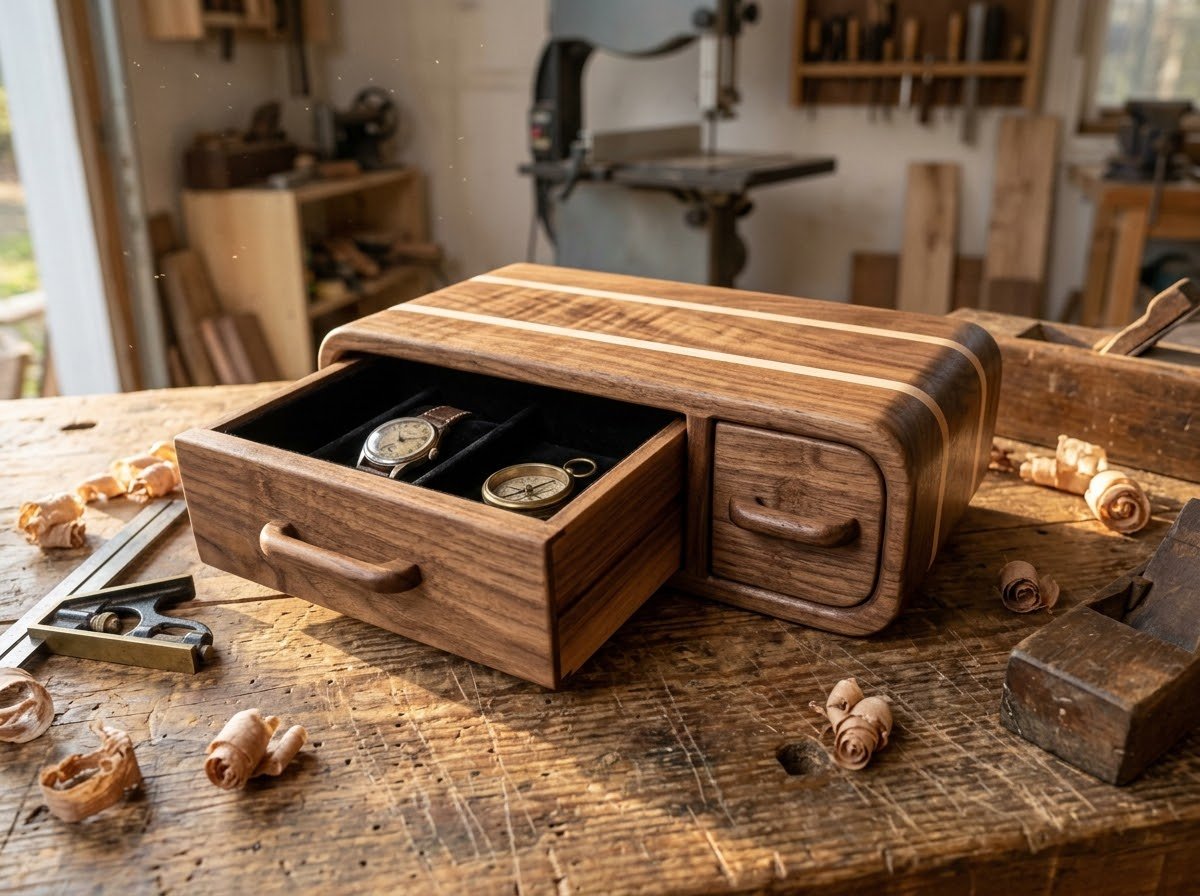

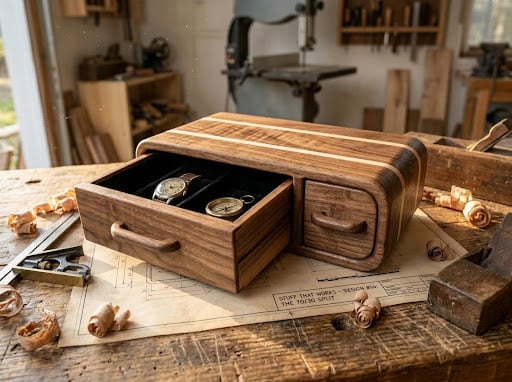

Build a striking mid-century low-profile horizontal console featuring an asymmetrical dual-drawer layout. Unlike traditional upright jewelry boxes, Design #14 uses a 7.00" wide by 3.50" high console footprint inspired by 1970s audio equipment and classic desk valets.

The face is divided into an asymmetrical 70/30 split:

• 70% Major Drawer (Left): A wide 3.75" W x 2.15" H horizontal valet tray designed for watches, pens, pocket knives, or keepsakes (ideal for black velvet or flocking).

• 30% Minor Drawer (Right): A compact 1.95" W x 2.15" H valet tray for rings and cufflinks.

• Discrete 45° base kerf entry cuts that disappear under bottom grain when glued shut.

------------------------------------------------------------------

WHAT IS INCLUDED IN YOUR DOWNLOAD

------------------------------------------------------------------

You receive 2 full-scale, high-resolution PDF template sheets engineered for standard 8.5" x 11" letter paper:

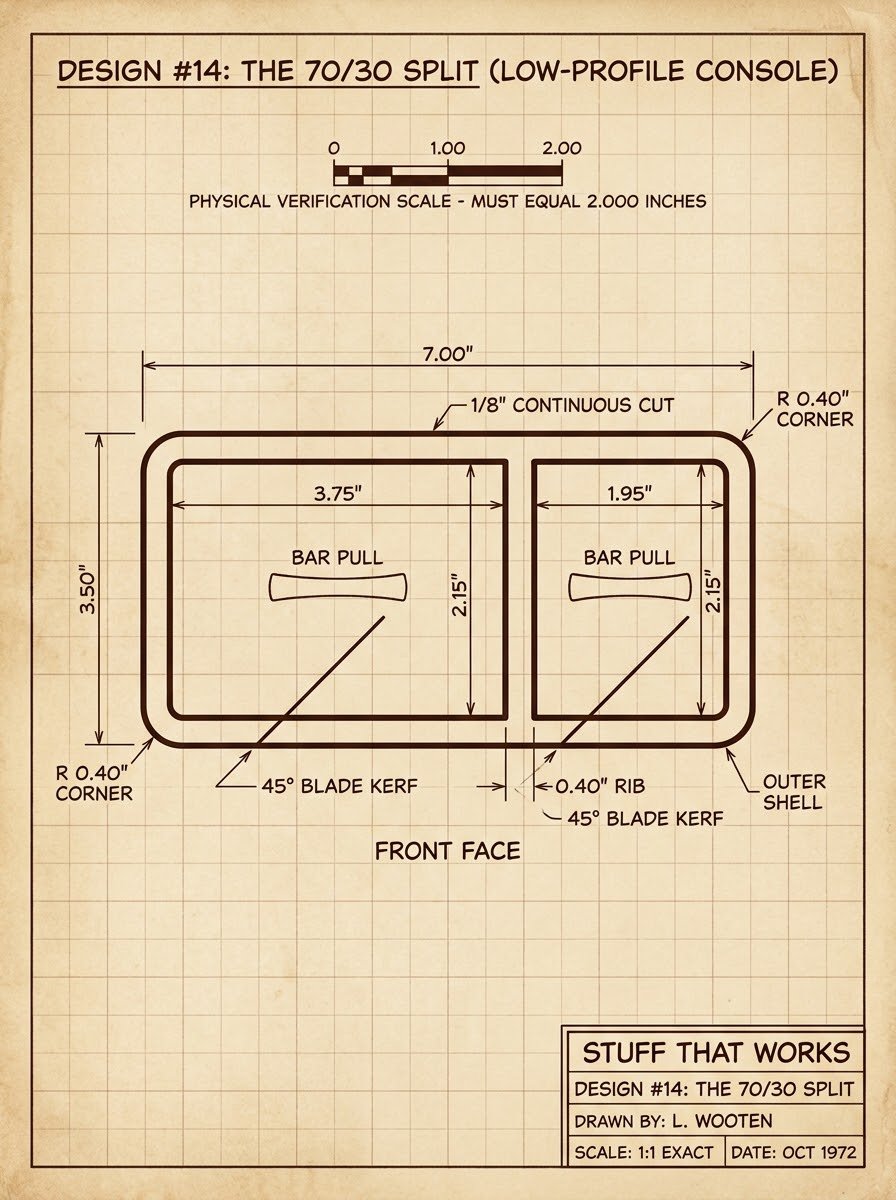

• SHEET 1: 1:1 EXACT SCALE FRONT CUTTING TEMPLATE

 - 100% full-size console profile (7.00" W x 3.50" H).

 - Bold, continuous single-line bandsaw cut paths for both horizontal drawer cavities.

 - Precision 45° base kerf paths, dividing center rib (0.40"), and wall thickness callouts (3/8").

 - Integrated 2.000" physical calibration scale bar so you can verify printing accuracy with your shop ruler before cutting.

 - Numbered step-by-step bandsaw cutting sequence and vintage shop notes.

• SHEET 2: DUAL DRAWER HOLLOWING & ASSEMBLY GUIDE

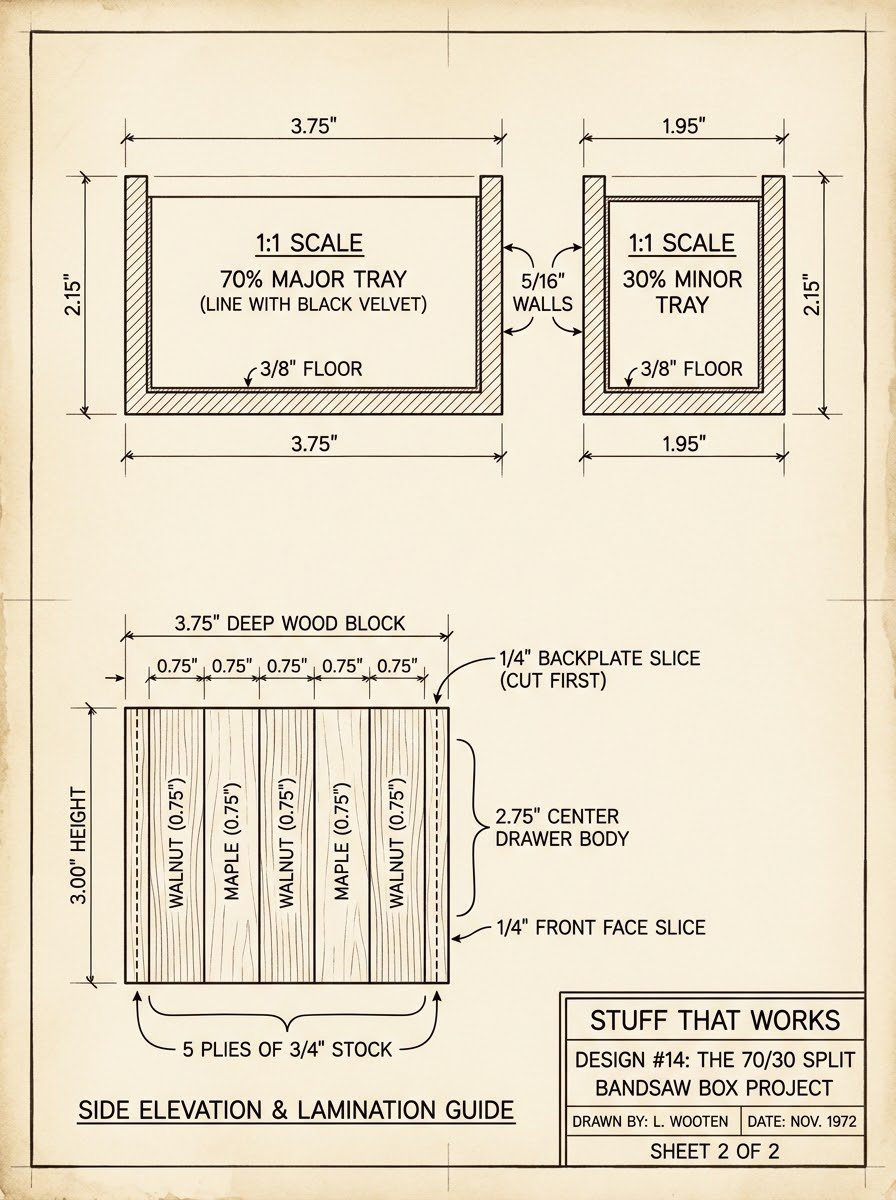

 - 1:1 Scale Drawer Hollowing Patterns for both open-top horizontal trays.

 - 5-LAYER GLUE-UP DRAWING: Clear cross-section illustrating how five 3/4" hardwood boards laminate into a 3.75" deep block, slicing 1/4" front/back skins and leaving a 2.75" deep drawer core. Includes species layout for dual maple racing stripes across dark walnut.

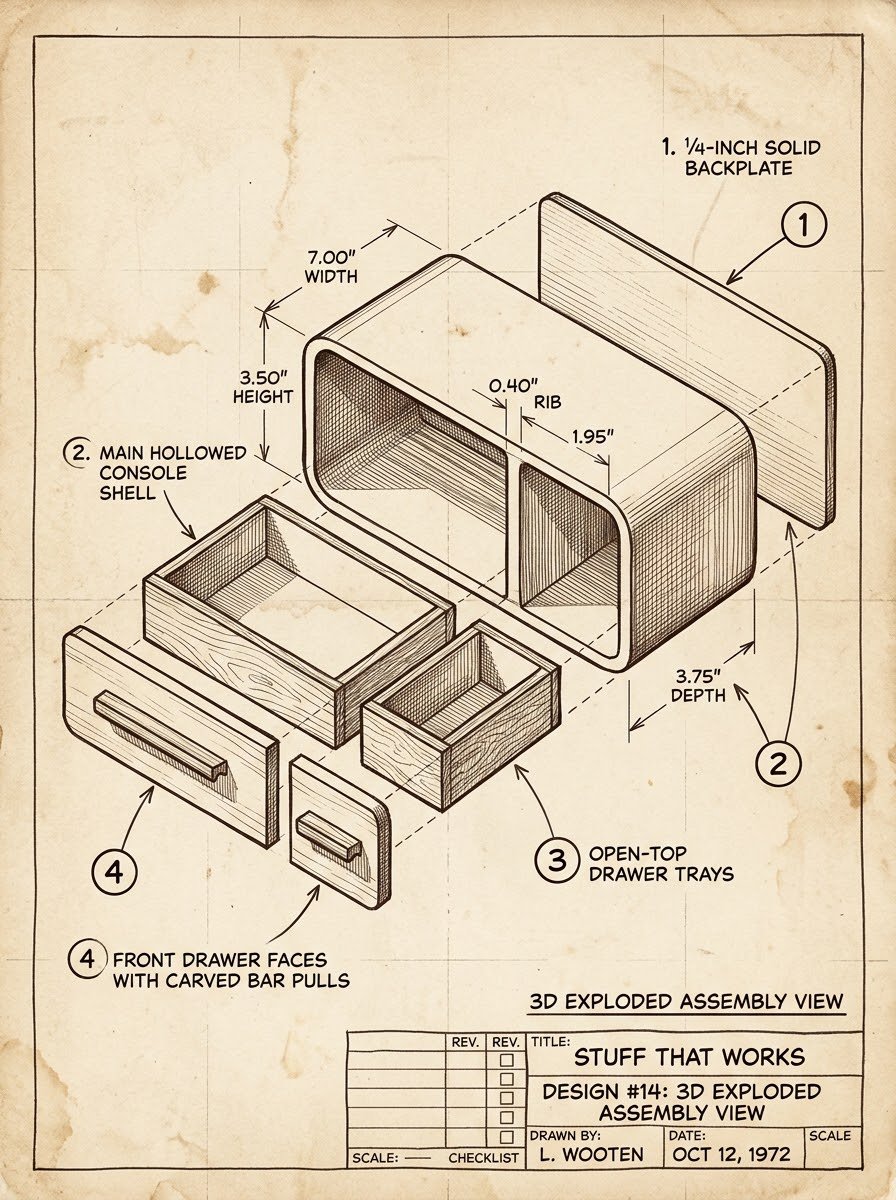

 - 3D EXPLODED ASSEMBLY VIEW: Isometric visual sequence detailing the exact assembly flow from backplate to main console shell, open trays, front faces, and carved wooden bar pulls.

------------------------------------------------------------------

FINISHED SPECIFICATIONS

------------------------------------------------------------------

• Outside Dimensions: 7.00" Wide x 3.50" High x 3.75" Deep

• Major Drawer Core: 3.75" Wide x 2.15" High x 2.75" Usable Depth

• Minor Drawer Core: 1.95" Wide x 2.15" High x 2.75" Usable Depth

• Stock Needed: (5) pieces of 3/4" x 4.00" x 7.50" hardwood (Walnut & Maple recommended)

• Minimum Blade Recommended: 1/8" or 3/16" 10-14 TPI scrolling bandsaw blade

------------------------------------------------------------------

PRINTING INSTRUCTIONS

------------------------------------------------------------------

1. Open the PDF files in Adobe Acrobat Reader or your default PDF viewer.

2. Under Page Sizing & Handling, select "Actual Size" or set Custom Scale to 100%.

3. DO NOT select "Fit to Printable Area" or "Shrink Oversized Pages".

4. After printing, measure the printed black-and-tan scale bar with your shop ruler. It must measure exactly 2.000 inches.

5. Spray adhesive (such as 3M Super 77) onto the wood blank, smooth down the pattern, and cut directly on the lines!

Instant digital download. No physical wooden box will be mailed.
