Exclusive Prospecting Orders (EPOs) in Zimbabwe: Exploration Methods, Discoveries, and Untapped Potential

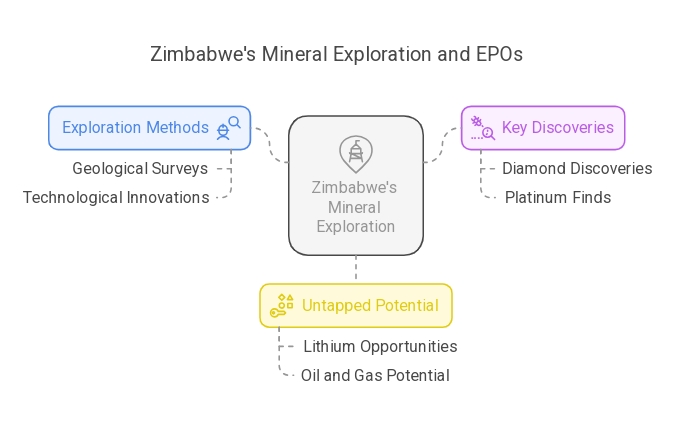

Zimbabwe’s mineral exploration, governed by Exclusive Prospecting Orders (EPOs), offers a remarkable case study in how integrated geological methods reveal and shape resource potential. Drawing from historical sources and recent research, this article details the exploration methods, key discoveries (and those left on the shelf), and the future potential for diamond, platinum, lithium, antimony, natural gas, oil, and other fossil fuels.

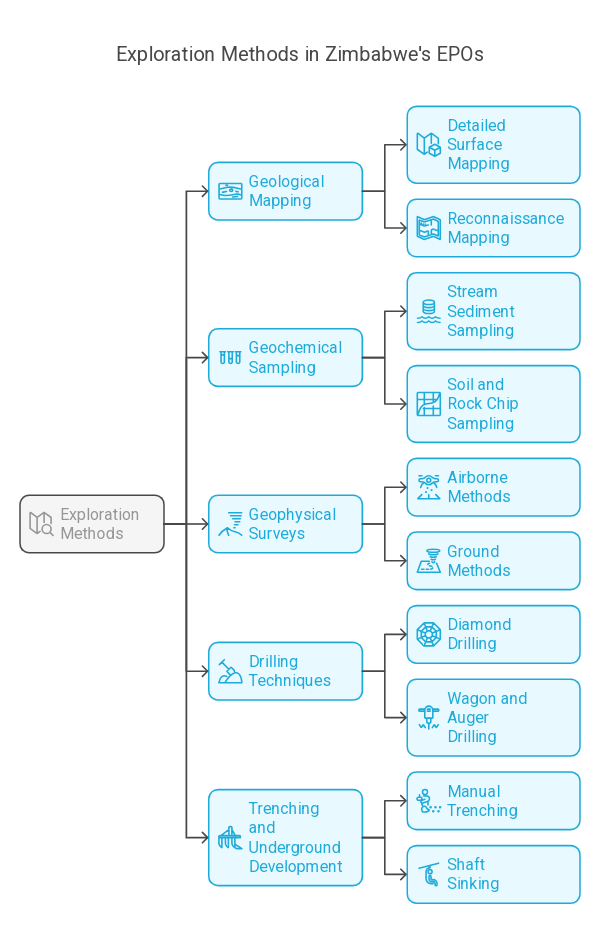

1. Exploration Methods Employed in EPOs

• Geological Mapping:
• Detailed Surface Mapping:
• Scales from 1:10,000 to 1:50,000 capture lithological units, faults, folds, shear zones, and alteration zones.
• Recent studies have integrated drone-based aerial imagery to enhance resolution.
• Reconnaissance Mapping:
• Broader surveys identify zones of interest for more focused follow-up.
• Photogeological Interpretation:
• Aerial photographs complement field mapping to delineate hidden structural trends.
• Structural Analysis:
• In-depth mapping of deformation features helps predict fluid flow pathways essential for ore deposition.
• Geochemical Sampling:
• Stream Sediment Sampling:
• Collected at ~0.4 km intervals, these samples reveal elemental anomalies indicative of deep mineralization.
• Soil and Rock Chip Sampling:
• Grid patterns (30m x 30m to 150m x 150m) and targeted rock chip collections help identify localized geochemical anomalies.
• Loam Sampling and Panning:
• Particularly for gold, loam is sampled and panned to capture heavy mineral fractions.
• Heavy Mineral Concentrate Sampling:
• Employed to isolate and analyze economically important heavy minerals.
• Termite Mound Sampling:
• Recognizes that termites bring up subsurface material, potentially revealing hidden mineralization.
• Geophysical Surveys:
• Airborne Methods:
• Magnetic Surveys: Identify magnetic anomalies that often correlate with shear zones and intrusive bodies.
• Electromagnetic (EM) Surveys: Using INPUT (Induced Pulse Transient) techniques to detect conductive bodies such as massive sulphides.
• Radiometric Surveys: Target uranium and thorium, useful for delineating radiometric anomalies.
• Ground Methods:
• Magnetic and EM Surveys: Provide high-resolution data on local variations in rock properties.
• Induced Polarization (IP) and Resistivity: Detect disseminated sulphides and measure rock resistance.
• Gravity and Self-Potential (SP): Map density variations and electrochemical potentials, critical for interpreting structural controls.
• Recent Advances:
• Integration of UAV-borne sensors and real-time data processing has increased the precision of these surveys.
• Drilling Techniques:
• Diamond Drilling:
• Produces core samples that reveal detailed lithological and structural information; depths range from tens to hundreds of meters.
• Wagon and Auger Drilling:
• Used to penetrate weathered overburden and sample bedrock in less accessible areas.
• Trenching, Pitting, and Underground Development:
• Manual Trenching and Pitting:
• Trenches (up to 15 ft deep) expose subsurface geology for sampling and mapping.
• Shaft Sinking and Winzing:
• Allow access to deeper ore bodies, crucial for understanding three-dimensional deposit geometry.
• Other Techniques:
• Reclamation of Old Workings:
• Revisiting and sampling historical mines often reveals new resource potential.
• Radiometric Surveys:
• Further aid in detecting radioactive minerals that can be geochemical indicators.

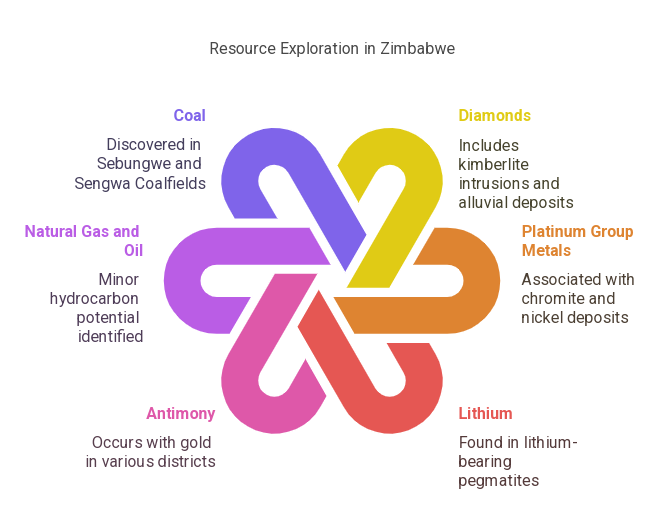

2. Discoveries Made Through EPOs

• Diamonds:
• Kimberlite Intrusions:
• Several kimberlite pipes were identified; however, many exhibited low diamond grades.
• Alluvial Diamonds:
• Discovered in gravels, though generally uneconomic.
• Platinum Group Metals (PGMs):
• Occurrence in the Great Dyke:
• PGMs were found associated with chromite and nickel sulphide deposits, indicating significant, though complex, resource potential.
• Lithium:
• Lithium-Bearing Pegmatites:
• Identified in zoned pegmatites, notably within northern regions. Despite early identification, these deposits were not pursued extensively.
• Antimony:
• Antimony-Gold Associations:
• Found alongside gold in several districts, although historically deemed uneconomic.
• Natural Gas and Oil:
• Exploratory Results:
• While no commercially viable discoveries were made, some areas showed minor hydrocarbon potential, warranting further modern evaluation.
• Other Fossil Fuels:
• Coal:
• Coal seams were discovered in the Sebungwe and Sengwa Coalfields, though quality and infrastructure limitations hampered development.
• Graphite:
• Occurrences in Proterozoic gneisses suggest additional industrial potential.
• Other Metal Deposits:
• Nickel, Copper, Gold, Chromite, Tungsten, Molybdenum, Beryl, Kyanite, Corundum, and more:
• Numerous deposits across various greenstone belts, indicating a complex, polymetallic environment with significant exploration potential.

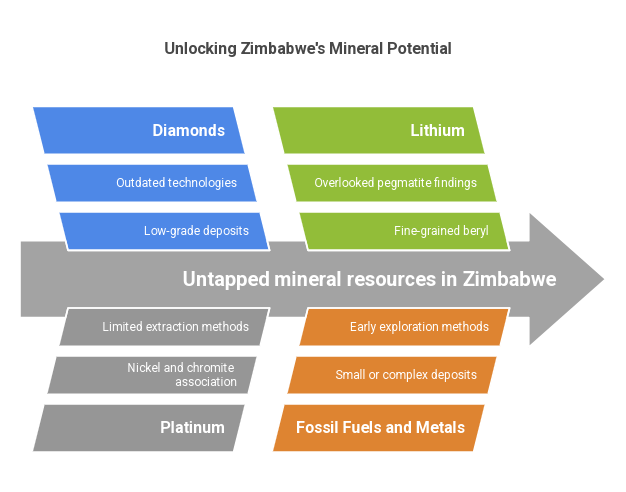

3. Discoveries Not Exploited and Future Potential

• Diamonds:
• Challenges:
• Low-grade kimberlite and alluvial deposits were not economically viable with past technologies.
• Future Focus:
• Modern techniques, including high-resolution geophysical surveys and enhanced processing, could re-evaluate areas in the Umkondo Group.
• Platinum:
• Challenges:
• Despite occurrences with nickel and chromite in the Great Dyke, platinum was not pursued as a primary resource.
• Future Focus:
• The Great Dyke remains a promising target for PGMs, pending advancements in extraction technologies.
• Lithium:
• Challenges:
• Early pegmatite findings, though promising, were overlooked due to fine-grained beryl and limited technology.
• Future Focus:
• Areas with zoned pegmatites, especially in the northern regions, warrant further exploration with modern techniques.
• Antimony:
• Challenges:
• Antimony-gold associations were historically considered uneconomic.
• Future Focus:
• Re-assessment of known zones in the Midlands Gold Belt could unlock new potential.
• Natural Gas and Oil:
• Challenges:
• Past exploration yielded no commercially viable discoveries.
• Future Focus:
• The Sebungwe Coalfield and associated sedimentary basins might benefit from advanced seismic and drilling technologies.
• Other Fossil Fuels and Metals:
• Challenges:
• Many deposits (e.g., for nickel, copper, and tungsten) were either too small or complex for earlier methods.
• Future Focus:
• Re-investigation using integrated geophysical, geochemical, and drilling methods could unlock substantial resources.

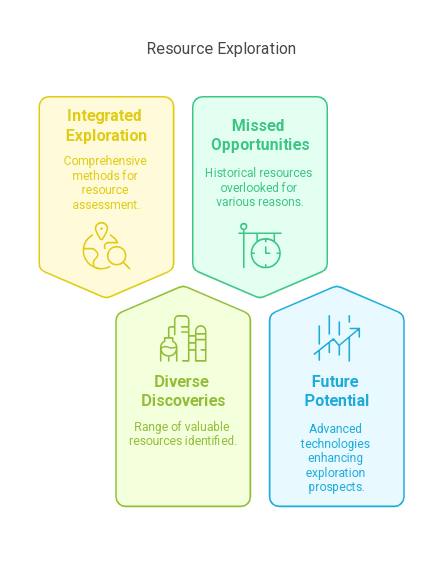

4. In Summary

• Integrated Exploration:
• EPOs in Zimbabwe combined geological mapping, geochemical sampling, geophysical surveys, and various drilling methods to build a comprehensive picture of the resource potential.
• Diverse Discoveries:
• Discoveries span diamonds, PGMs, lithium, antimony, and fossil fuels, as well as a host of base and precious metals.
• Missed Opportunities:
• Many resources were not exploited historically due to low grades, economic constraints, or technological limitations—areas now ripe for re-assessment with modern techniques.
• Future Potential:
• The continued integration of advanced technologies (e.g., UAV geophysics, machine learning analytics) promises to unlock new resources, providing a robust framework for future exploration.

This comprehensive synthesis showcases how decades of exploration under EPOs have uncovered a vast and varied mineral resource base in Zimbabwe. By combining traditional methods with cutting-edge technologies, there remains significant untapped potential across multiple commodities.

References:

(General geological context and historical production data for Zimbabwe)

(Regional structural studies and modern exploration techniques)

This in-depth analysis not only clarifies the extensive exploration efforts undertaken under Zimbabwe’s EPOs but also highlights the enduring potential for discovery and development through renewed, technologically advanced exploration.
