LED Circle Suspended

Description

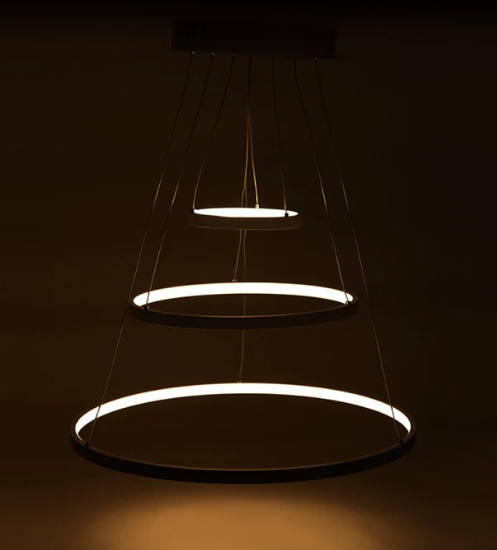

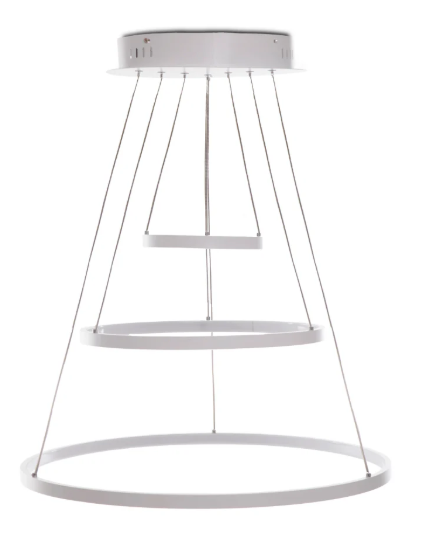

The CIRCLE LED suspended luminaire consists of three circular LED rings with diameters of 600 mm, 400 mm, and 200 mm, mounted on a ceiling surface base. The fixture uses SMD 2835 LEDs and emits natural white light (4200 K) through an opal diffuser, providing uniform and efficient illumination. The body is made of aluminum and polycarbonate with a white finish. It is suitable for modern indoor environments such as offices, shops, or residences. The product offers high energy efficiency, long service life, and complies with the main international safety and quality standards.

Technical Features

• Product Code:LM-085 HO-SUS-CI-96W-03-W
• Lamp Type: Suspension
• Style: Modern
• Ring Diameters: 600 mm, 400 mm, 200 mm
• Material: Aluminum and polycarbonate
• Diffuser: Opal/milky
• Color: White
• Color Temperature: 4200 K (natural white)
• Power: 96 W
• Luminous Flux: 7200 lm
• Luminous Efficacy: 75 lm/W
• LEDs: SMD 2835
• Number of LEDs: 180
• Beam Angle: 120°
• Color Rendering Index (CRI): ≥80
• R9 Index: 6
• Power Factor: 0.9
• Supply Voltage: 220-245 V AC
• Frequency: 50/60 Hz
• Driver Output: DC 72-96 V
• Energy Class: G
• Energy Consumption: 96 kWh/1000 h
• Estimated Lifetime: 40,000 h
• Switching Cycles: 100,000
• Start-up Time: 0.1 s
• Halogen Equivalent: 510 W
• Protection Rating: IP20
• Operating Temperature Range: -20°C to +40°C
• Weight: 1800 g
• Installation: Terminal connection, surface ceiling mounting
• Certifications and Standards: CE, RoHS, ISO9001, EN 55015:2009, EN 61547:2009, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 60598-2-2:2012, EN 60598-1:2009, EN 1122B:2001
• Chromaticity (x, y): 0.322 / 0.349
