LWH (Length Width Heigth) Setup Blocks - PDF Plan

LWH (Length Width Height) Setup Blocks – Dimension PDF

Achieve faster, more accurate woodworking setups with this LWH Setup Blocks Dimension PDF from Handmade Marvels.

These setup blocks are designed to replace repeated measurements with a measuring tape or ruler, helping woodworkers save time and improve consistency. Simply use the blocks as precision spacers, height gauges, depth setters, or thickness references during project setup.

Ideal for workshops, cabinetry, furniture making, CNC work, router table setups, and general woodworking tasks.

Common Uses

• Drawer slide installation
• Router bit depth adjustment
• Saw blade height setup
• Thickness measurement between two objects
• Fence and jig setup
• Repeatable woodworking measurements
• Precision spacing and alignment

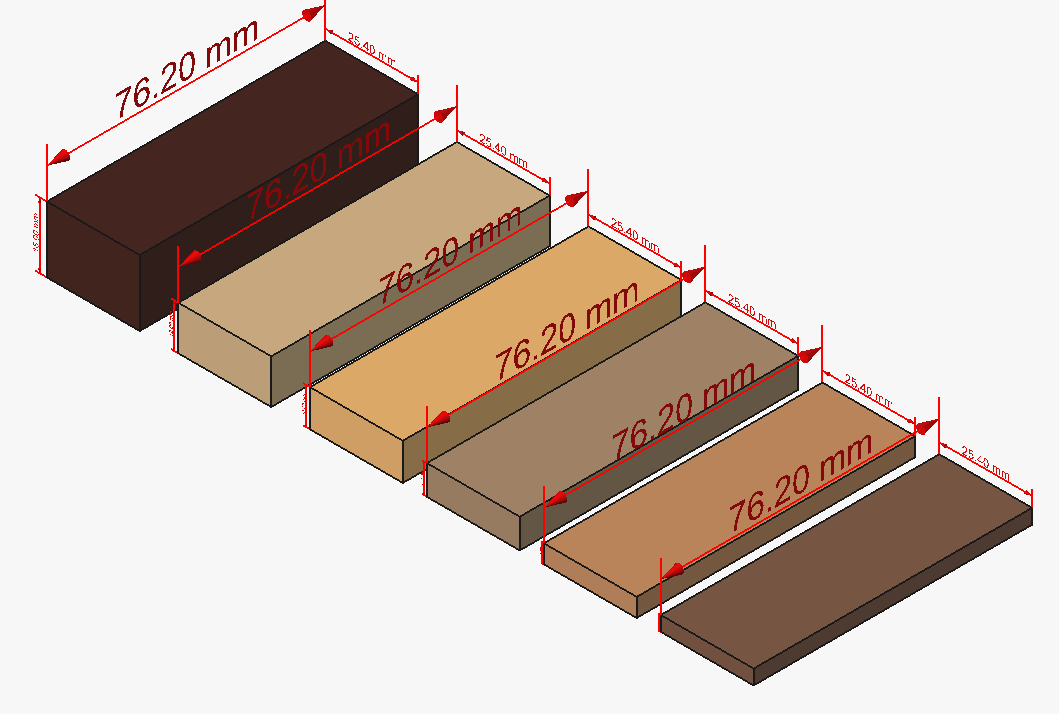

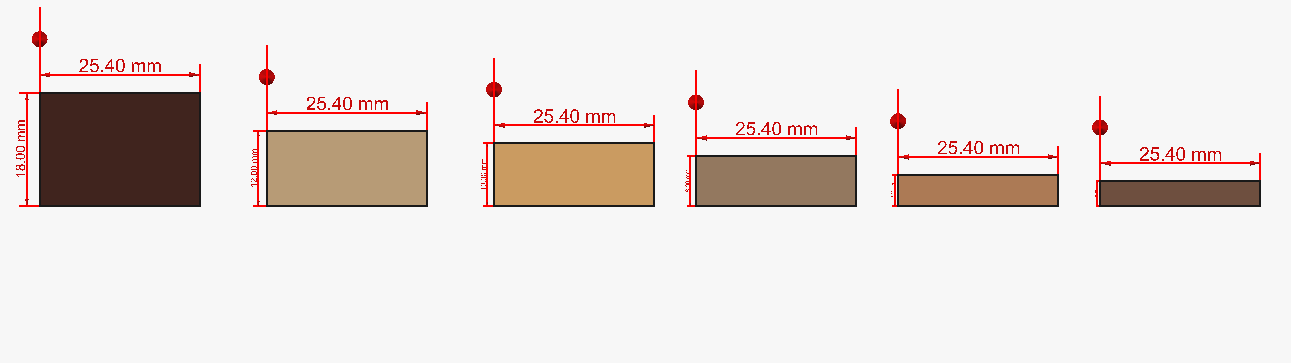

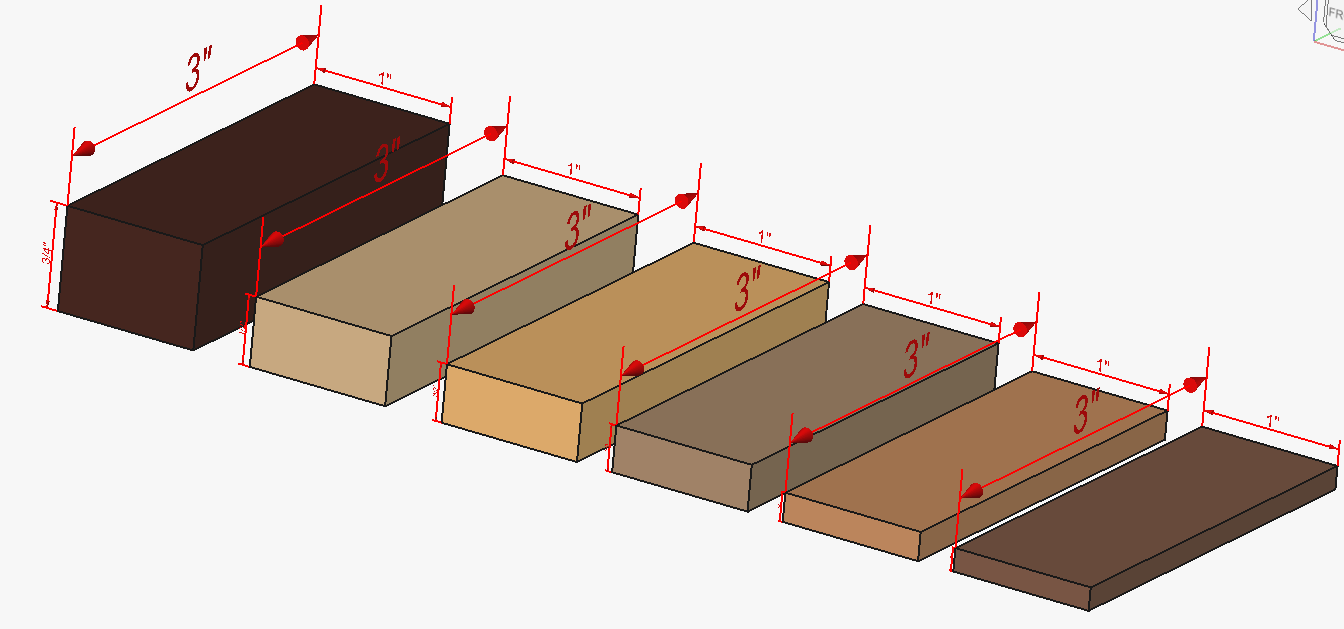

Block Dimensions

Fixed Size:

• Length: 76.20 mm (3")
• Width: 25.40 mm (1")

Thickness Variations:

• 18 mm (3/4") × 4 pieces
• 12 mm (1/2") × 4 pieces
• 10 mm (3/8") × 4 pieces
• 8 mm (5/16") × 4 pieces
• 5 mm (1/4") × 4 pieces
• 4 mm (1/8") × 4 pieces

Total Quantity: 24 Setup Blocks

What You'll Receive

• Detailed dimension PDF
• Complete measurements and specifications
• Organised layout for easy fabrication
• Ready-to-build reference document

Benefits

✔ Eliminates repetitive measuring

✔ Improves setup accuracy

✔ Speeds up workshop tasks

✔ Easy to fabricate from plywood

✔ Suitable for beginners and professionals

✔ Cost-effective workshop accessory

Perfect For

• Woodworkers
• Cabinet makers
• Furniture builders
• DIY enthusiasts
• Workshop owners
• Students and makers

This is a digital download product. No physical setup blocks will be shipped.

Build your own set of precision setup blocks and make every woodworking setup faster, easier, and more accurate with this practical workshop accessory from Handmade Marvels.
