V-877 Messi| Modern House Plan with swimming pool and 2 car port 4bedroom + 5bathroom, one story house, with gable and terrace roof

V-877 Messi

House Description:

Bedroom:   4 Nos.

Bathroom:   5.5 Nos.

Living + Visitors:1 +1 No.

Kitchen:        1 No.

Dinning:        1 No.

Porch, Balcony: 1 +1 No.

Pergola:         2 Nos.

Pantry, Laundry: 1 +1 No.

Terrace roof:     1 No.

-----------------------

Footprint:

WxL: 51 x 72 Feet

WxL: 15.5 x 22 Meter

Total Area: 280 M2 = 3015 F2

-----------------------

Drawing Description:

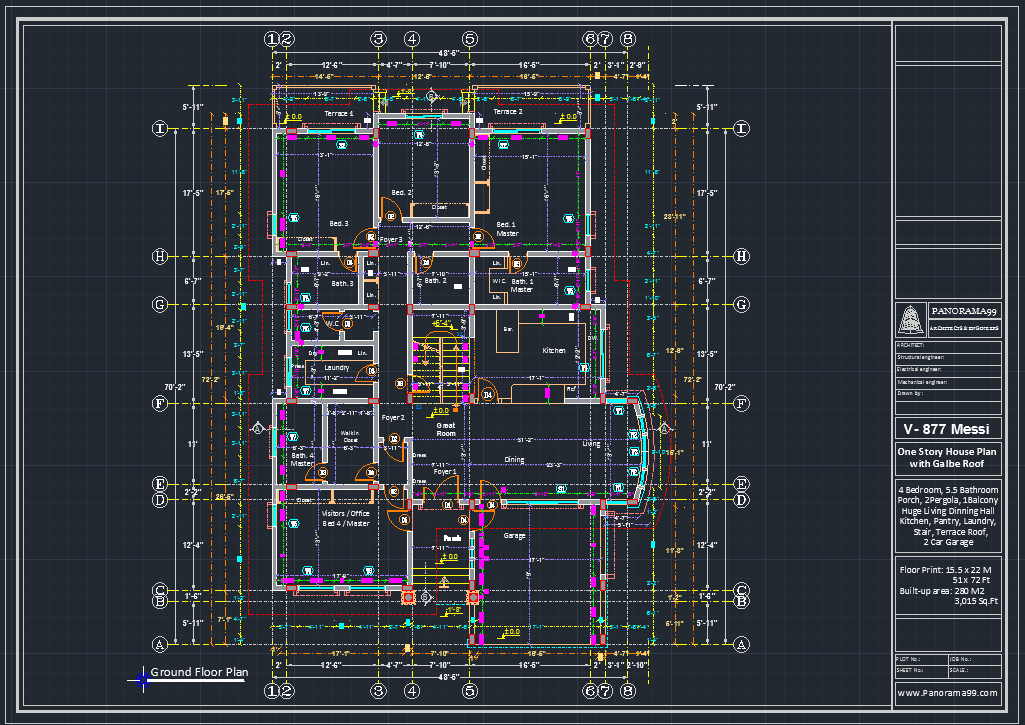

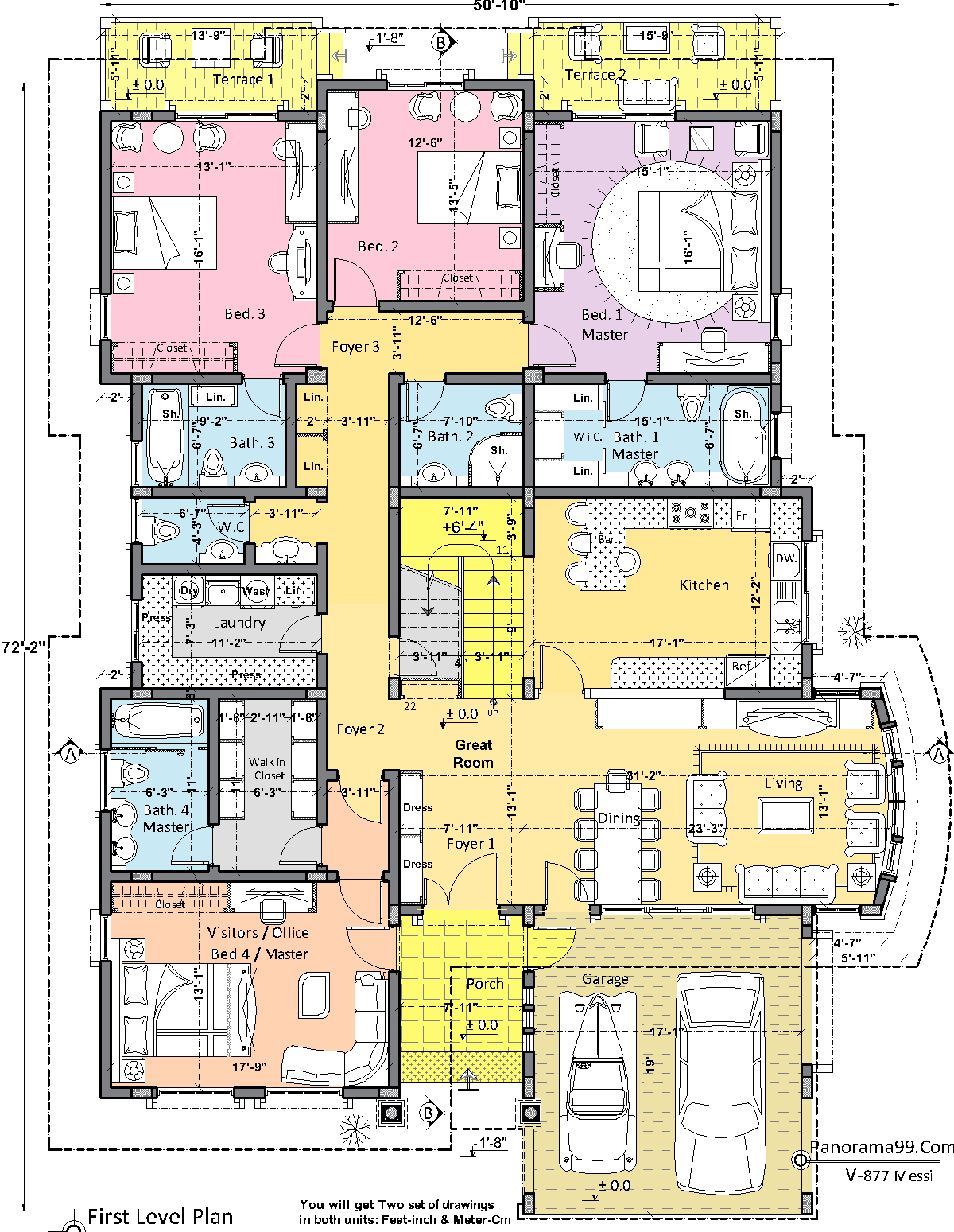

Floor Plan:      2 Nos.

Furniture's Layout: 2 Nos.

Elevation Plan:  4 Nos.

Section Plan:      2 Nos.

Footing Plan:      1 No.

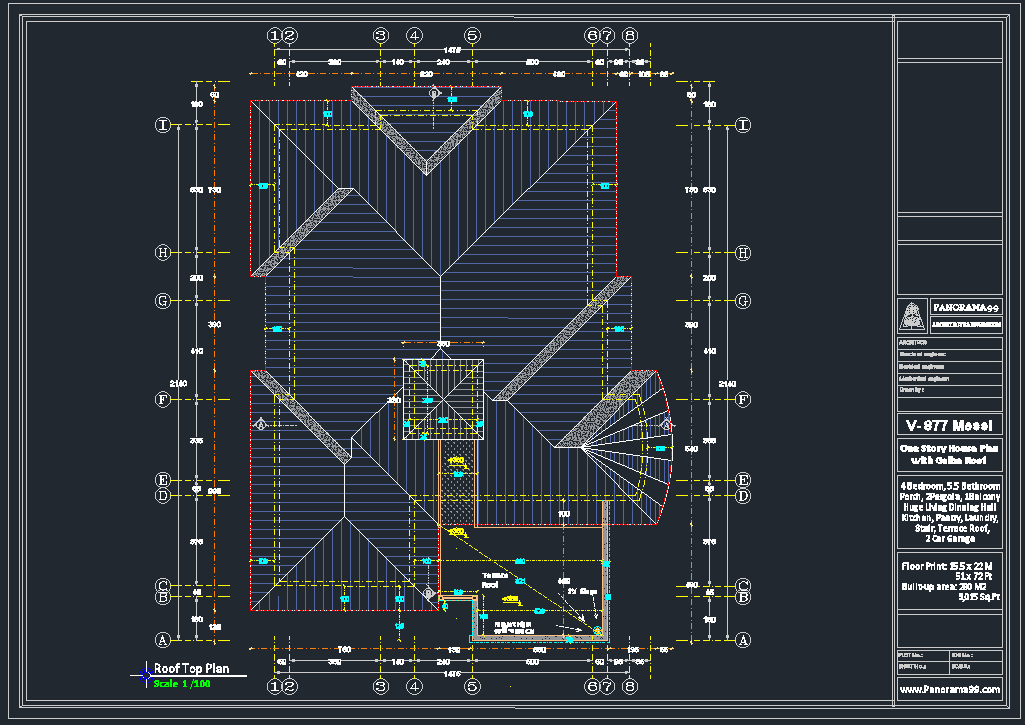

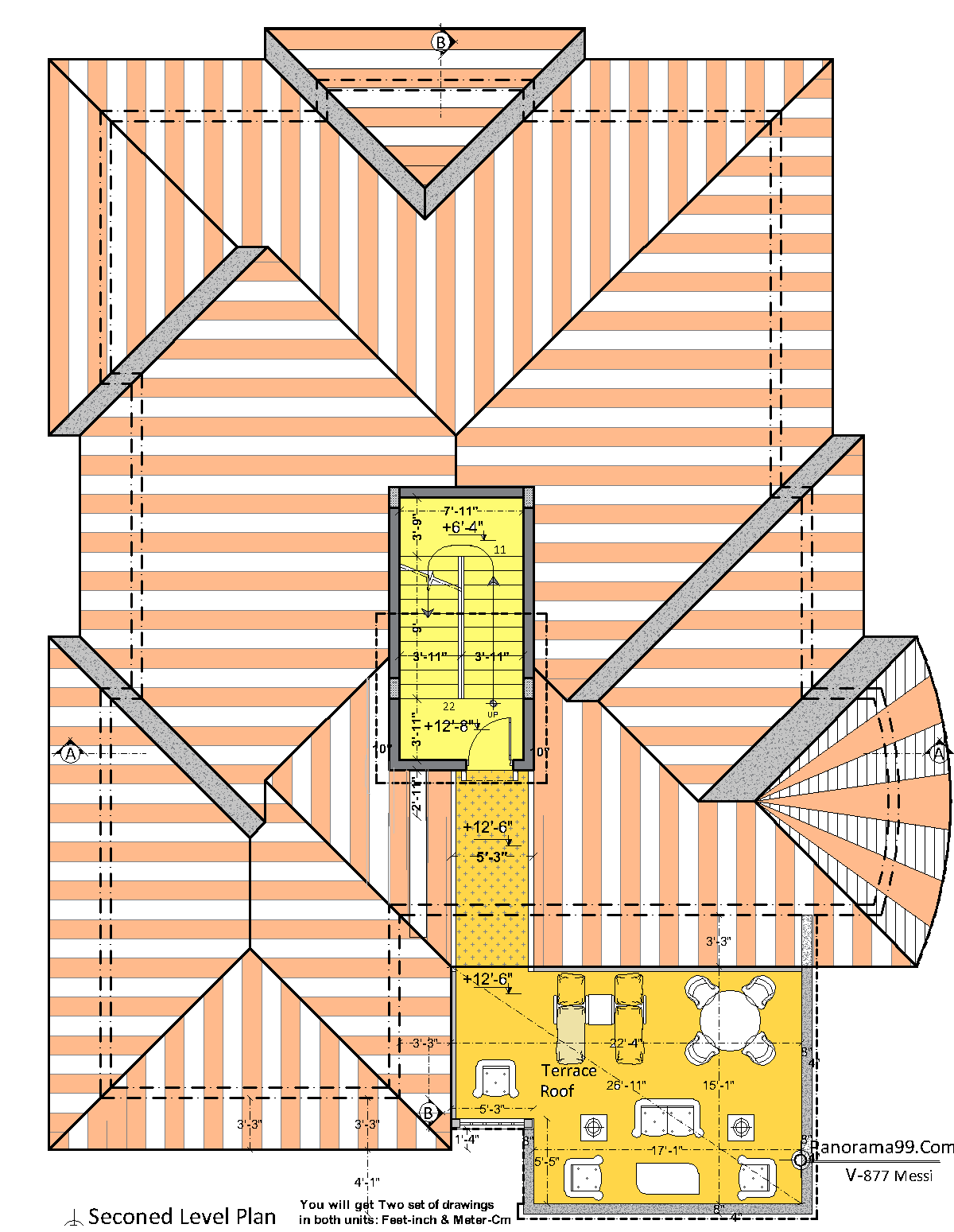

Roof Top Plan:   1 No.

Roof Locatiob Plan 1 No.

D & W Schedule :   1 No.

Details:           1 No.

S. Pool Concept:   1 No.

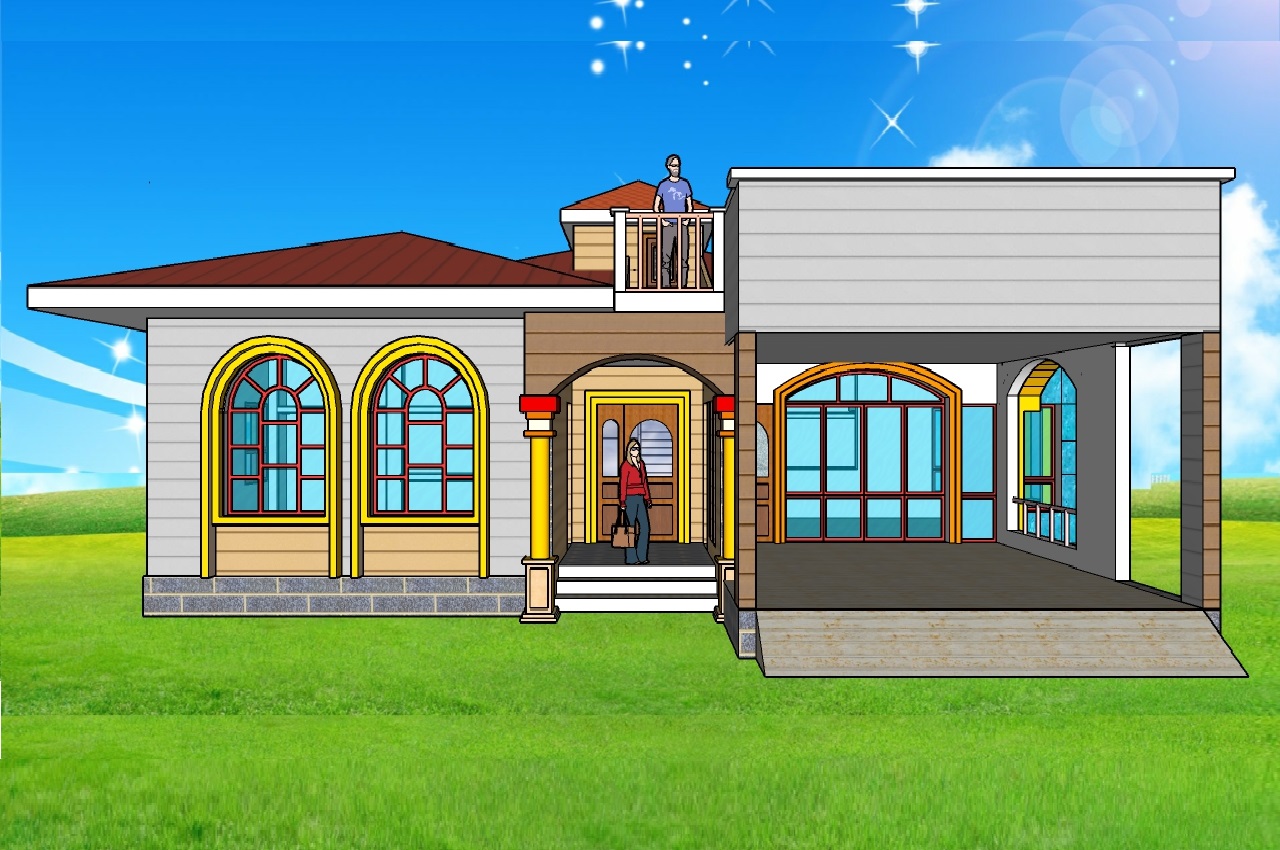

3D Rendering:   6 Nos.

-----------------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, and Nothing will be sent by post.

2- You will get Two Sets of Detailed Drawings as PDF file, in Both units (Feet - inch and Meter-Cm)
