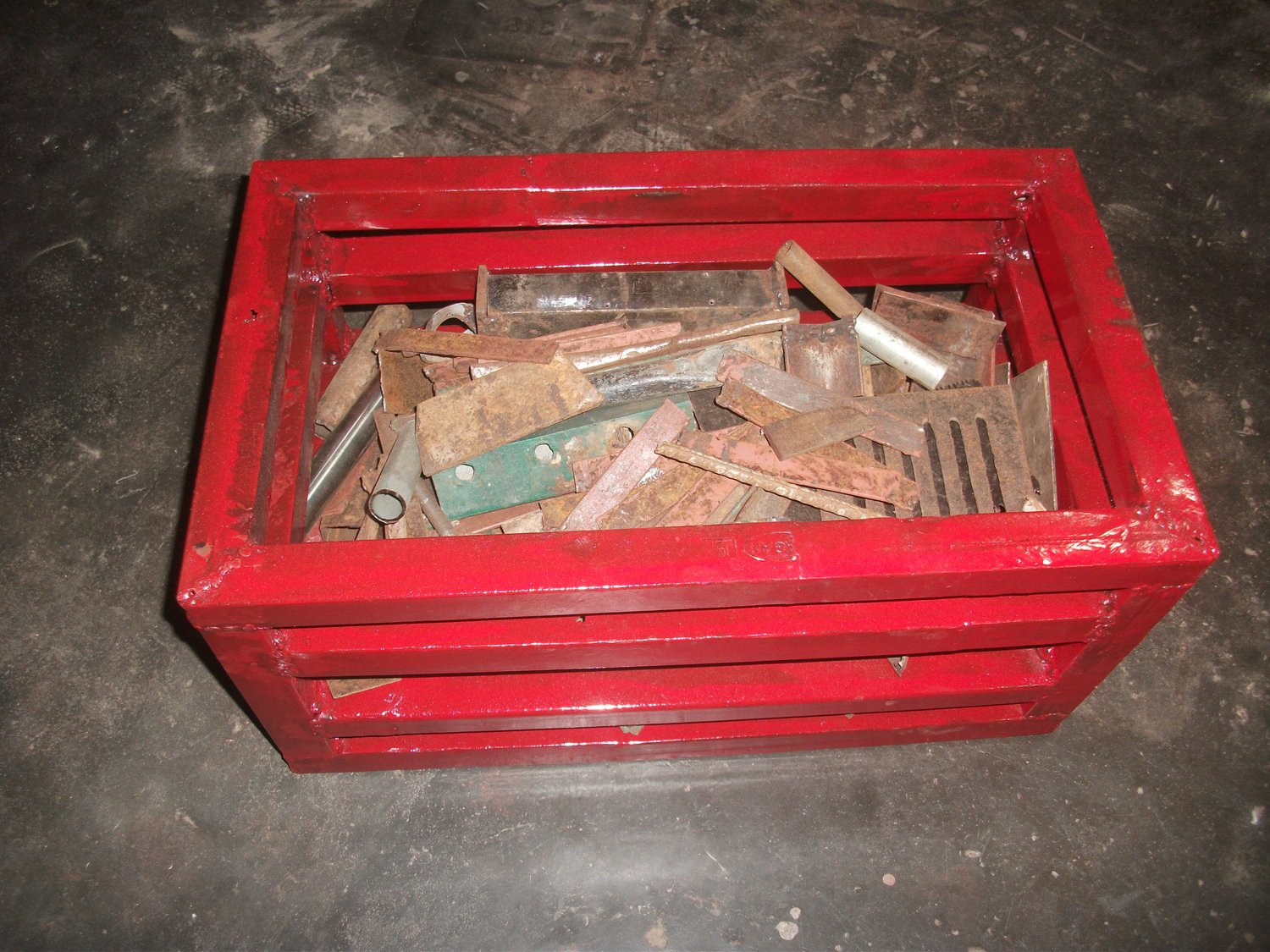

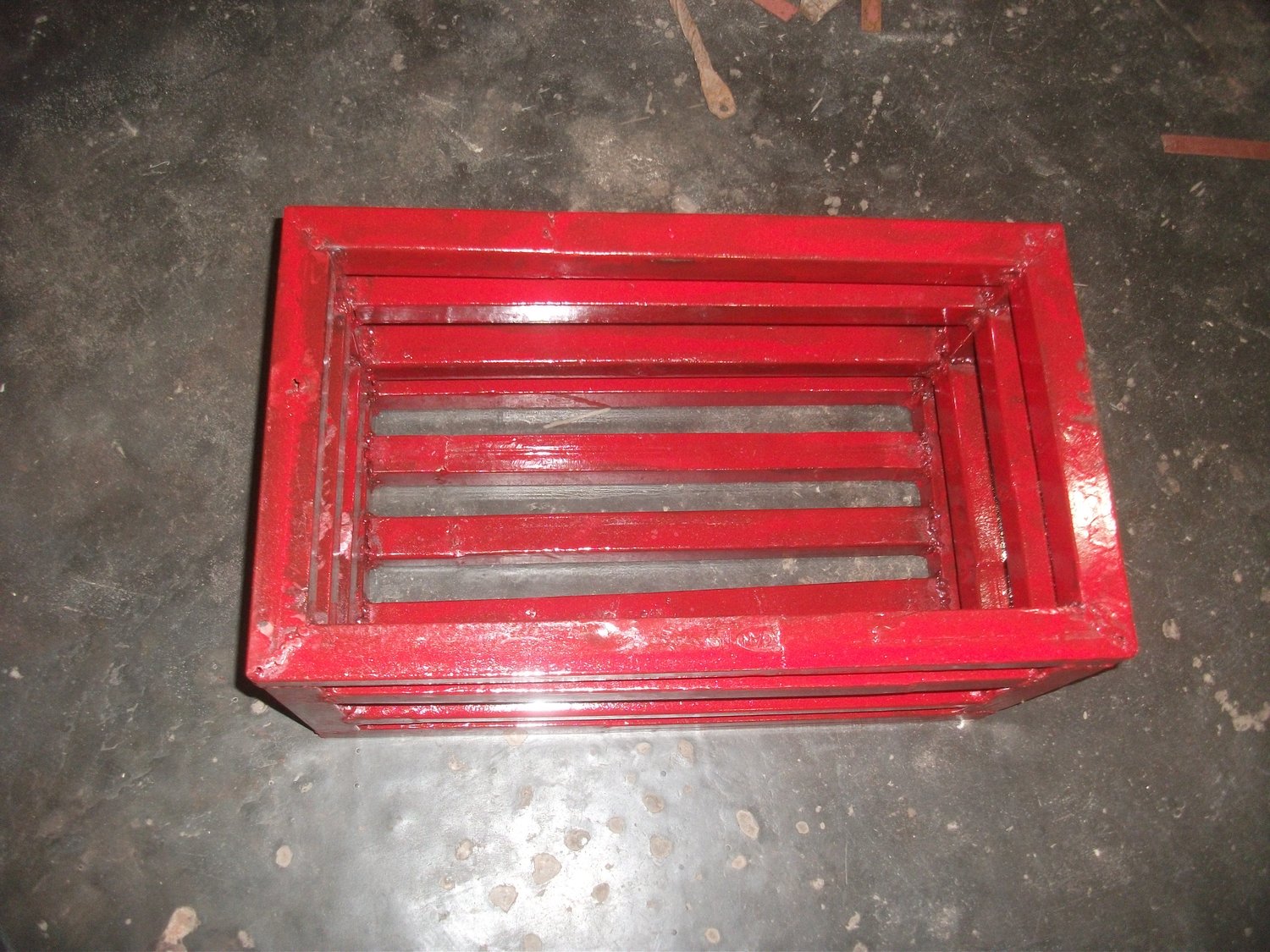

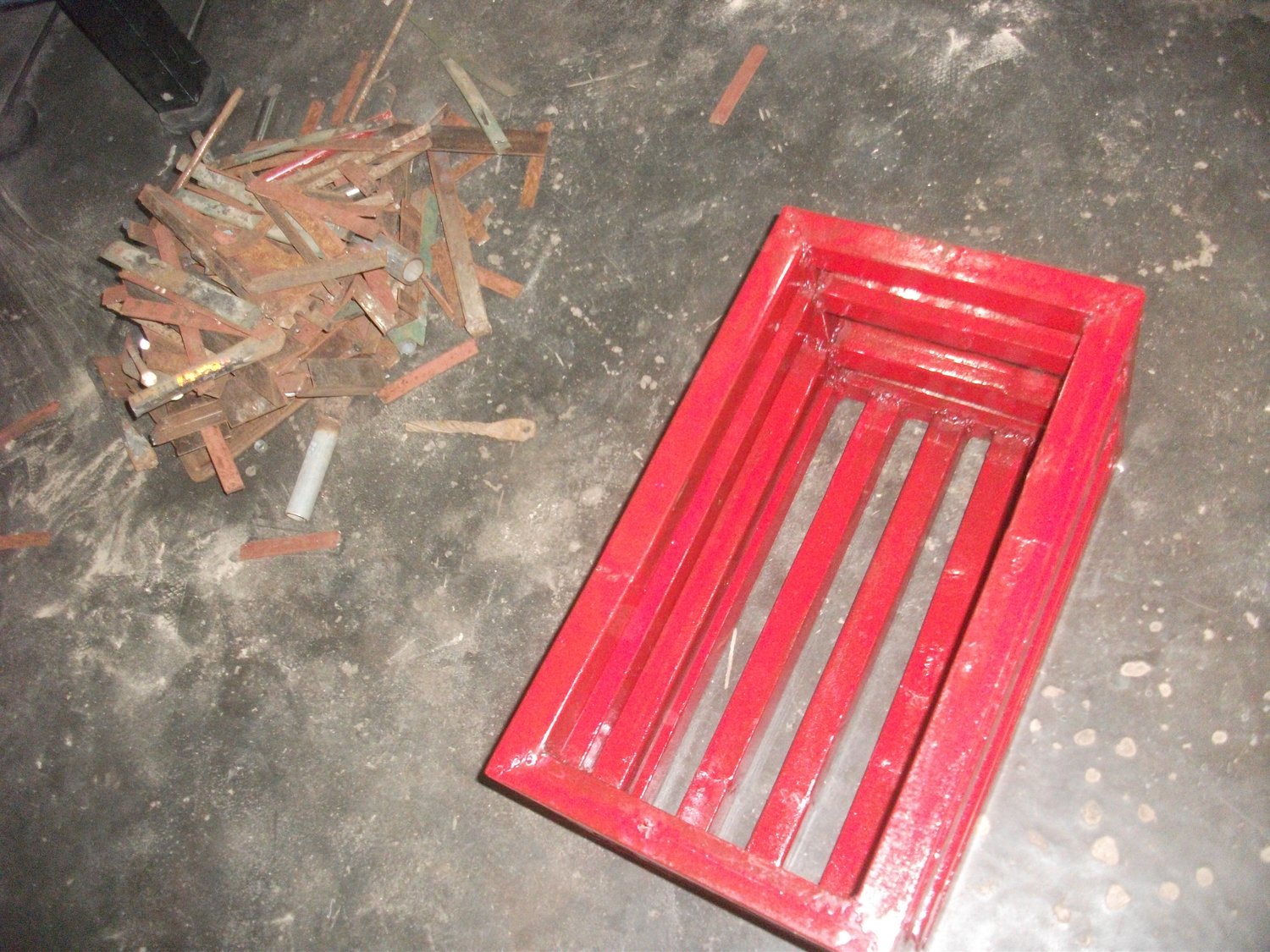

Scrap Metal Storage Crate – Free PDF Measurement Plan

Keep your workshop organized with this sturdy Scrap Metal Storage Crate, designed specifically for storing small and medium-sized scrap metal pieces. Built using 1-inch square steel pipes, this crate is simple to fabricate, durable, and ideal for metalworking workshops, fabrication shops, garages, and DIY enthusiasts.

This free downloadable PDF provides the measurements needed to build the crate. It is intended for makers who want a practical storage solution to keep leftover metal pieces neatly organized and easily accessible.

Finished Dimensions

Imperial

• Length: 20 in
• Width: 11.5 in
• Height: 9.5 in

Metric

• Length: 508 mm
• Width: 292.1 mm
• Height: 241.3 mm

Material

• 1-inch square steel pipe (25.4 mm)

PDF Includes

• Overall finished dimensions
• Individual cut measurements
• Easy-to-read measurement layout
• Suitable for fabrication and workshop use

Skill Level

Beginner to Intermediate

Digital Download

This is a digital PDF download only. No physical product will be shipped. After completing the checkout process, you can instantly download the PDF and start building your own scrap metal storage crate.

Perfect For

• Metal fabrication workshops
• Home garages
• Welding shops
• DIY makers
• Organizing scrap steel and metal offcuts

Price: Free

Download this free measurement plan and build a durable storage crate to keep your scrap metal organized, save workshop space, and make valuable offcuts easy to find whenever you need them.

License: This free PDF is for personal use only. You may build the project for yourself, but the PDF may not be redistributed, resold, or uploaded to other websites without permission.
