DIY Lumber Rack – Free PDF Measurement Plan

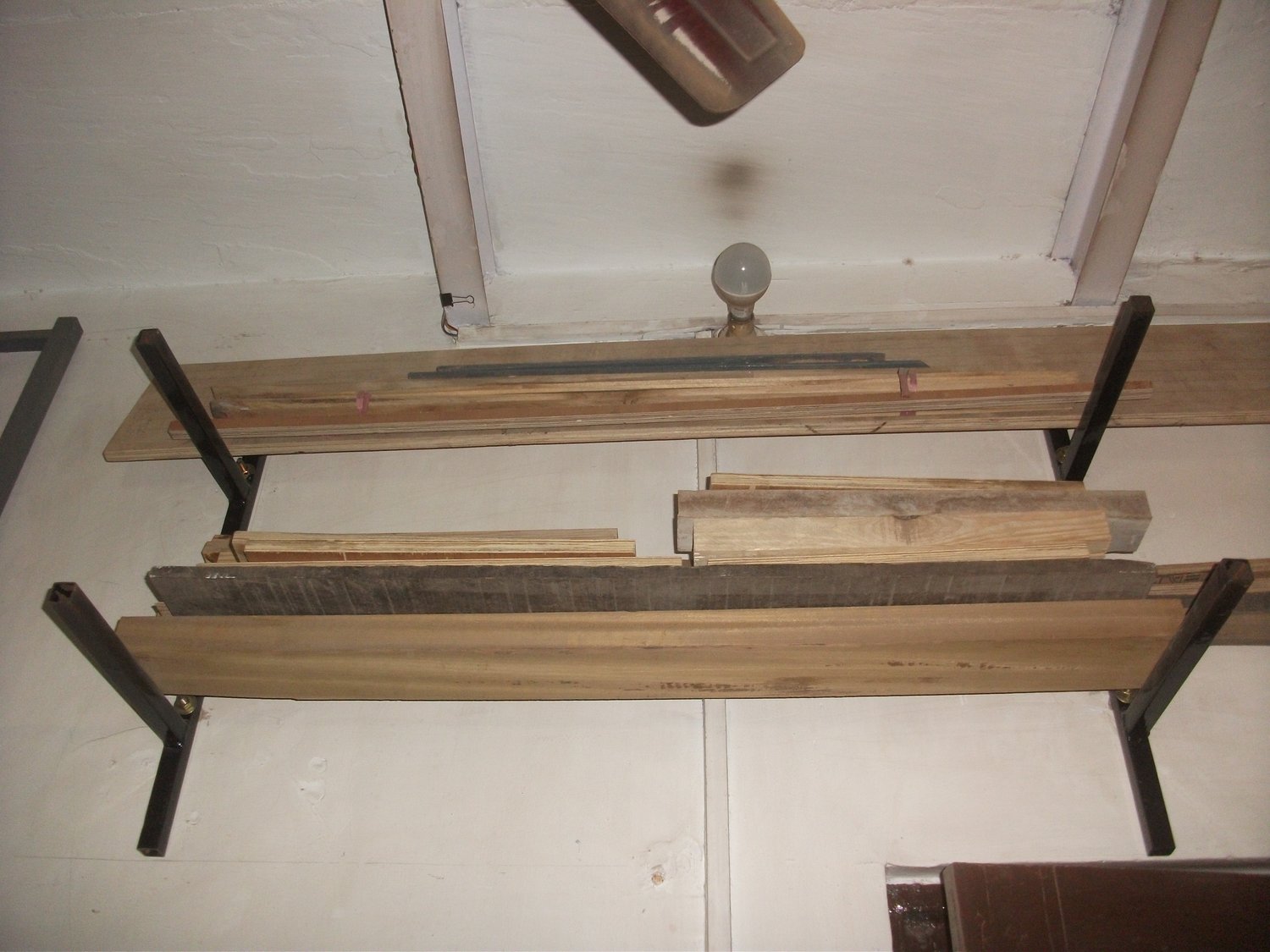

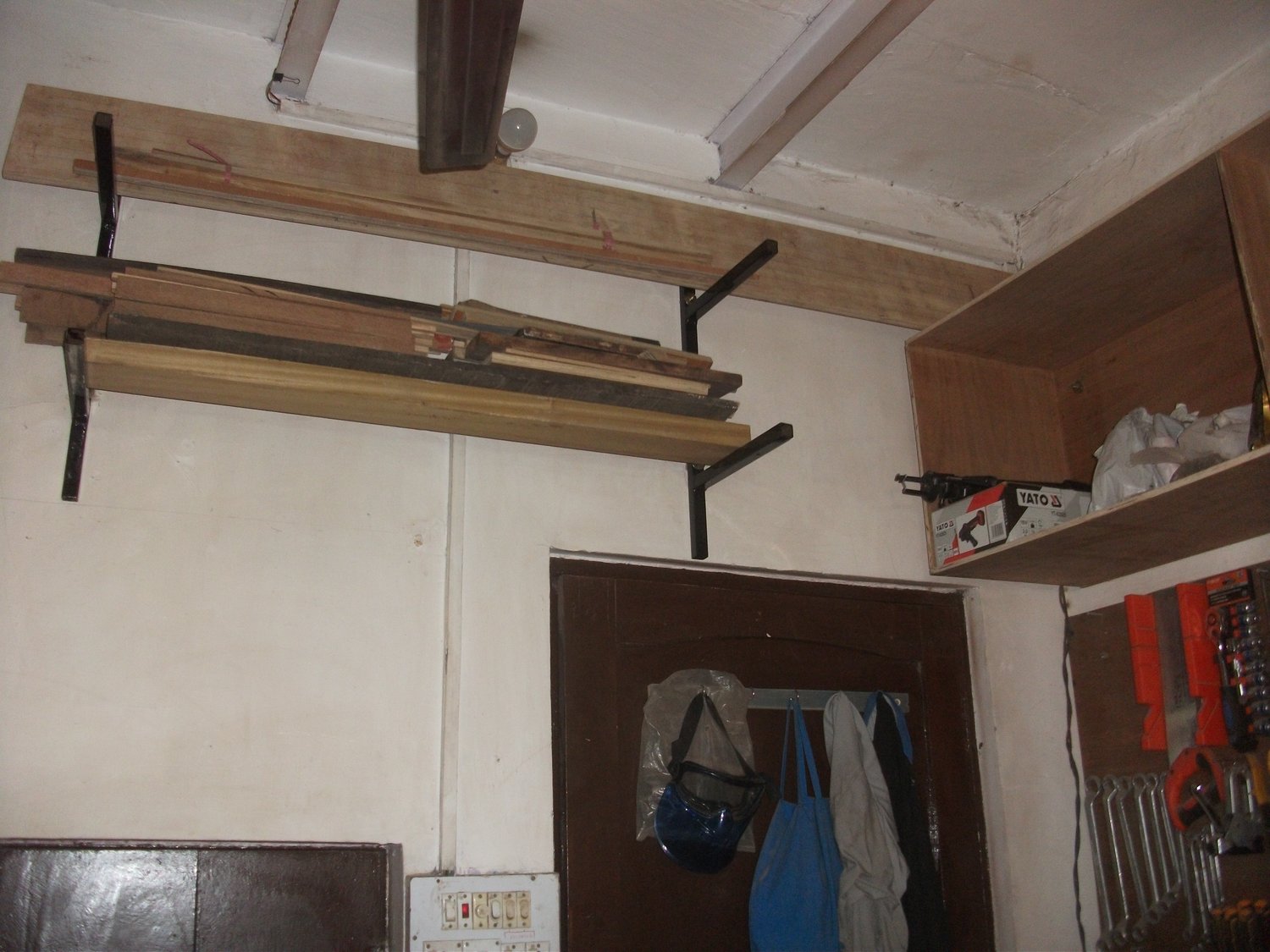

Keep your workshop clean, organized, and efficient with this FREE downloadable PDF measurement plan for a DIY Lumber Rack. Designed to be fabricated from 1-inch square steel pipe, this sturdy rack provides a practical solution for storing lumber, plywood offcuts, and long wooden boards in one dedicated place.

If your workshop is cluttered with wood pieces scattered around, this project will help you maximize storage space, improve accessibility, and keep your materials neatly organized. The rack is simple to build, durable, and suitable for both home workshops and professional woodworking spaces.

Finished Dimensions

Imperial

• Length: 28 in
• Width: 13 in
• Height: 1 in

Metric

• Length: 711.2 mm
• Width: 330.2 mm
• Height: 25.4 mm

Material

• 1-inch (25.4 mm) square steel pipe

PDF Includes

• Overall finished dimensions
• Individual cut measurements
• Easy-to-read fabrication layout
• Reference measurements for accurate assembly

Skill Level

Beginner to Intermediate

Perfect For

• Home woodworking workshops
• Professional woodworking shops
• Garage storage
• Organizing lumber and timber
• Storing plywood offcuts
• DIY workshop organization

Why Build This Lumber Rack?

• Organizes lumber in one convenient location
• Keeps boards off the floor and easy to access
• Helps maximize workshop storage space
• Strong steel construction for long-lasting durability
• Simple DIY fabrication project using common materials

Digital Download

This is a digital PDF download only. No physical product will be shipped. After completing the free checkout, you can instantly download the PDF measurement plan and start building your own DIY Lumber Rack.

License

This free PDF is provided for personal use only. You may build the project for yourself or your workshop. Redistribution, resale, or uploading of this PDF to other websites is not permitted without written permission.

Price: FREE

Download this free PDF measurement plan and build a durable DIY Lumber Rack to organize your lumber, reduce workshop clutter, and keep your wood stock neatly stored and ready for your next woodworking project.
