E-05 Timber Frame Wall / Block & Beam Ground Floor – Thermal Junction Detail & Psi-value Report

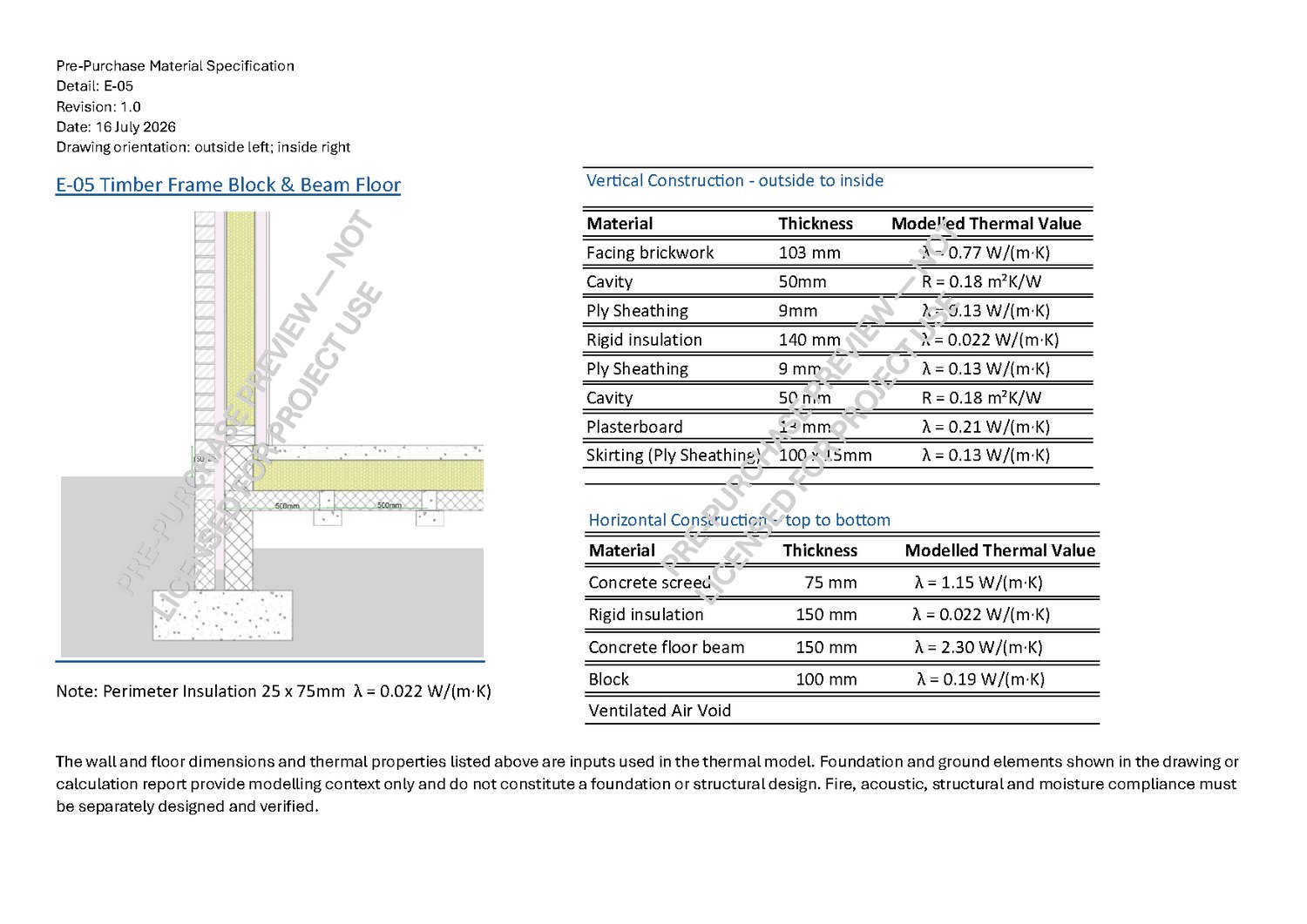

E-05 TIMBER FRAME WALL / BLOCK & BEAM GROUND FLOOR A licensed thermal-junction calculation for the junction between the timber-frame external wall and block-and-beam ground-floor construction shown in the pre-purchase material specification. CALCULATED RESULTS • Linear thermal transmittance (Psi-value): 0.160 W/(m·K) • Internal surface temperature factor (fRsi): 0.885 • Surface-condensation and mould-growth assessment: Low Risk against the critical fRsi of 0.75 SUPPLIED FILE One PDF containing the clean material specification, junction drawing, temperature distribution, calculation results, boundary conditions, materials list and calculated U-values. IMPORTANT The calculated results apply only where the proposed and as-built wall and floor construction matches the stated dimensions, materials, thermal properties and modelling assumptions. This is not a generic value for every E-05 junction. Foundation and ground elements shown in the drawing or calculation report provide modelling context only and do not constitute a foundation or structural design. Fire, acoustic, structural, waterproofing and moisture compliance are outside the scope of this thermal calculation and must be separately designed and verified. The purchaser is responsible for confirming suitability before using the calculated values in SAP, Building Regulations or other compliance assessments. LICENCE Purchase provides a single-project licence. The project name or reference and full site postcode must be entered during checkout. The report must not be resold, published, distributed or reused for another project. Purchase and use are subject to the Barlings KWA Terms of Sale & Single-Project Licence: https://payhip.com/barlingskwa/terms-of-sale-single-project-licence
