E-07 Concrete Separating Floor – Thermal Junction Detail & Psi-value Report

E-07 CONCRETE SEPARATING FLOOR

A licensed thermal-junction calculation for the junction between a concrete separating floor and the insulated masonry external-wall construction shown in the pre-purchase specification.

CALCULATED RESULTS

• Linear thermal transmittance (Ψ-value): 0.074 W/(m·K)

• Per-dwelling Ψ-value: 0.037 W/(m·K)

• Temperature factor (fRsi): 0.964

• Modelled element U-values: 0.186 W/(m²·K)

• Surface-condensation and mould-growth assessment: Low Risk under the stated assessment criteria

WHAT YOU WILL RECEIVE

• Two-page, high-resolution thermal-modelling report

• Junction drawing and temperature-distribution result

• Modelled materials, boundary conditions and effective lengths

• Ψ-value and fRsi results

• A single-project right to use the purchased report for the project identified during checkout

CHECK BEFORE PURCHASING

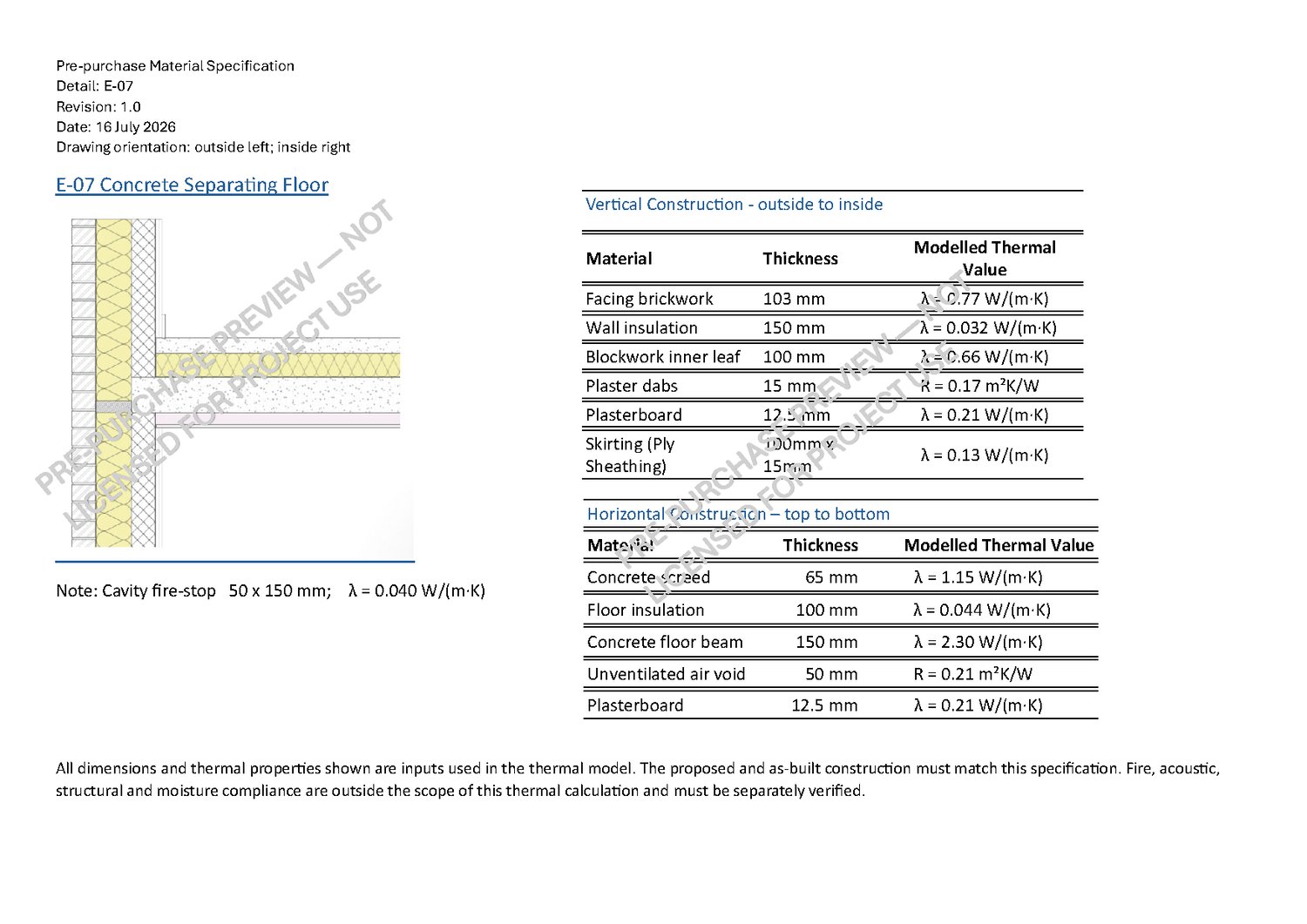

Review the watermarked pre-purchase material specification shown in the product images. The proposed and as-built junction must match the specified materials, thicknesses, thermal properties, dimensions, element U-values and construction arrangement.

This is not a generic value for every E-07 junction. Changes to the construction or model inputs may require a separate calculation.

SCOPE AND LIMITATIONS

The report covers thermal-bridging performance for the modelled junction and has been prepared in accordance with the calculation methodology stated in the report.

Fire, acoustic, structural, weatherproofing and general moisture compliance are outside the scope of this thermal calculation and must be separately designed and verified by the appropriate project specialists.

The purchaser is responsible for confirming that the report is suitable for the proposed project before using its calculated values in SAP, Building Regulations or other compliance assessments.

LICENCE

Purchase is for one project only—the project name or reference and site postcode must be entered during checkout. The report must not be resold, published, distributed or reused for another project.

Purchase and use are subject to the Barlings KWA Terms of Sale & Single-Project Licence.
