Wall-Mounted Plywood Cabinet with Sliding Doors – Free PDF Measurement Plan

Build a simple and practical Wall-Mounted Plywood Cabinet with Sliding Doors using this FREE downloadable PDF measurement plan. This DIY cabinet is designed to provide convenient storage while keeping the overall design simple and clean.

One of the unique features of this cabinet is its hardware-free sliding door system. No special door tracks, rollers, or other sliding-door hardware are required—the doors slide using a simple wooden construction, with screws used for assembly.

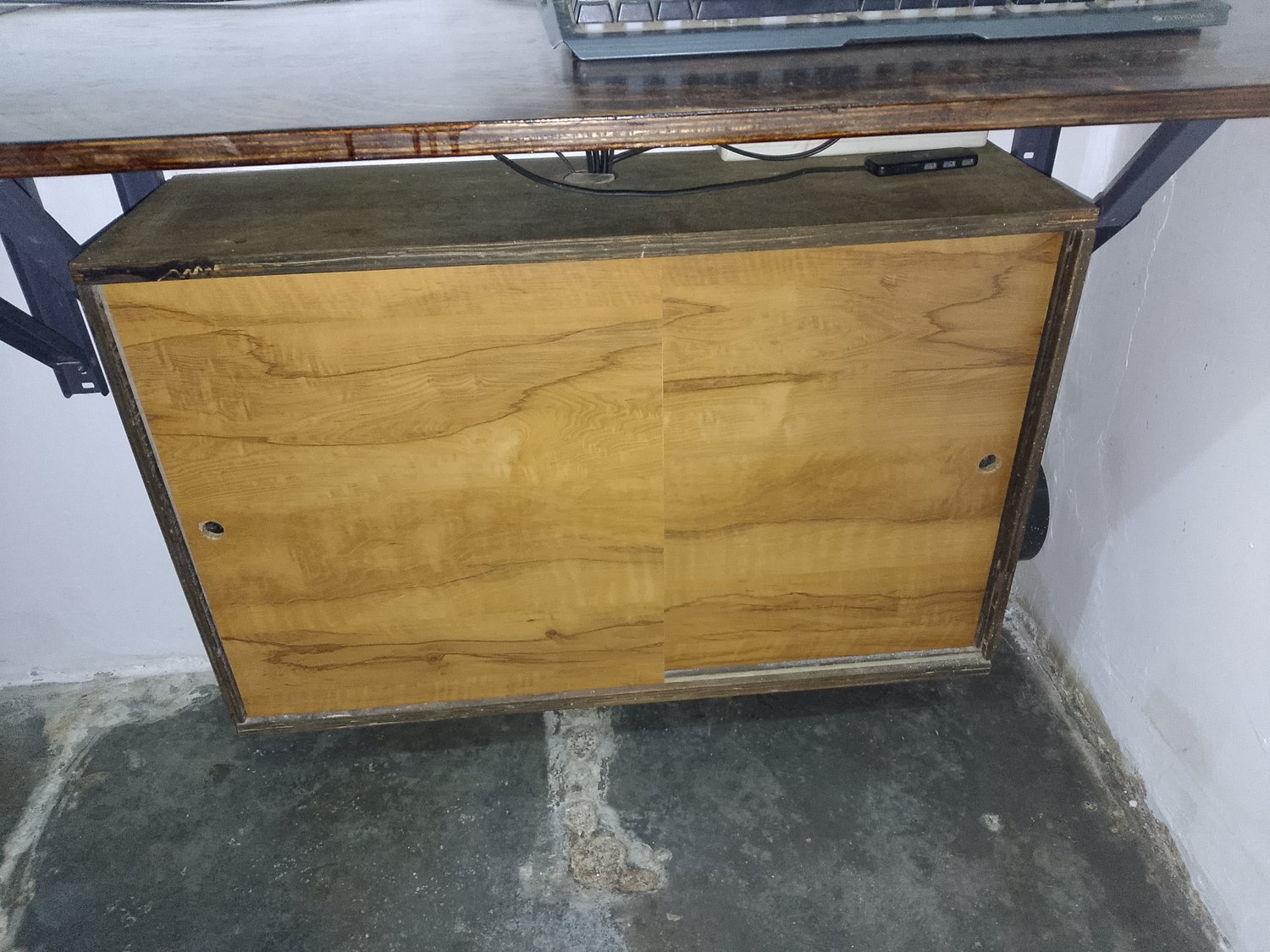

I built this cabinet to store some of my personal items, but the design can easily be adapted for use in a workshop, bedroom, office, kitchen, or other areas where additional wall-mounted storage is needed.

Finished Dimensions

Imperial

• Length: 33 in
• Width: 21 in
• Depth: 10 in

Metric

• Length: 838.2 mm
• Width: 533.4 mm
• Depth: 254 mm

Special Feature

Hardware-Free Sliding Doors

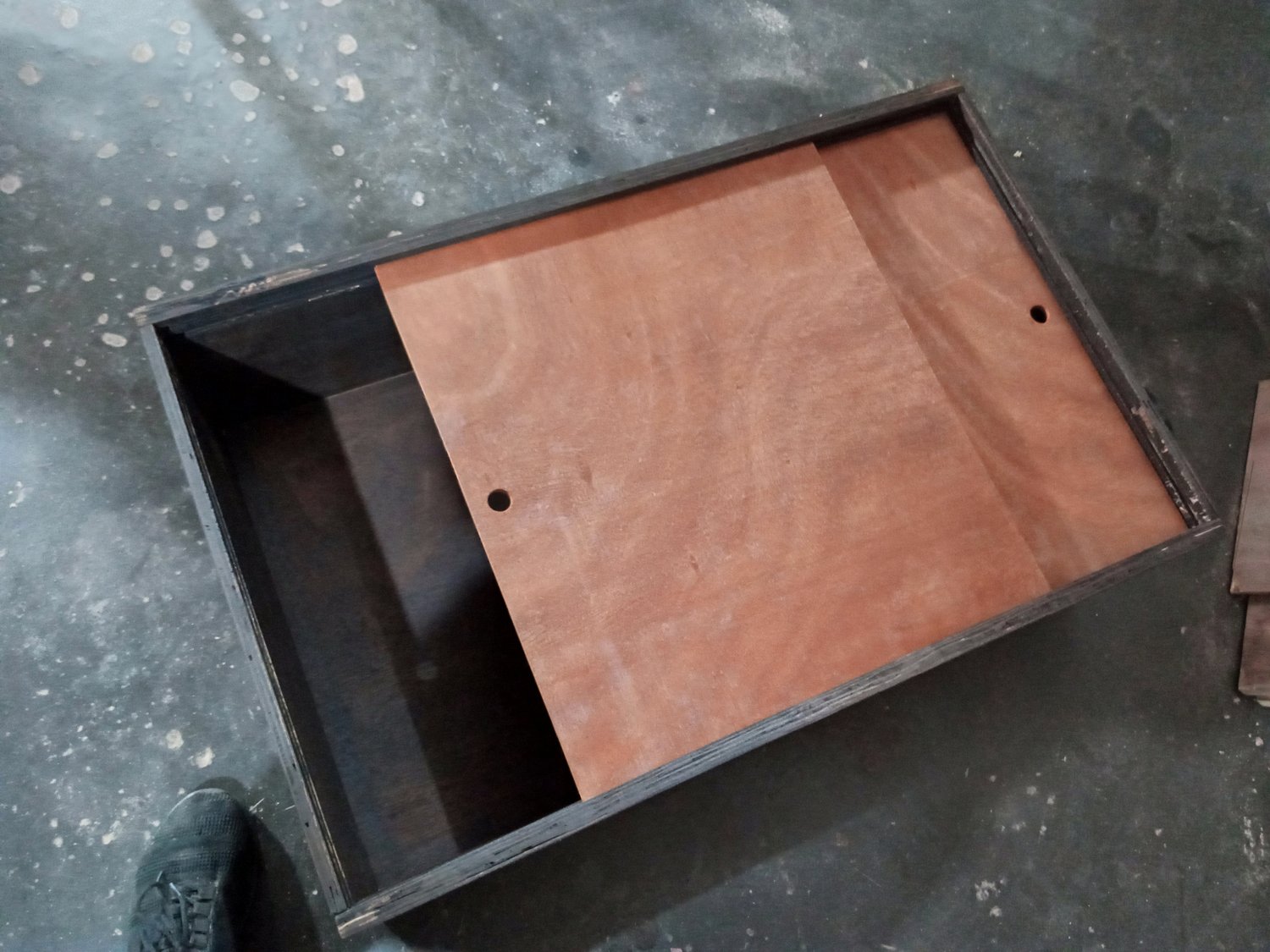

The sliding doors are designed without conventional cabinet door hardware. No metal tracks or rollers are required. The simple plywood construction allows the doors to slide within the cabinet, making this an economical and beginner-friendly DIY project.

PDF Includes

• Overall finished dimensions
• Individual component measurements
• Sliding door measurements
• Easy-to-read measurement layout
• Cutting reference dimensions
• Assembly reference

Skill Level

Beginner to Intermediate

Perfect For

• Bedroom storage
• Workshop organization
• Home office storage
• Garage storage
• Small personal items
• DIY furniture projects
• Plywood woodworking projects

Why Build This Cabinet?

• Simple plywood construction
• No expensive sliding-door hardware required
• Clean and minimal design
• Wall-mounted to save floor space
• Useful for organizing personal belongings
• Great DIY woodworking project
• Can be customized to suit your storage needs

Digital Download

This is a digital PDF measurement plan only. No physical product will be shipped. After completing the free checkout, you can instantly download the PDF and use the measurements to build your own wall-mounted plywood cabinet.

Important: Make sure the wall and mounting method are suitable for the cabinet's weight and intended load. Use appropriate anchors or fasteners for your wall type.

License

This free PDF is provided for personal use only. You are welcome to build the project for yourself or your workshop. Redistribution, resale, sharing, or uploading of the PDF to other websites is not permitted without written permission.

Price: FREE

Download this free measurement plan and build your own Wall-Mounted Plywood Cabinet with Sliding Doors—a simple, affordable, and practical storage solution made without complicated door hardware.
